Maintenance Manual (960-949) 3-13
Tests and Diagnostics

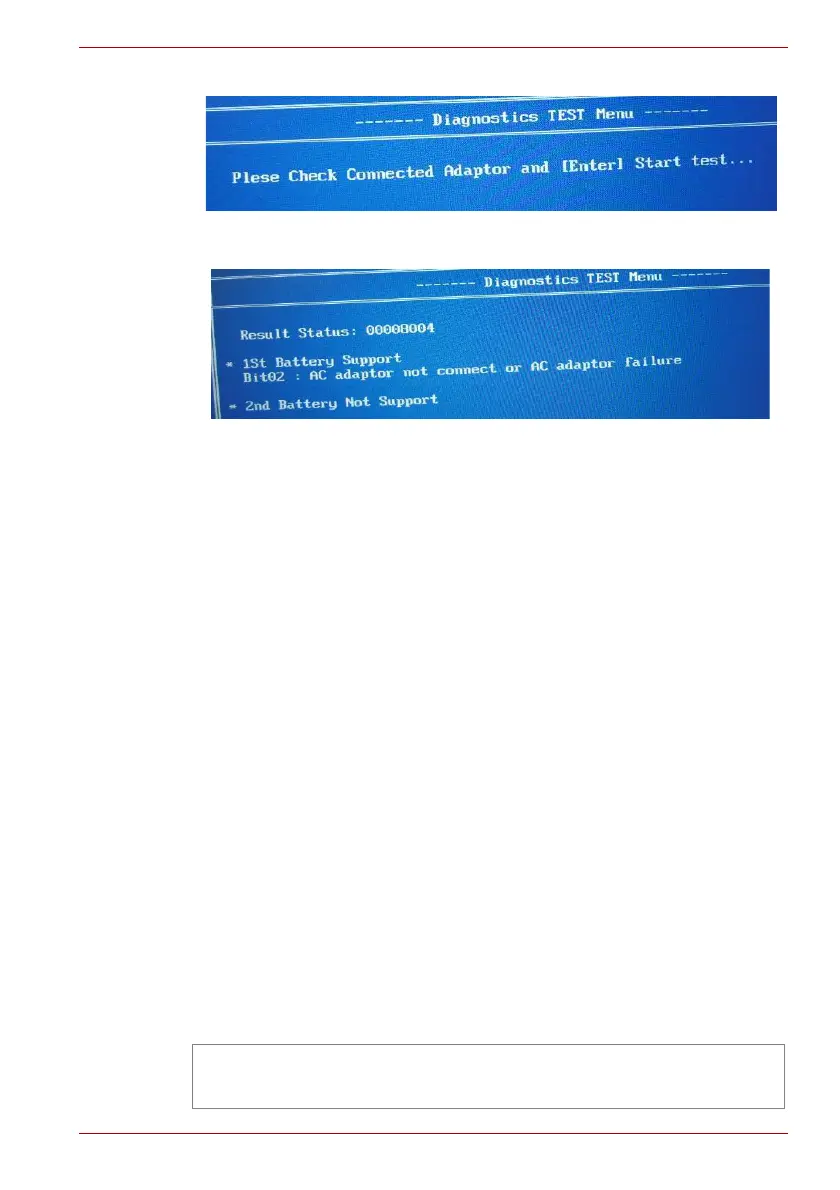

When this test program is selected, the following message appears.
The test starts by pressing ENTER. The test gets the charging status of the
mounted battery pack and displays the message.
To back to the main menu screen, press ENTER.
3.11 Fan Test
To execute the FAN Test, select 6 from the test program menu (Top Menu),
press Enter and follow the directions on the screen.
This subtest checks if FAN works properly.
FAN Low-speed ... Target Low: XXXX Rpm Result
Low: XXXX Rpm OK/NG
FAN High-speed... Target High: XXXX Rpm Result
High: XXXX Rpm OK/NG
OK appears in the display if the test ends without an error.
NG appears in the display if an error is found during the test.
To back to the main menu screen, press ENTER.
3.12 Log Utility
This function logs error information generated while a test is in progress
and stores the results in USB memory.
(file name: errorlog.txt)
1. Each test description
To execute the Log Utility, select LOG Utility from the test program
menu (Top Menu), and press ENTER. The following screen will appear.
Display examples
T-Name Pass Sts Address Write Read
HDD_001_12345678_1234_1234567812345678_00000000_55555555
RAM_001_12345678_1234_1000007812345678_00000000_55555555
