dynabook Portege X40L-K Series - Figure 4-4 Removing the Base Assembly (2); Figure 4-5 Removing the Base Assembly (3)

Maintenance Manual (960-949) 4-9
Replacement Procedures

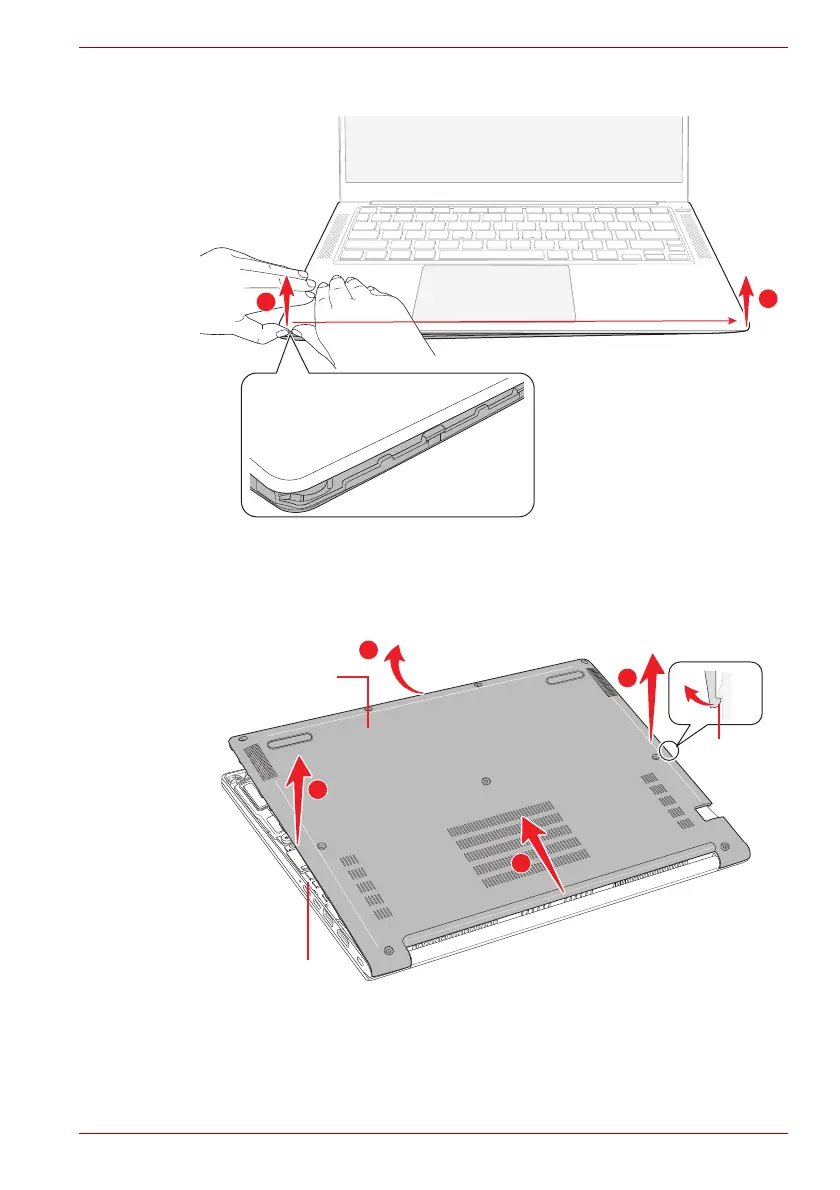

Figure 4-4 Removing the Base Assembly (2)
4. Turn the computer again and separate the Base Assembly and Cover
Assembly as shown in the figure below.
Figure 4-5 Removing the Base Assembly (3)
2
1
1
2
2
3
Latch
Cover Assembly
Base Assembly
