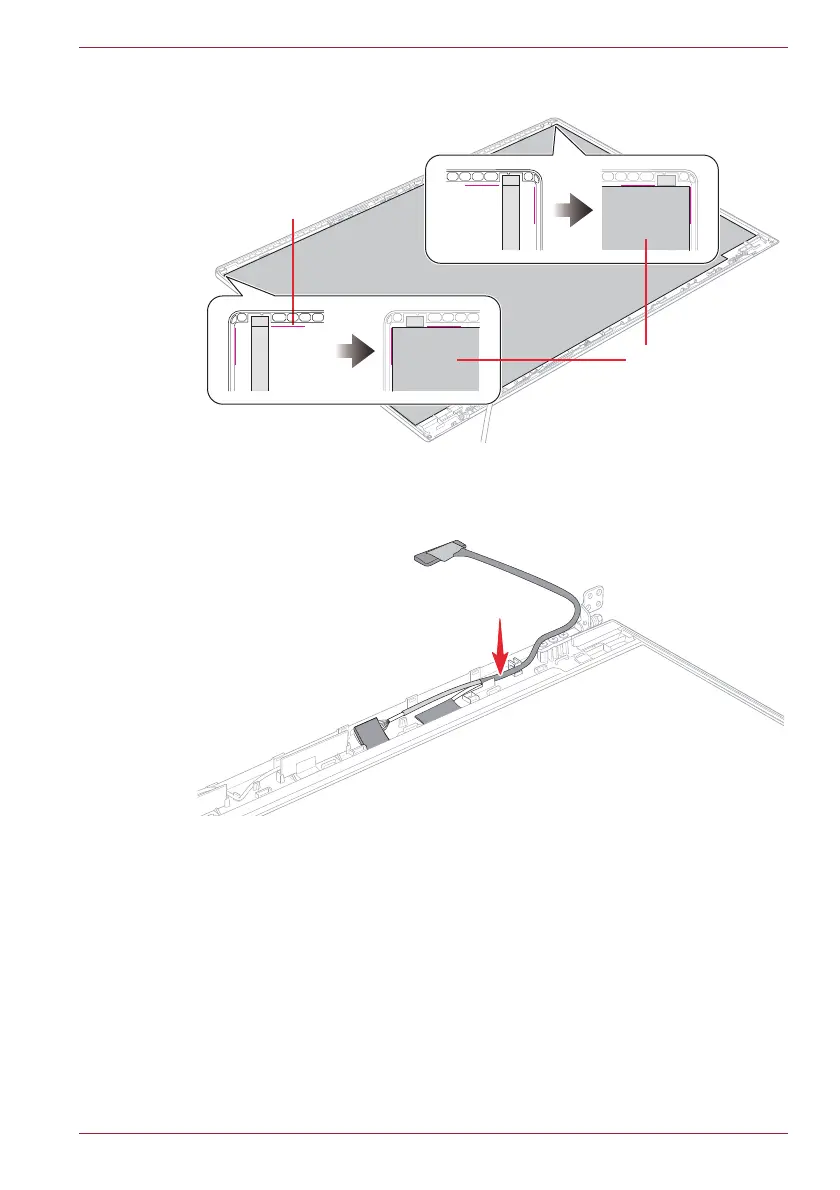

Figure 4-32 Installing the LCD unit (2)
4. Arrange the LCD harness under the guides of the LCD cover.
Figure 4-33 Installing the LCD unit (3)
4.22 Camera module
4.22.1 Removing the Camera module
To remove the camera module, follow the steps below.
1. Remove the Camera Shutter, screw and plate.
2. Disconnect the FPC from the connector on the camera module.
3. Peel off the camera module from the slot of the LCD cover.
LCDLCD
LCD
Marking line
