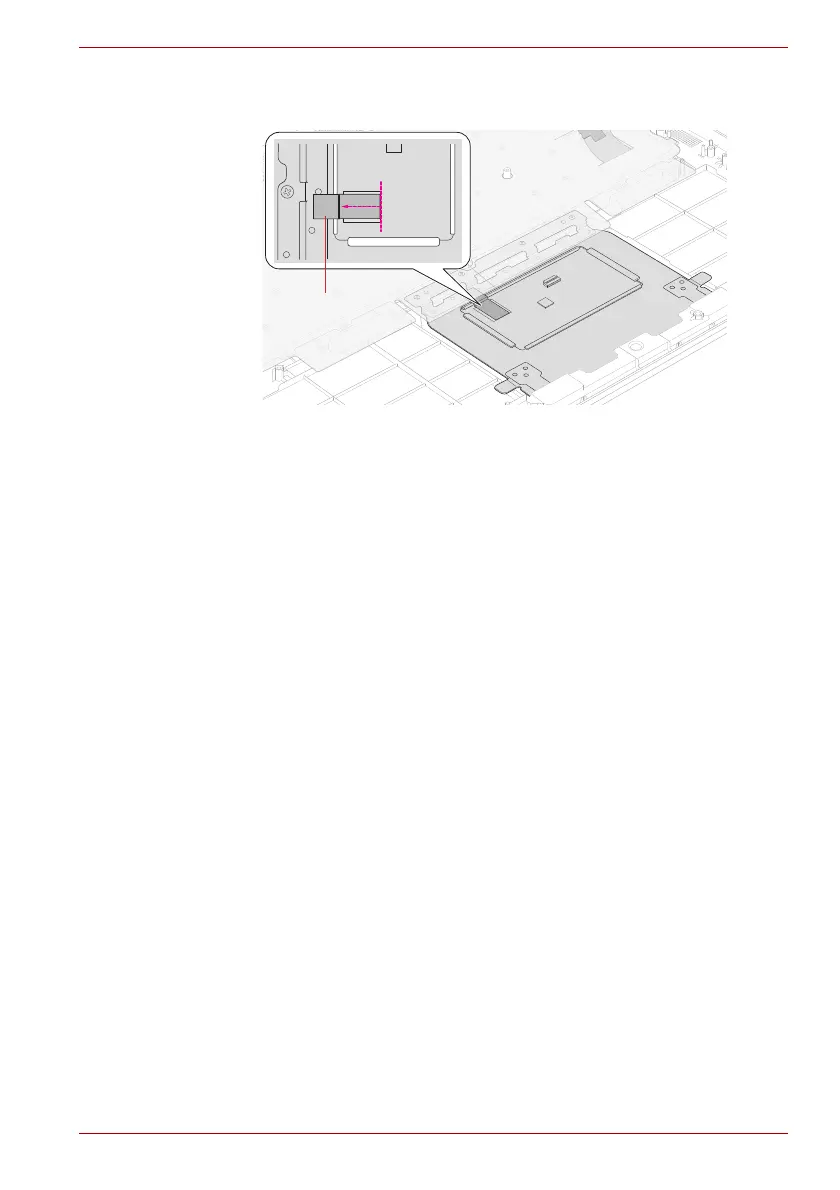

Figure 4-16 Installing the Click pad (3)
5. Connect the Click Pad FFC to the connector on the Click Pad and the
connector CN9510 on the System Board.
4.17 Speaker
4.17.1 Removing the Speaker
To remove the Speaker, follow the steps below.
1. Disconnect the Speaker harness from the connector CN6290 and
CN6291 on the system board.
2. Open the INSU and stick tape. Release the Speaker harness from the
guides.
3. Remove the the following screws and the Speaker from the slot on the
Cover Assembly.
。
GASKET TAPE
