P.47
・ MODEL EV-S100/200

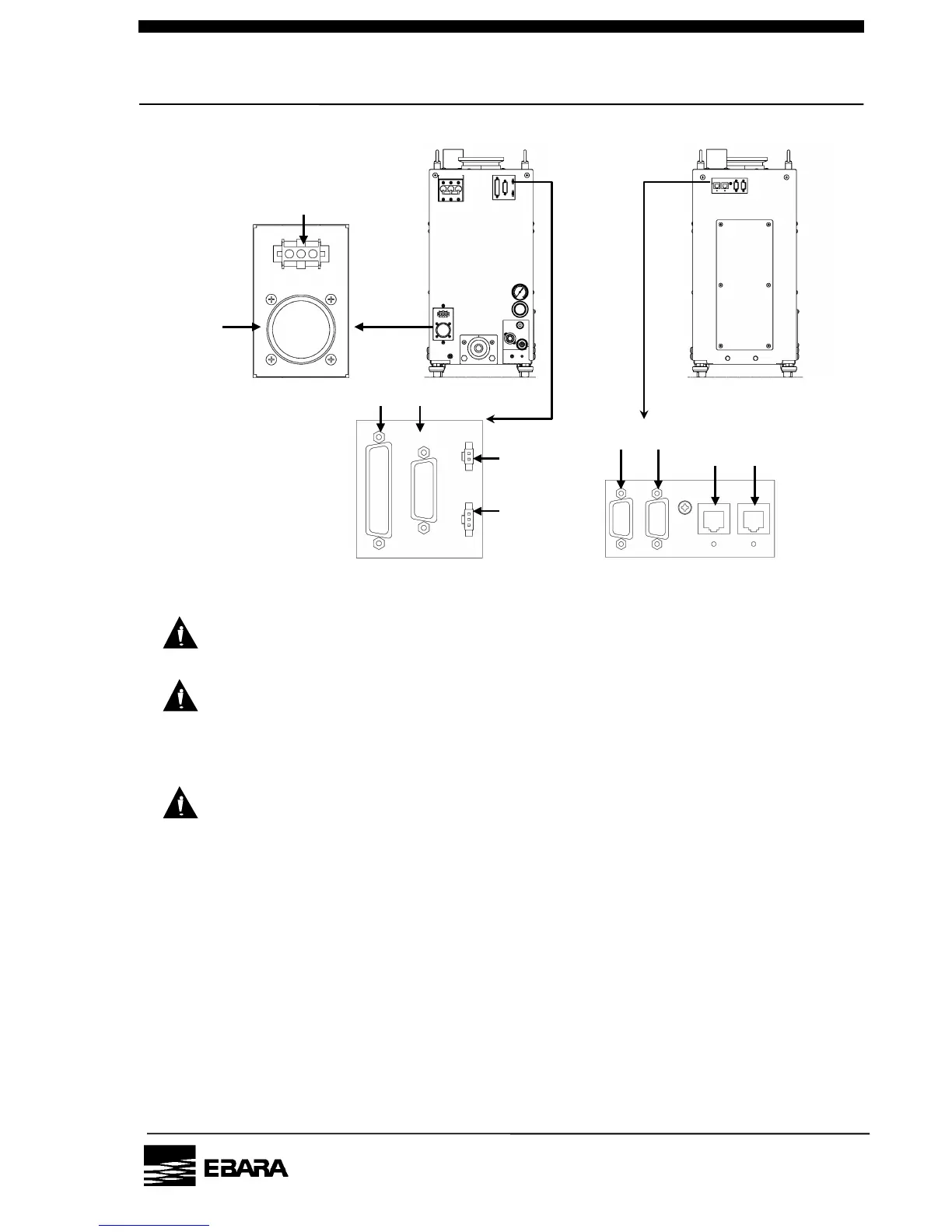

Fig 4.3.3 Power Supply and Control Signal connects position
WARNING Be sure to connect the grounding wire.
CAUTION Use the correct wiring materials and size to match the
operating conditions in accordance with the power consumption
rating and ambient air temperature of the pump.
CAUTION Wiring should be hard-wired or using twist-lock Hubbel type
connector at power source side.
Wire the connector for the main power supply (3-phase, 200V-220V and
50Hz/60Hz). Fig. 4.4, 4.5 and Tables 4.2, 4.3, 4.4 and 4.5 show the connector pin
assignment.
Please wire the connector pin by the specialized tool.
Power supply
receptacle
CN-C
(Power supply for
accessories)
To Next Page
