EBARA EV-S50 - Page 81

P.62
SET
CONTROL MODE?
SET
DIP SW?
SET
RUNNING MODE?
SET
NORMAL SPEED？
SET
S.ENERGY SPEED?
▼
▲
BP : ##.# kW
MP : ##.# kW
PRG.
Press the
for 3 sec.
or more.
▼
▲
▼
▲
▼
▲
• Status display
• Setting the pump operation control mode
• Setting the DIP switch
• Setting the pump running mode
• Setting the normal rotational speed
• Setting the rotational speed in the S. ENERGY mode
Pressing the key PRG. for 3 sec. or more when
the status screen is displayed switches to the
operational mode setting screen.
When the mode you want to
set is displayed, press the
ENTER to go to the setting
change screen.
▼
▲
SET POINT
N2 FLOW WARNING?
• Setting the pump N2 flow low warning threshold
▼
▲
SET POINT
BACK PRES.?
• Setting the Back Pressure high warning threshold

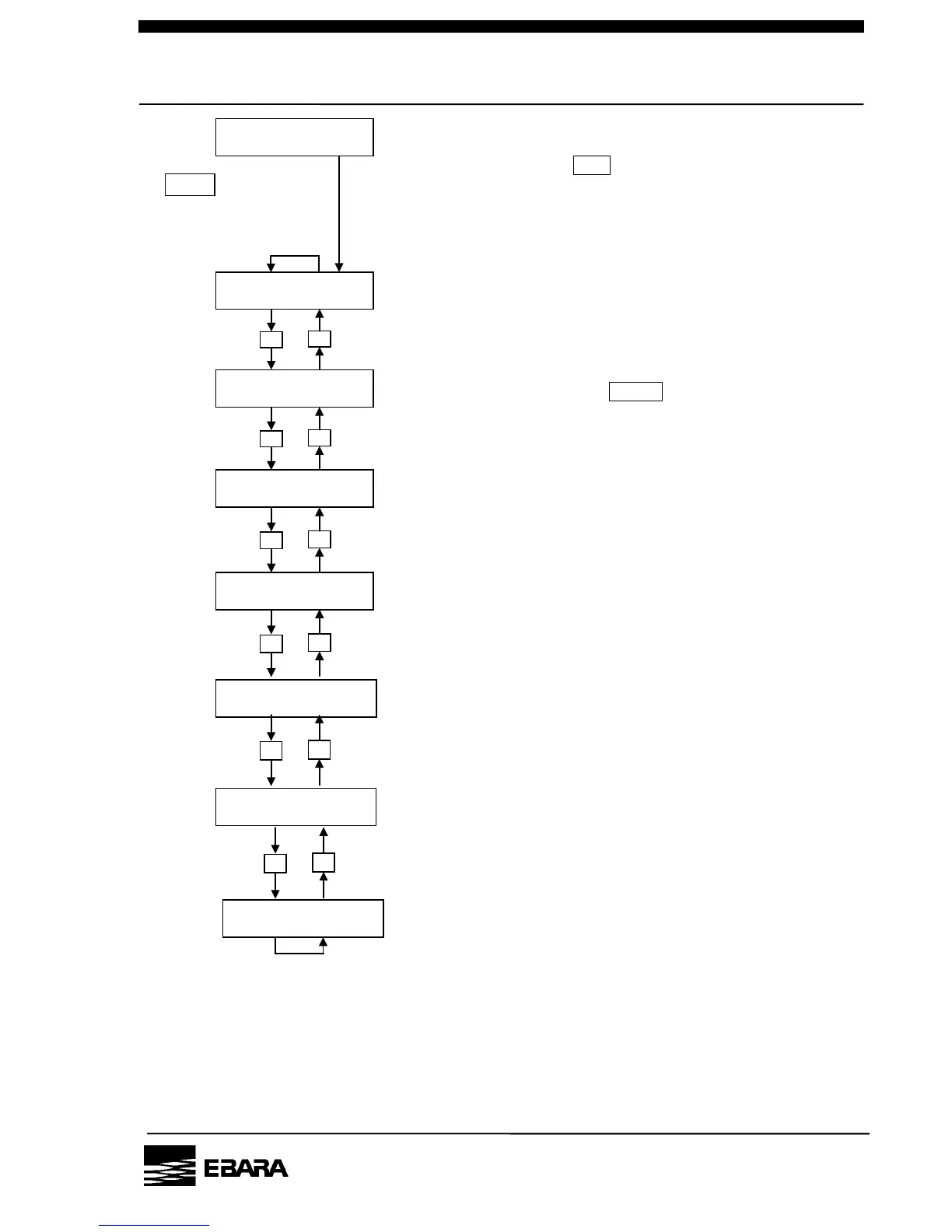

Fig. 5.3 How to set the operational mode
