1. Rear View Camera operations

Optional function

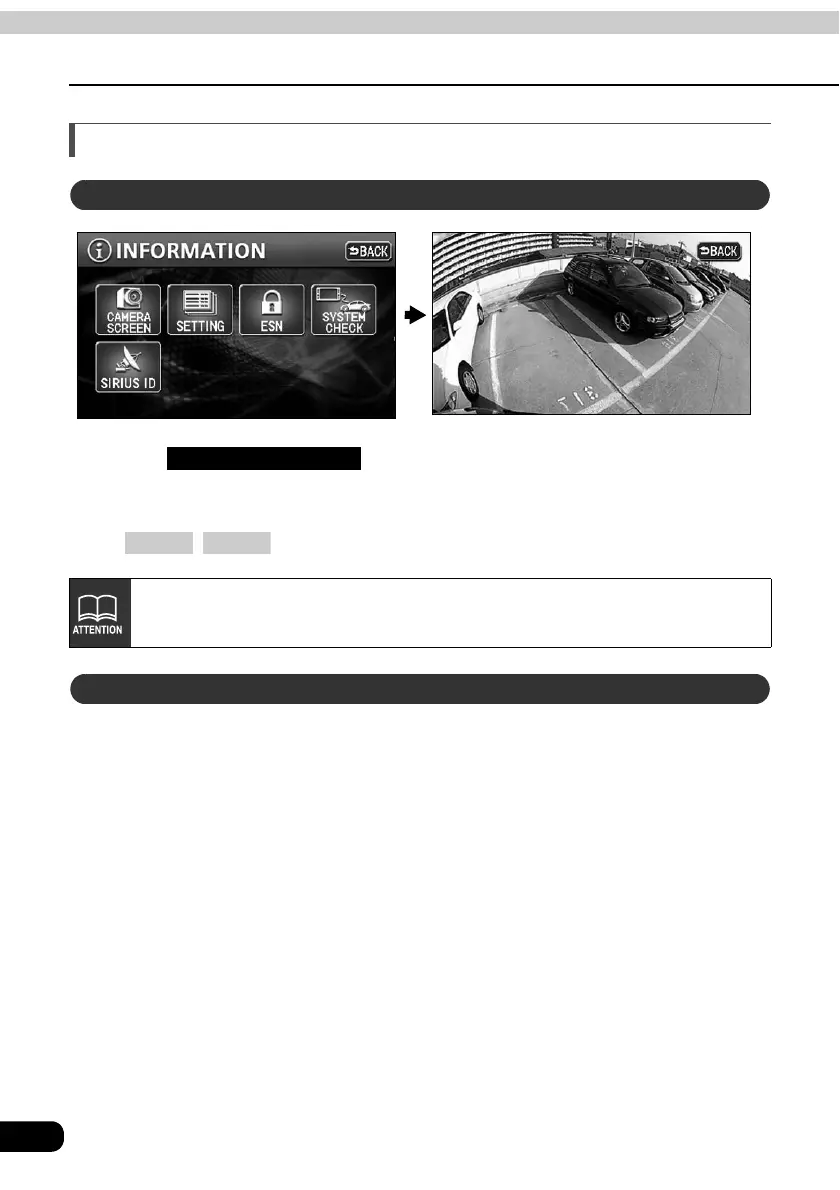

Rear View Camera image

Touch on the INFORMATION screen.

• The rear image appears on the monitor screen.

• Touch any of the following switches to return to the normal screen:

, .

To display the rear view image in reverse gear, set "AUTO" for the "CAMERA SCREEN" setting

in advance. (Refer to page 132)

Select reverse gear.

• The rear image appears on the monitor screen.

• On shifting to any gear other than reverse, the normal screen is redisplayed.

Displaying the rear view image manually (MANUAL)

CAMERA SCREEN

MAP MENU

CAMERA SCREEN button is available when backeye camera (BEC106) is conneted.

Displaying the rear view image in reverse gear (AUTO)
