417101339_EMP_II_E10
44
Rev. 10-01.19

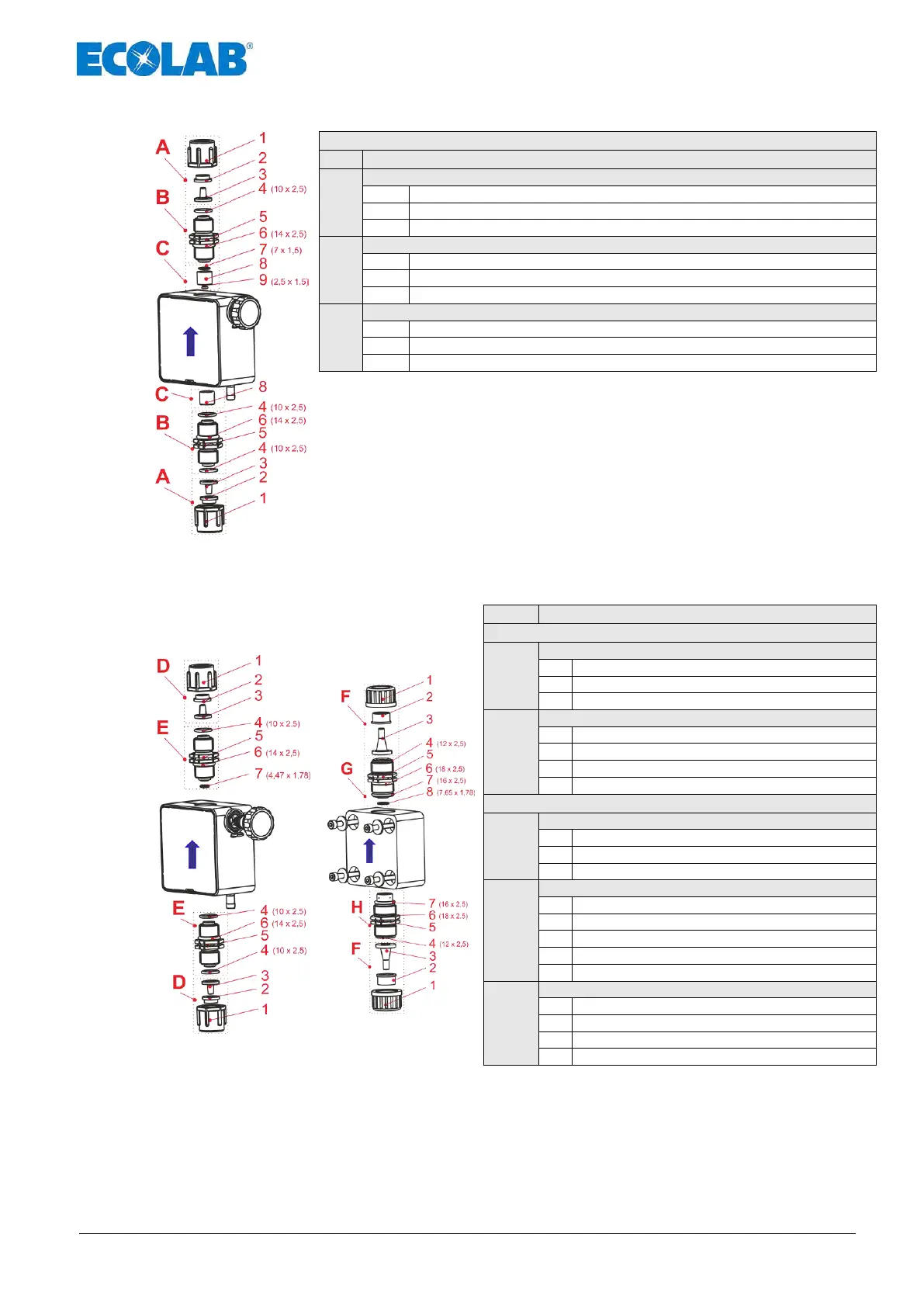

8.1.1 Installation drawing 3 Ball-Valve
Type V3014 and V3025
Pos.
Description
A
CONNECTION SET
1
Union nut
2
Clamping piece
3
Tapered part
B
SUCTION-/PRESSURE VALVE
4
O-Ring, Ø 10 x 2,5
5
Suction-/ Pressure valve
6
O-Ring, Ø 14 x 2,5
C
METERING CARTRIDGE V3
7
O-Ring, Ø 7 x 1,5
8
Metering cartridges
9
O-Ring, Ø 2,5 x 1,5
Fig. 8.2
8.1.2 Installation drawing 2 Ball-Valve (type 00043 – 00112)
Fig. 8. 3
Fig. 8. 4
Pos.
Description
Type 00043 – 00112, Fig. 8.3
D
CONNECTION SET
1
Union nut
2
Clamping piece
3
Tapered part
E
SUCTION-/PRESSURE VALVE
4
O-Ring, Ø 10 x 2,5
5
Suction-/ Pressure valve
6
O-Ring, Ø 14 x 2,5
7
O-Ring, Ø 4,47 x 1,78
Type 00240, Fig. 9.4
F
CONNECTION SET
1
Union nut
2
Clamping piece
3
Tapered part
G
PRESSURE VALVE
4
O-Ring, Ø 12 x 2,5
5
Pressure valve
6
O-Ring, Ø 18 x 2,5
7
O-Ring, Ø 16 x 2,5
8
O-Ring, Ø 7,65 x 1,78
H
SUCTION VALVE
4
O-Ring, Ø 12 x 2,5
5
Suction valve
6
O-Ring, Ø 18 x 2,5
7
O-Ring, Ø 16 x 2,5
