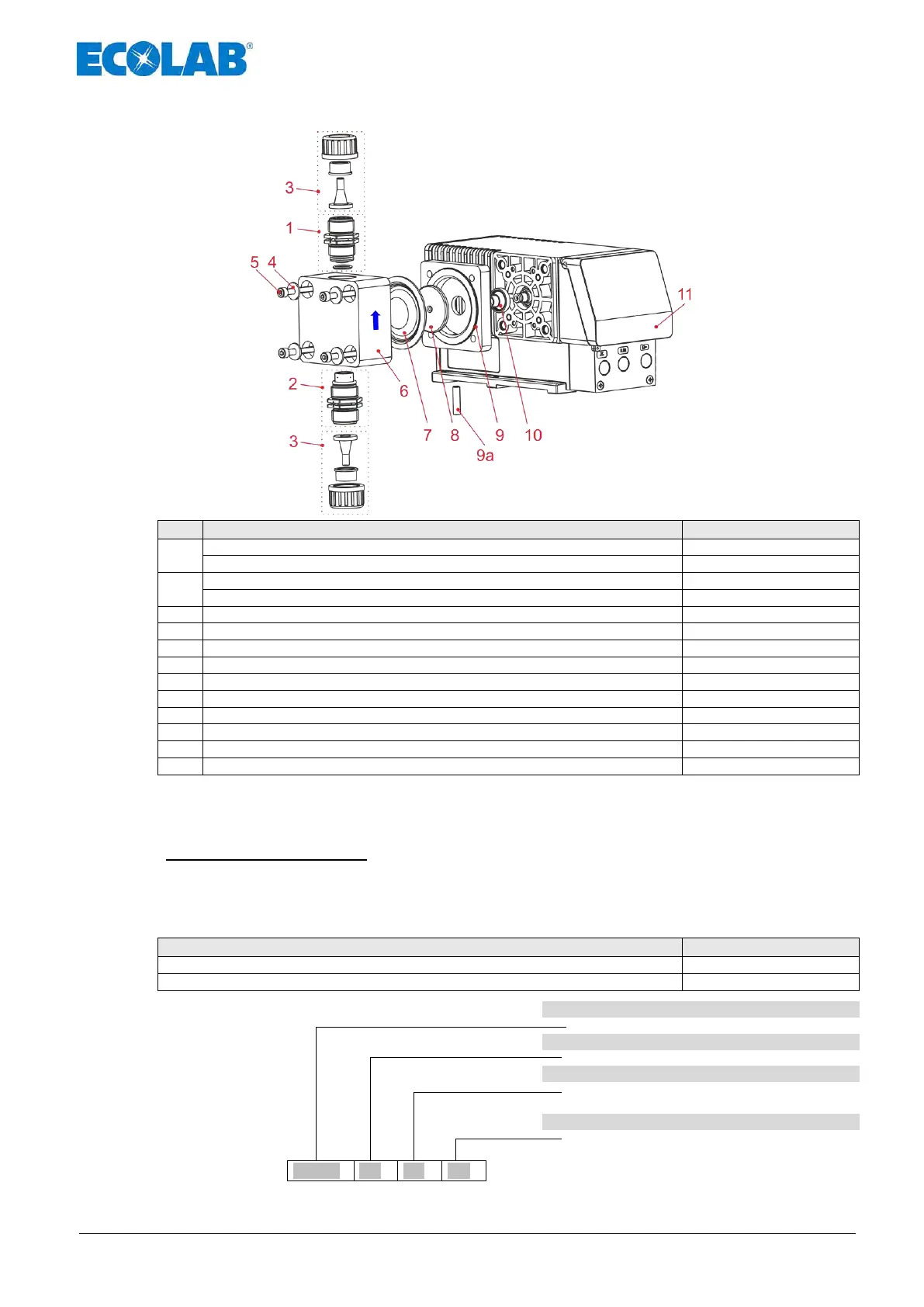

10.2 Exploded drawing type 00240
Fig. 10.2
Pos.
Description
Article No. (EBS No.)
1
DRV PVFPKE000 G 5/8 - G 5/8 - 99 Pressure valve PVDF/FPM (Viton B)
249494 (10099740)
DRV PVEPKE000 G 5/8 - G 5/8 - 99 Pressure valve PVDF/EPDM
249495 (on request)
2
SAV PVFPKE000 G 5/8 - G 5/8 - 99 Suction valve PVDF/FPM (Viton B)
249474 (10005334)
SAV PVEPKE000 G 5/8 - G 5/8 - 99 Suction valve PVDF/EPDM
249475 (on request)
3
Connection set, PVDF, G 5/8 i – hose 6/12, 10/16
249216 (10016089)
4
Disk, B15 x 5.3 x 1.6, DIN9021, ISO7093, V2A
413501720 (10015901)
5
Socket head screw, M5 X 50 DIN 912 V
413031027 (on request)
6
Pump head, 24 L/H PVDF
34500129 (on request)
7
Diaphragm
34500209 (on request)
8
Pressure disk
34500145 (10079611)
9
Sandwich plate
34500207 (on request)
9a
Pipe section
34004207 (on request)
10
Bellows
34800132 (10003134)
11
Printed clear cover
34800120 (10015884)
10.2.1 Set of wearing parts Type 00240
Consisting of 1 piece each:
• Suction valve with hose connection material
• Pressure valve with hose connection material
• Connection Set for hose 4/6, 6/8, 6/12 mm
• Diaphragms
• Supporting ring
Description - Wearing part set EMP II
Article No. (EBS No.)
00240 PVFPKE
248454 (on request)
00240 PVEPKE
248460 (on request)
1. Pump type (pump capacity)
00240 = 24 l/h
2. Valve material
PV = PVDF
3. Sealing material
FP = Viton B
EP = EPDM
4. Valve ball material
KE = ceramics
Wearing part set EMP II
00240
PV
FP
KE
