417101339_EMP_II_E10
48
Rev. 10-01.19
10 Wearing parts and spare parts (standard version)

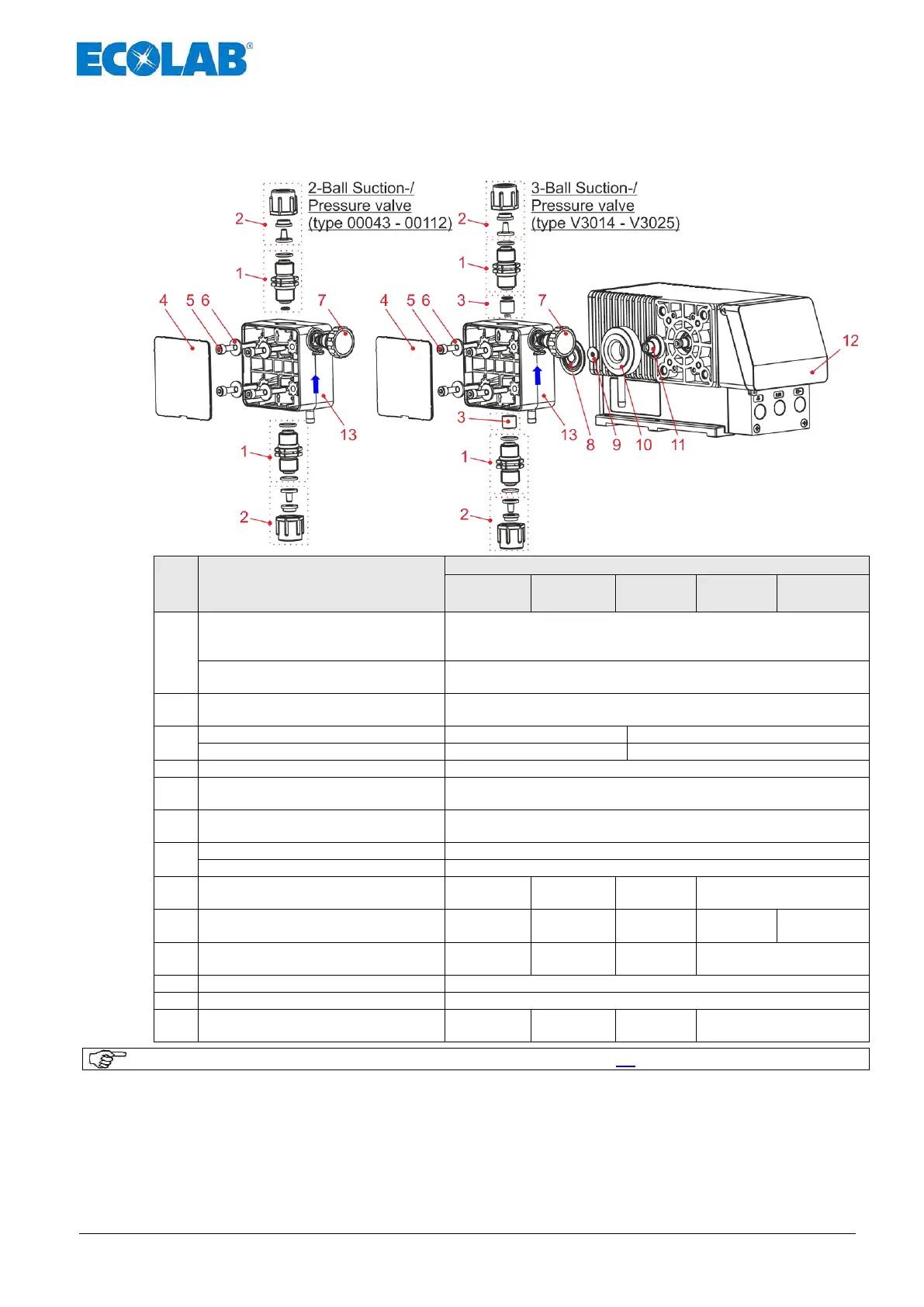

10.1 Exploded drawings type V3014, V3025, 00043, 00048, 00072 and type 00112
Fig. 10.1
Pos.
Description
Type
V3014
V3025
00043
00048
00072
00112
1
Suction-/Pressure valve PVDF/FPM
(Viton B)
SDV,PVFPKE 000 G 3/8 - G 3/8 - 99
248405 (10093149)
Suction-/Pressure valve PVDF/EPDM
SDV PVEPKE 000 G 3/8 - G 3/8 - 99
248406 (10079847)
2
Connection set 3/8“ PVDF for tube
4/6, 6/8, 6/12 mm
248491 (10002549)
3
Valve cartridge, V3 FPKEPV
248432 (10039395)
--
Valve cartridge, V3 EPKEPV
248433 (on request)
--
4
Cover plate /PK-PP
54000188 (on request)
5
Socket head screw, M 5 x 40, DIN
912, V2A
413031026 (on request)
6
Disk, B15 x 5.3 x 1.6, DIN9021,
ISO7093, V2A
413501720 (10015901)
7
Vent screw, PVDF/VITON B
243077 (10003132)
Vent screw, PVDF/EPDM
243091 (on request)
8
Diaphragm
34800134
(10015864)
34800155
(10092951)
34800156
(10002610)
34800157
(10015863)
9
Support disk
34000158
(10015906)
--
34024302
(10003117)
34040110
(10004472)
34000145
(10015908)
10
Sandwich plate
34800133
(on request)
34800150
(10092952)
34800151
(10003064)
34800152
(10099359)
11
Bellow
34800132 (10003134)
12
Printed clear cover
34800120 (10015884)
13
Pump head PVDF
34800324
(on request)
34800325
(on request)
34020106
(10016018)
34020107
(10002560)
NOTE
EBS numbers are shown in brackets; also see chapter 1.1.
