Ecolab Elados EMP II-E10 - Dimensions; 11.2.1 Type V3014, V3025, 00043, 00048, 00072 and Type 00112

417101339_EMP_II_E10
52
Rev. 10-01.19
Pump key 2
11. Suction-side connection
21 = Set for tube 4/6, 6/8, 6/12 * (standard)
12. Pressure-side connection
21 = Set for tube 4/6, 6/8, 6/12 * (standard)
13. Material connection
PV = PVDF (standard)
PP = PP
14. Electrical stroke adjustment
99 = no electrical stroke adjustment
15. Diaphragm breakage detection
99 = no diaphragm breakage detection
16. Housing version
01 = standard housing
Other specifications provided on request.
Example of the complete pump key for a standard pump:
E10
V3025
PV
08
FP
KE
PV
99
01
03
-
21
21
PV
99
99
01
(Pump key 1) (Pump key 2)
11.2 Dimensions
11.2.1 Type V3014, V3025, 00043, 00048, 00072 and Type 00112

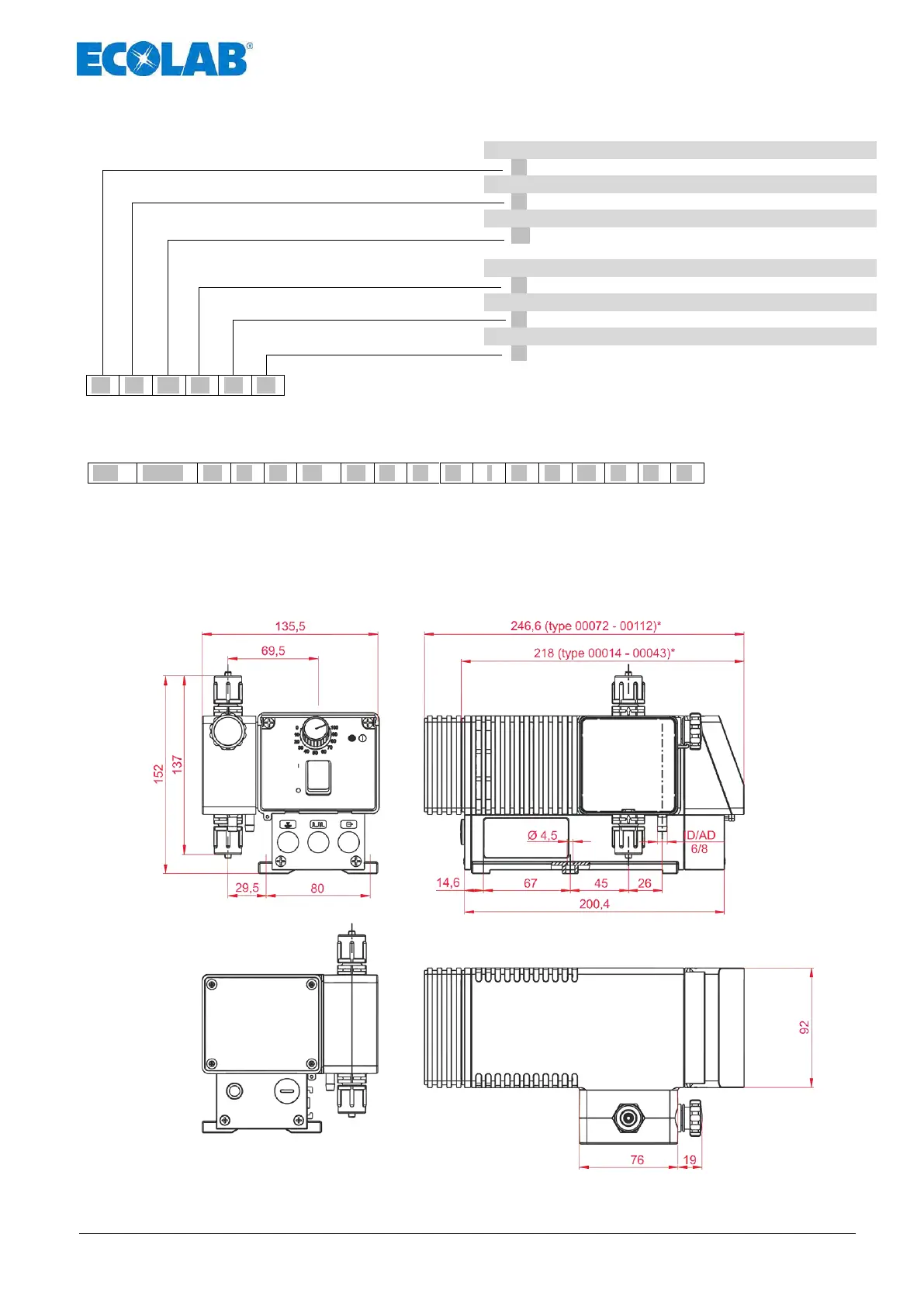

Fig. 11.1
* linear dimension at type 00072 and 00112 with conventional synchronous motor as shown in figure 14.1 (246,6 mm).
linear dimension at type 00072 and 00112 with BLDC-Motor (visible at the voltage indication 100-240V at identification plate)
identical with types 00014 up to 00043 (218 mm).
21
21
PV
99
99
01
