11.2.2 Type 00240

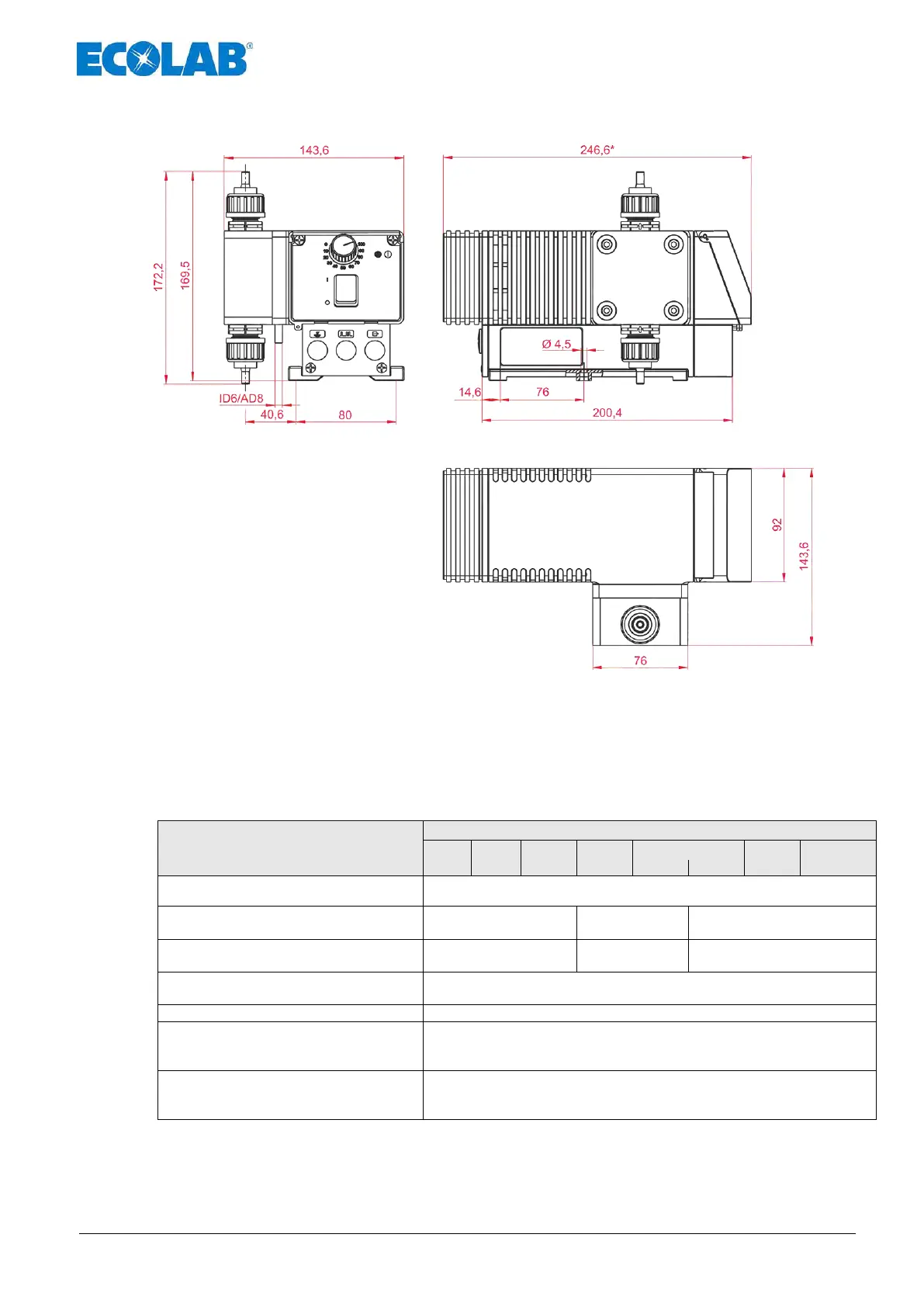

Fig. 11.2
* linear dimension at type 00240 with conventional synchronous motor as shown in figure 14.2 (246,6 mm).
linear dimension at type 00240 with BLDC-Motor (visible at the voltage indication 100-240V at identification plate) identical with
types 00014 up to 00043 (218 mm).
11.3 Technical specifications "Overview tables"
11.3.1 Electrical Data
230 V / 50/60 Hz ± 10 % (100 - 240V 50/60Hz ± 10 % )*
(special voltages on request)
max. current input 115V 50/60 Hz
230V 50/60 Hz
0,29 / 0,33 A (0,7 A)*
0,14 / 0,16 A (0,7 A)*
Motor Power 115V 50/60 Hz
230V 50/60 Hz
Breaking capacity at circuit with 24 V
Empty report output
stroke signal output
24 V 3 A AC/DC
24 V 0,3 A DC
Breaking capacity at circuit with 230 V
Empty report output
stroke signal output
230 V / 3 A AC/DC
connection according to VDE is not permitted
* The values at brackets refer to types 00072, 00112, 00240 with BLDC- Motor
(visible at the voltage indication 100- 240V at identification plate)
