Installation position
The unit should be wall-mounted upright.
Space required

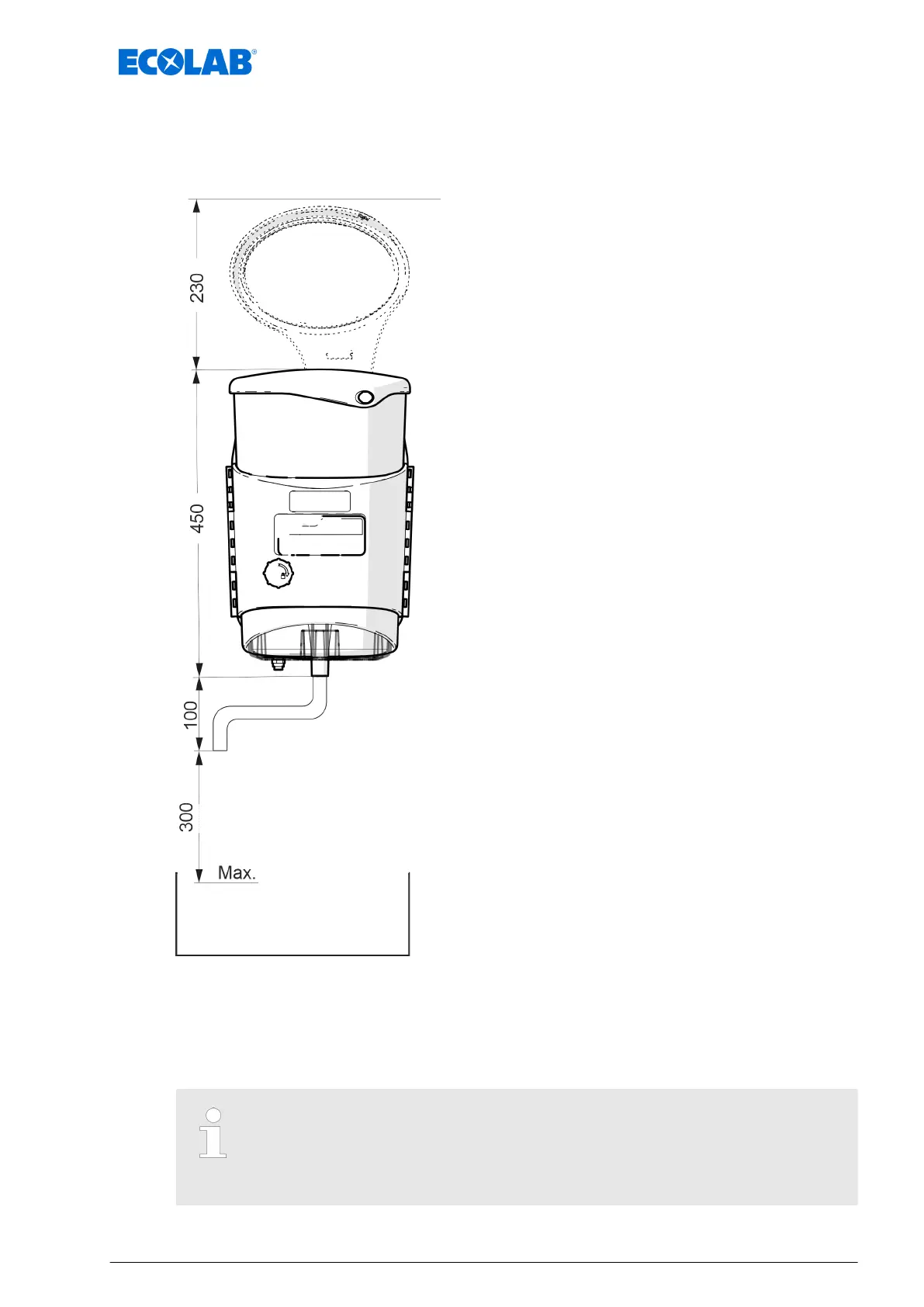

Fig. 2: Space required
To be able to open the hinged cover and insert the product, leave a clearance of at least
23 cm directly above the SMAR
TPOWER
TM
RTU Dispenser. Leave a clearance of 10
cm below the SMARTPOWER
TM
RTU Dispenser so the ready-to-use solution can drain
through the swivel outlet.
Legal requirements for the United Kingdom of Great Britain and Northern
Ireland
The spout of the swivel outlet must be at least
30 cm above the max. fill level
of the container.
Assembly and connection
27 MAN054128 Ver. 01-06.2024
