Wall-mounting
Personnel:
n
Service Personnel
n
Qualified employee
Protective equipment:
n
Protective gloves
n
Safety shoes
n
Protective eyewear
Tool:
n
Drill
n
Spirit level
Requirements:
n The suitability of the wall for wall mounting has been tested.
n The necessary supply connections are available.
n The installation location is suitable for the operation of the unit.
1
2
3
4
5
6
1

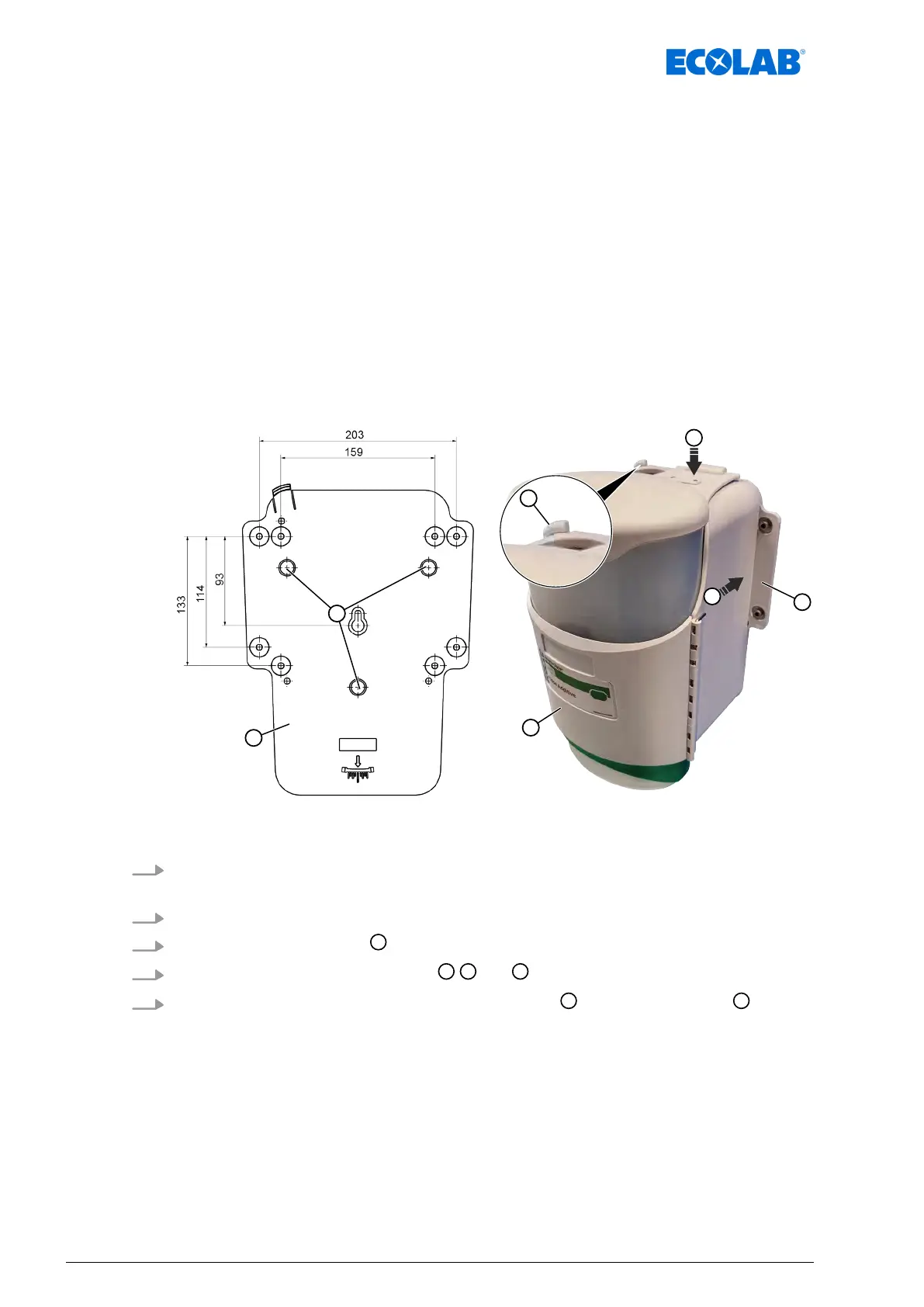

Fig. 3: Mounting the unit (with the rinse dispenser as an example)
1
Mounting plate
2
Retaining pin
3
Unit
4
Setting up the unit
5
Press the unit down
6
Locking plate
1.
Select the final location of the SMARTPOWER
TM
RTU Dispenser and drill holes in
accordance with the Fig. 3 .
2. Drill the fixing holes and place the Æ 6 mm dowels.
3.
Attach the mounting plate
1
with dowel screws.
4.
SMAR
TPOWER
TM
RTU Dispenser
3
2
Put
4
the on the retaining pins.
5.
SMAR
TPOWER
TM
RTU Dispenser Press the down
5
until the locking tab
6
on the top of the unit clicks into place.
Assembly and connection
