DUS 60 Digital Ultrasonic Diagnostic Imaging System User Manual Installation Instructions
- 16 -

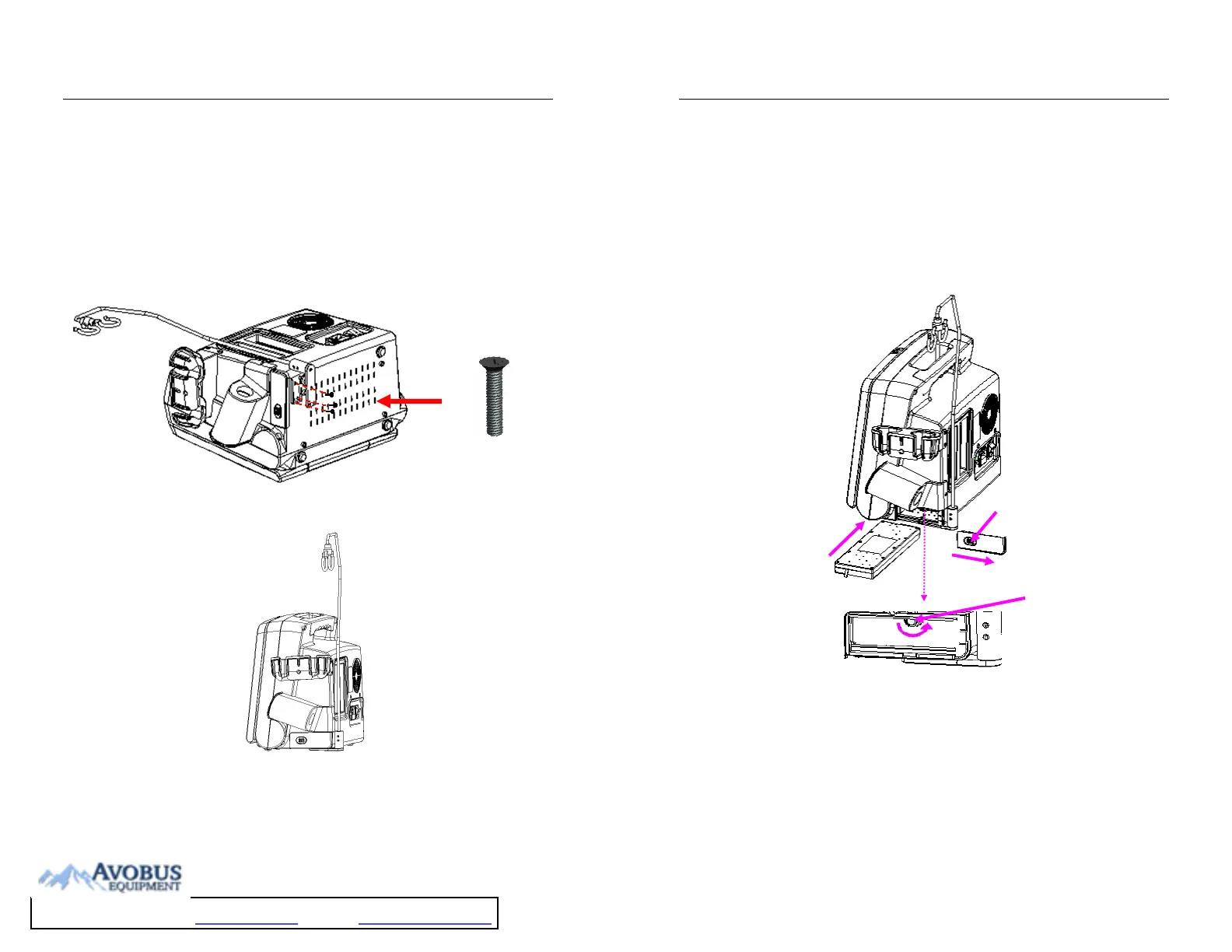

4.3.1. Installing and Uninstalling a Cable Holder
To install the cable holder:
1. Take out the cable holder, three screws (M3×12) and packing foam from the package.
2. To avoid scraping the main unit, put one piece of packing foam on a flat ground.
3. Carefully turn the main unit upside down and put it on the packing foam and assemble the
screws to the main unit with a cross-head screw driver as shown in figure 4-1.
4. Carefully turn the main unit with a cable holder to the normal state as shown in figure 4-2.
M3×12 (3×)
Figure 4-1 Assembling Cable Holder to Main Unit
Figure 4-2 Main Unit with Cable Holder
To uninstall the cable holder:
Uninstall the cable holder in a reverse procedure.
DUS 60 Digital Ultrasonic Diagnostic Imaging System User Manual Installation Instructions
- 17 -
4.3.2. Installing and Uninstalling a Battery
To install a battery (if necessary):
1. Take out the battery from the package.
2. Press the button on the battery cover and pull the cover out.
3. Turn the flicker counterclockwise to hide it and push the battery into place.
4. Turn the flicker clockwise to keep the battery in place.
5. Replace the battery cover.
Figure 4-3 Installing Battery to Main Unit
To uninstall a battery:
1. Press the button on the battery cover and pull the cover out.
2. Pull the flicker counterclockwise to hide it.
3. Pull the battery out.
4. Replace the battery cover.
②Pull the battery cover out
④Push the battery into place
①Press the button
③Turn the flicker counter-
clockwise to hide it
