EDAN DUS 60 - Presetting Formula

DUS 60 Digital Ultrasonic Diagnostic Imaging System User Manual System Control
- 48 -
Parameter 2 Tab

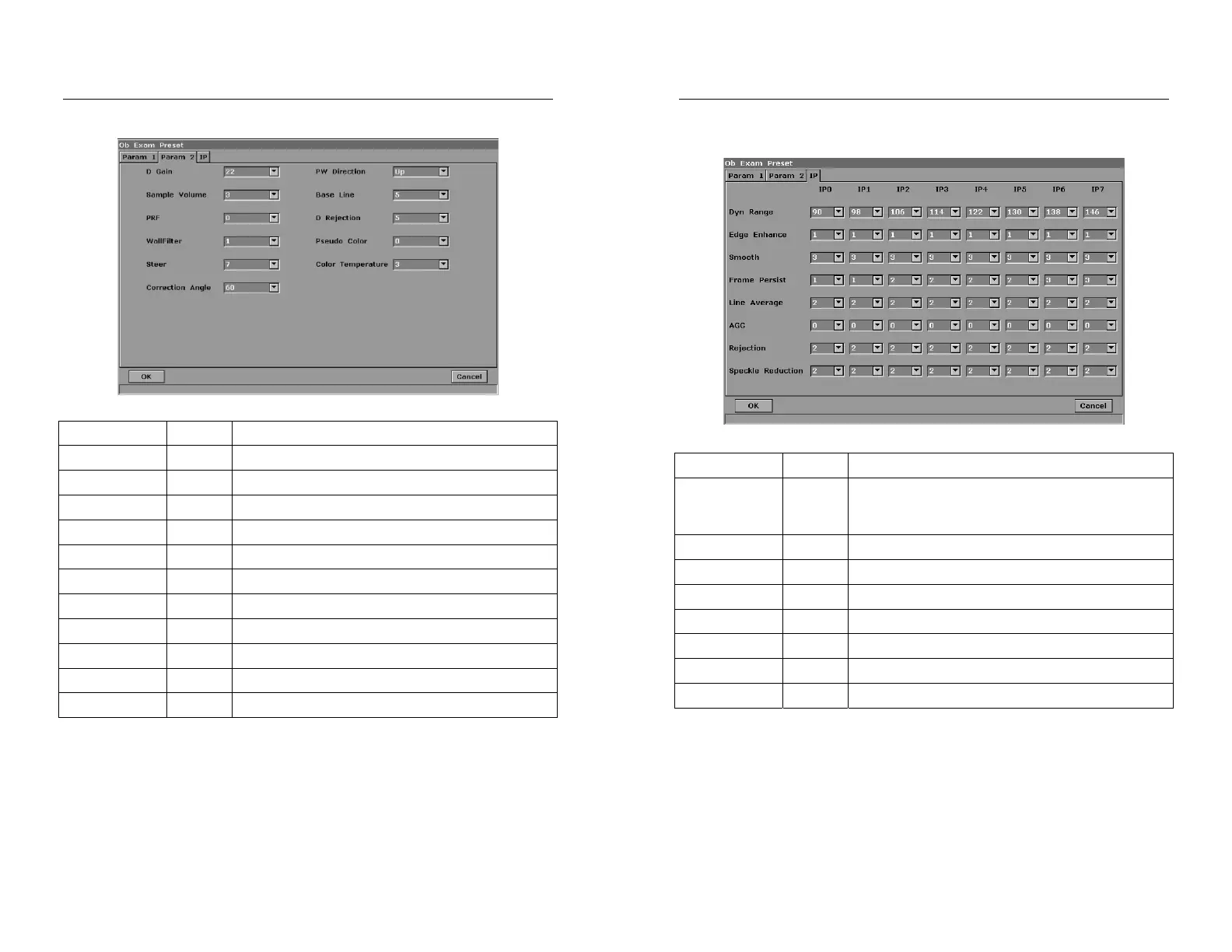

Figure 5-14 Obstetric Presetting – Parameter 2 Tab
Item Setting Allows you to
D gain 0~130 Set the gain of PW image, in 2 increments.
Sample volume 1~7 Set the size of the sample volume.
PRF 0~12 Set the level of PRF.
Wall filter 0~3 Set the level of wall filter.
PW direction Up/down Set the PW direction.
Steer 0~7 Set the position of the sample line (for linear probes).
Correction angle 15~165 Set the correction angle.
Base line 0~6 Set the base line position.
D rejection 0~7 Set the PW rejection.
Pseudo color 0~6 Set the colorization colors.
Color temperature 0~3 Set the color temperature.
Table 5-7 Obstetric Presetting Information – Parameter 2
DUS 60 Digital Ultrasonic Diagnostic Imaging System User Manual System Control
- 49 -
IP Tab
NOTE: IP----Image Parameter
Figure 5-15 Obstetric Presetting – IP Tab
Item Setting Allows you to
Dynamic Range 30~150
Select the default dynamic range for the examination, in decibels
(dB). During imaging, the dynamic range can be adjusted in 4 dB
increments.
Edge Enhancement 0~7 Select the default amount of edge enhancement to be applied.
Smooth 0~7 Set image smoothing.
Frame Persist 0~7 Set image frame correlation.
Line Average 0~7 Set image line softening attribute.
AGC 0~3 Set Automatic Gain Control.
Rejection 0~7 Set image noise restrain attribute.
Speckle Reduction 0~7 Set image speckle reduction attribute.
Table 5-8 Obstetric Presetting Information – IP
5.7.5. Presetting Formula
In the preset menu, move the cursor to highlight Formula and press Set to display formula
presetting dialog box, as shown below:
