7.3.2. Obstetric Report
After obstetric examination, the system will generate an obstetrical diagnosis worksheet
automatically.
1. In the obstetric menu, roll the trackball to highlight Results, and it will display secondary
menu automatically.
2. Select OB Worksheet and press Set to open Obstetric Worksheet, as shown below:

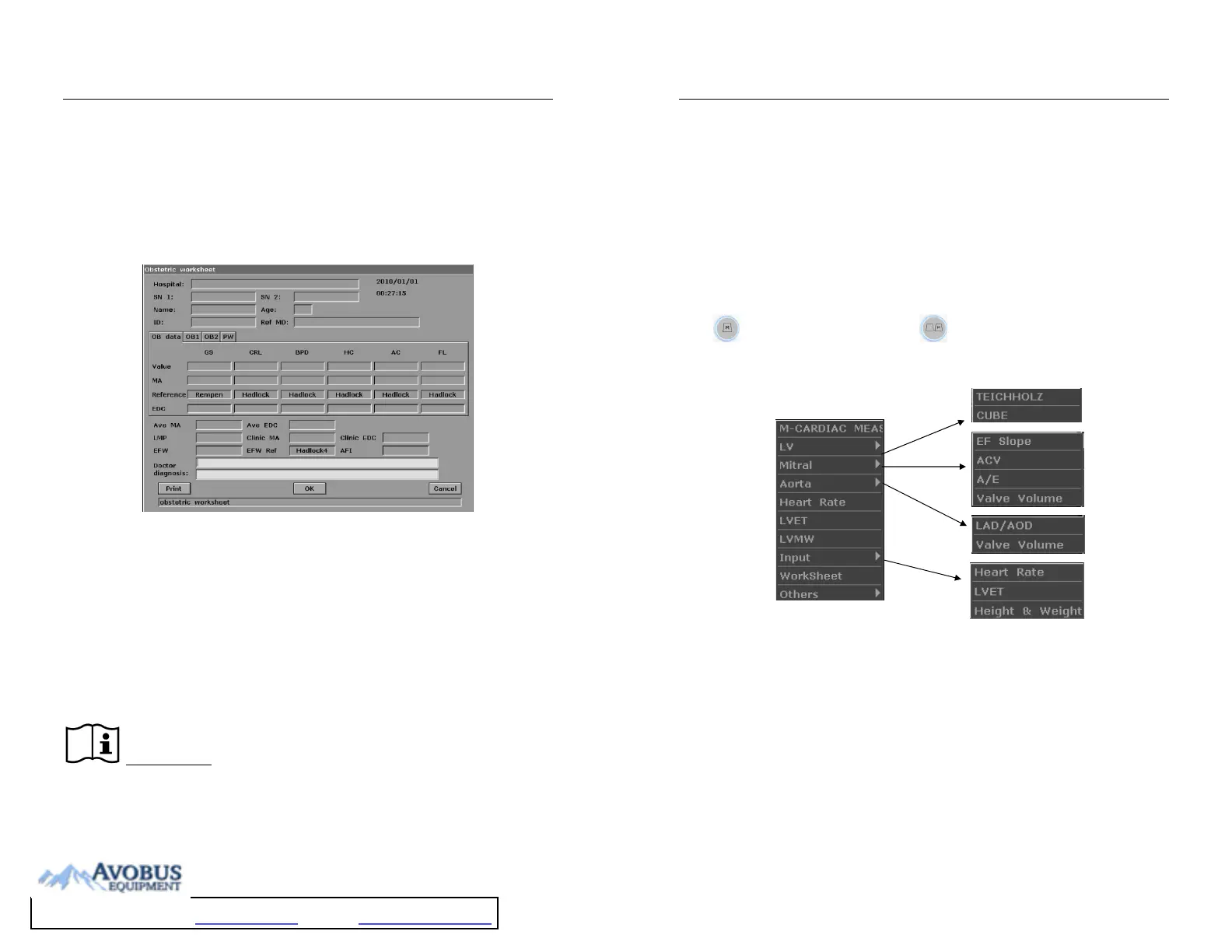

Figure 7-8 Obstetric Worksheet
The diagnosis editing column displays the cursor “І”, and you can enter diagnosis information.
NOTE:
1. The system will display the completed measurements and calculations, the
uncompleted measurements and calculations will not be displayed.
2. You can check the measured items by opening the obstetric worksheet dialog box
whenever you want, during measurement or after that. Then press OK or Cancel to
close the dialog box, and continue to measure.
To print the report:
Press Print in the Obstetric Worksheet.
Printing reference Section 5.8, Printing.
7.4. Others
Select Others to enter another application measurement.
DUS 60 Digital Ultrasonic Diagnostic Imaging System User Manual Cardiology Measurements and Calculations
- 101 -
Chapter 8 Cardiology Measurements and Calculations
The cardiology examination is usually in the B mode, the B/M mode or the M mode.
Press Exam and select Cardiac, and then press Set.
The result of ventricle volume measurement is more exact in two-dimension. You can get the
two-dimension heart image of end diastolic and end systolic exactly and conveniently in the B/M
mode. So we suggest that you do the cardiac measurement and calculation in the B/M mode.
8.1. Cardiac Measurements and Calculations in M Mode
Press to enter the M mode, or press to enter the B/M mode, and then press
Measure to activate the measurement function. The system displays the measurement menu
shown as below.
Figure 8-1 M Mode Cardiac Measurement and Calculation Menu
1. Items of Measurement and Calculation
M-CARDIAC MEAS: LV, Mitral, Heart Rate, LVET, and LVMW.
2. Items of input
Heart Rate, LVET, and Height &Weight.
The formulas of B/M mode and M mode cardiac LV measurement include TEICHHOLZ and
CUBE, as shown below, and the default formula is TEICHHOLZ.
