DUS 60 Digital Ultrasonic Diagnostic Imaging System User Manual System Control
- 26 -
5.4. Control Panel

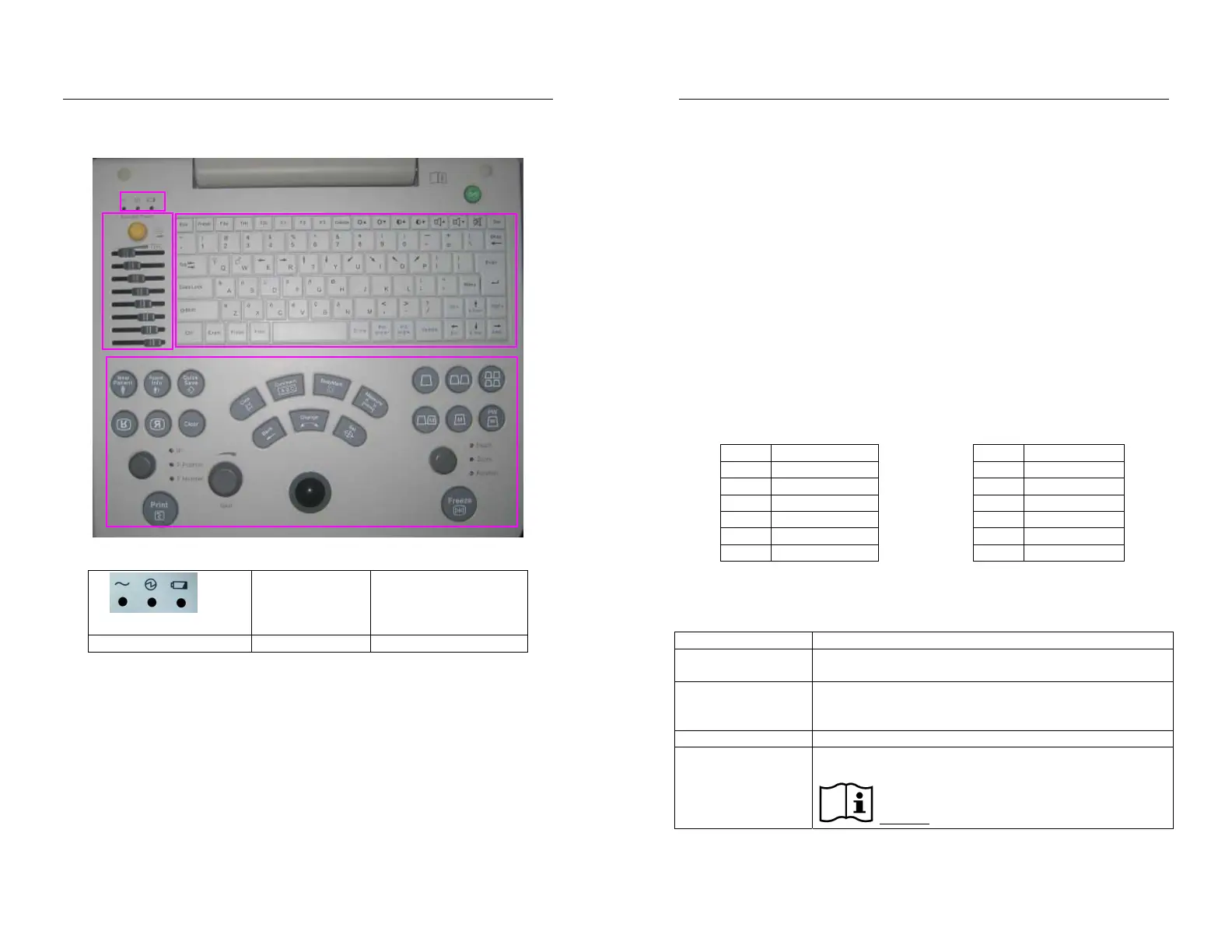

Figure 5-2 Control Panel
①
Power/running indicator lights
② Power on/off key
③ Acoustic power adjusting
knob and TGC sliders
④ PC keyboard ⑤ Function controls
5.4.1. Trackball
The trackball operation is easy and convenient. It can achieve the following functions:
 Move the measurement cursor during measurement.
 Move to select menu items in menu-based operations.
 Move the comment cursor in the comment status.
 Move the M Mark in the B/M mode.
②
③
④
⑤
①
DUS 60 Digital Ultrasonic Diagnostic Imaging System User Manual System Control
- 27 -
 Move the sample line in the PW mode.
 Realize single frame playback in the frame-by-frame playback status.
 Move the zoomed window in the zoom status.
NOTE:
1. Please be gentle when running the trackball.
2. Please keep the surface of trackball clean.
5.4.2. “0~9” Numeric Keys
Numbers are used for time calibrating, data setting, age notating, and comment adding etc.
5.4.3. Alphabetic Keys
The system supports some language-specific characters through the use of SHIFT with a
combination of keys on the keyboard. Press any of these keys in the annotation mode and the
comment mode to display the corresponding character on the cursor position.
German Characters
Symbol Key Combination
ä
SHIFT-A
ö
SHIFT-S
ü
SHIFT-D
β
SHIFT-F
ñ
SHIFT-G
ø
SHIFT-H
French Characters
Symbol Key Combination
è
SHIFT-Z
à
SHIFT-X
ó
SHIFT-C
é
SHIFT-V
ç
SHIFT-B
å
SHIFT-N
Table 5-1 German and French Characters
5.4.4. Function Controls
Key Description
Acoustic power
Rotate this knob to adjust the acoustic power, 16 levels, 0 ~ 15 (by way of
changing power supply).
TGC sliders
Glide the slide controls to adjust the TGC, glide the upper segments to
adjust the near field gain, and the lower segments to adjust the far field
gain; glide rightward to increase TGC, and glide leftward to decrease.
Esc To escape
Preset
Preset key
Press this to activate or to deactivate the preset function.
Reference Section 5.7, Presetting.
