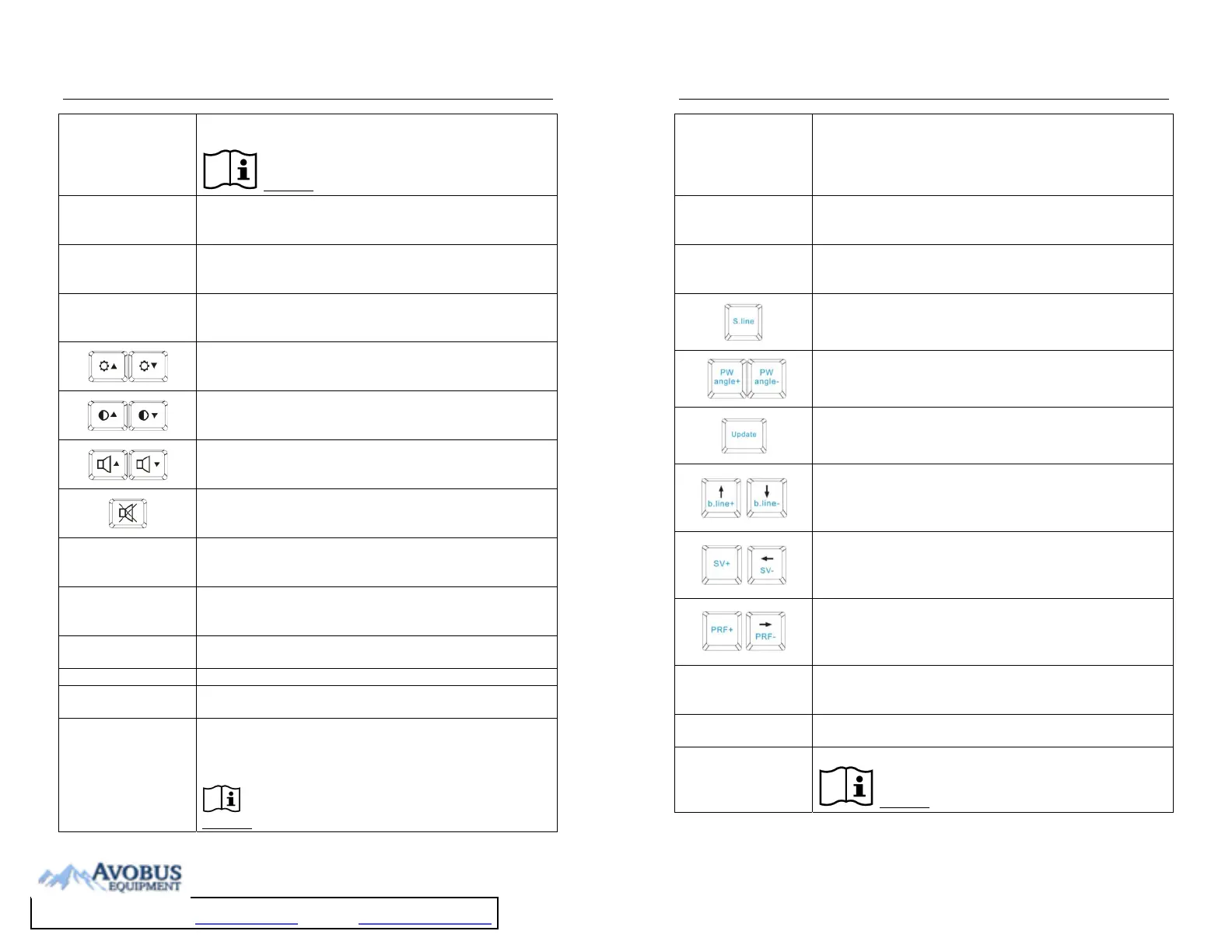

DUS 60 Digital Ultrasonic Diagnostic Imaging System User Manual System Control
- 28 -
File
File management key
Press this key to enter or to exit the file management system.
Reference Section 6.8, File Management.
THI
Tissue Harmonic Imaging Processing key
Press this key to do the image processing, shifting between tissue
harmonic imaging and general in real time.
TSI
Tissue Specific Imaging Processing key
Press this key to switch among general, muscle, fatty and fluid in real
time, adjust the acoustic speed to get the most satisfying image.
Colorize
Colorization key
Press this key to colorize the image.
Cobalt, Sage, Sepia, magenta, flame, tan, or gray.
Brightness adjusting keys
Press these two keys to adjust brightness. And the brightness symbol will
be displayed at the bottom of the screen
Contrast adjusting keys
Press these two keys to adjust contrast. And the contrast symbol will be
displayed at the bottom of the screen
Volume adjusting keys
Press these two keys to adjust volume in the PW mode. And the volume
symbol will be displayed at the bottom of the screen
Sound muting key
Press this to close the loudspeaker in the PW mode. And the mute
symbol will be displayed at the bottom of the screen
Space key
Space key
Press this key in the annotation mode and comment mode to introduce a
blank space on the cursor position.
Shift
Shift + Alphabetic key combination
Press SHIFT and an alphabetic key corresponding to the language’s
special character.
Caps Lock
Alphabetic Shift key
It is used to shift the characters between lowercase and uppercase.
Menu Press this to display or to hide the menu.
Exam
Examine Menu key
Press this key to display or to exit the examination type menu.
Probe
Probe Switch key
Diverse probes are available for this device. Press this key to select a
proper type of connected probe with the corresponding information in the
top right corner.
Reference
Figure 5-1 Typical Image Screen.
DUS 60 Digital Ultrasonic Diagnostic Imaging System User Manual System Control
- 29 -
Freq
Frequency Shift Key
Press this key to switch to the proper operating frequency for the
activated probe.
When you change the frequency, the G (gain) will change
simultaneously.
Enter
Entering key
In annotation mode and comment mode, press this key to move the
cursor to insert a blank line.
Del/Bksp
Delete key
In annotation mode and comment mode, press one of these two keys to
delete text word by word.
Sample line adjusting key
Press this to activate and adjust the sample line in the PW mode, and
adjust M mark in the B+M mode.
Angle adjusting keys
Press these two keys to adjust the correction angle in the PW mode.
In the PW mode, press this key to freeze or unfreeze the B mode image.
Baseline adjusting keys
Press these two keys to adjust the baseline in the PW mode.
Sample volume adjusting keys
Press these two keys to adjust the sample volume in the PW mode.
PRF adjusting keys
Press these two keys to adjust the PRF (Pulsed Repetition Frequency) in
the PW mode.
New patient
New Patient key
Press this key to cancel all the recent patient data, comments,
measurements, calculations and worksheet, except saved images.
Patient Info
Patient information annotation key
Press this key to open or to close the Patient Data Input Dialog box.
Quick Save
Press this key to save the current image.
Reference Section 6.8.1, Saving Images.
