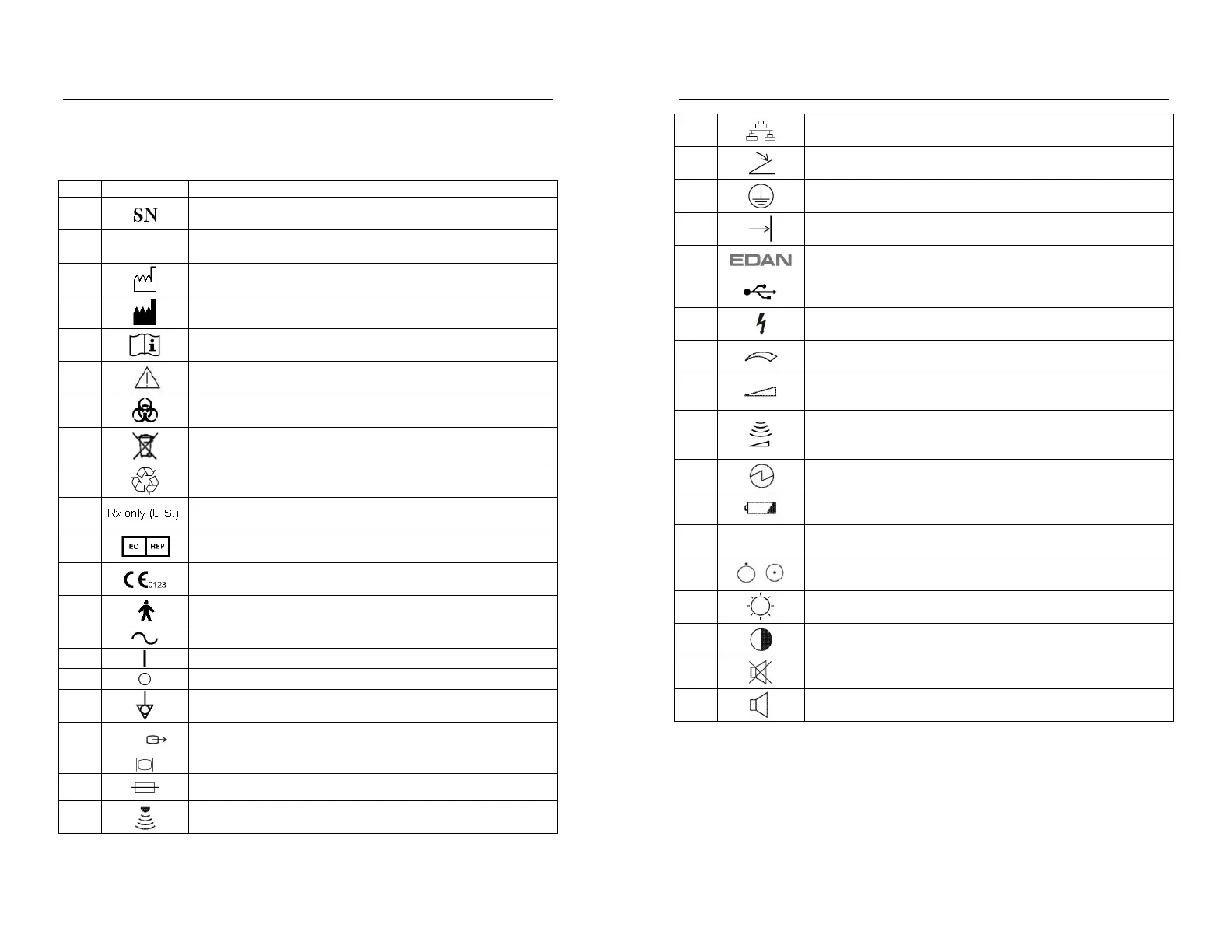

1.6. Labeling Symbols
Descriptions of symbols of the device are shown in table 1-1.
No. Symbol Definition
1
Serial Number
2
P/N
Part Number
3
Date of Manufacture
4
Manufacturer
5
Consult Instructions for Use
6
Symbol for “Caution”
7
Biological Risks
8
It indicates that the equipment should be sent to special agencies
according to local regulations for separate collection after its useful life.
9
General Symbol for Recovery / Recyclable
10
Federal (U.S.) law restricts this device to sale by or on the order of a
physician.
11
Authorized Representative in the European Community
12
The symbol indicates that the device complies with the European Council
Directive 93/42/EEC concerning medical devices.
13
Type B, Applied Part
14
Alternating Current (a.c.)
15
ON (AC power supply)
16
OFF (AC power supply)
17
Equipotentiality
18
VGA
VGA output, External Monitor
19
Fuse
20
Probe socket
DUS 60 Digital Ultrasonic Diagnostic Imaging System User Manual Introduction
- 9 -
21
Net work port
22
Foots witch
To identify a footswitch or the connection for a footswitch.
23
Protective earth (ground)
24
Recording on an information carrier
25
Trademark
26
USB (Universal Serial Bus) Connection
27
Dangerous voltage
28
Variability, for rotating movement
Rotate clockwise to increase the value, and counterclockwise to decrease.
29
Variability
Adjust right to increase the value, and left to decrease.
30
Variation of ultrasound energy
To adjust acoustic power
31
Electric energy
32
Battery check
33 IPX7
Degree of protection provided by enclosures (IP Code): temporary
immersion. For the probe but not including the probe connector.
34
/
Power off/on the system
35
Brightness
36
Contrast
37
Sound muting
38
Loudspeaker
To adjust volume in PW mode
Table 1-1 Descriptions of Symbols
