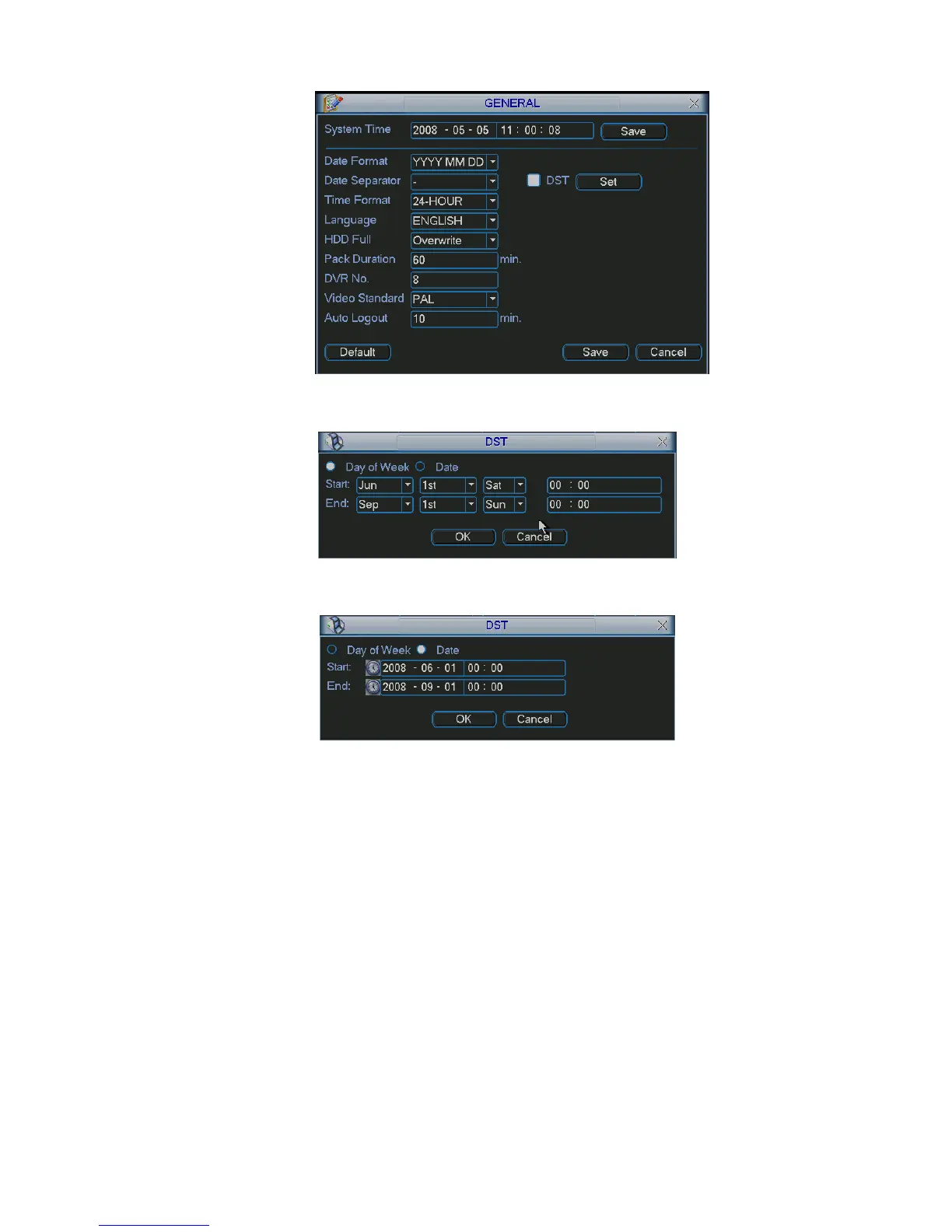

Figure 5-3
Figure 5-4
Figure 5-5
5.3.2 Encode
Encode setting includes the following items. See Figure 5-6.
Please note some series do not support extra stream.
Channel: Select the channel you want.
Compression: System supports H.264.
Resolution: System supports various resolutions, you can select from the dropdown list. For this
model, main stream supports D1/CIF/QCIF. Please note the resolution may vary due to different
channels. The extra stream supports QCIF only.
Frame rate: It ranges from 1f/s to 25f/s in NTSC mode and 1f/s to 30f/s in PAL mode.
Note:
For the 8-ch series DVR, you can refer to the following information:
If the 1-channel resolution is D1and the frame rate is more than 6f/s, then the rest seven channels (the
second channel to the eights channel) resolution shall be CIF or QCIF.
