After all the setups please click save button, system goes back to the previous menu.
Warning!
System menu color, language, time display mode, video format, IP address, user account will not
maintain previous setup after default operation!

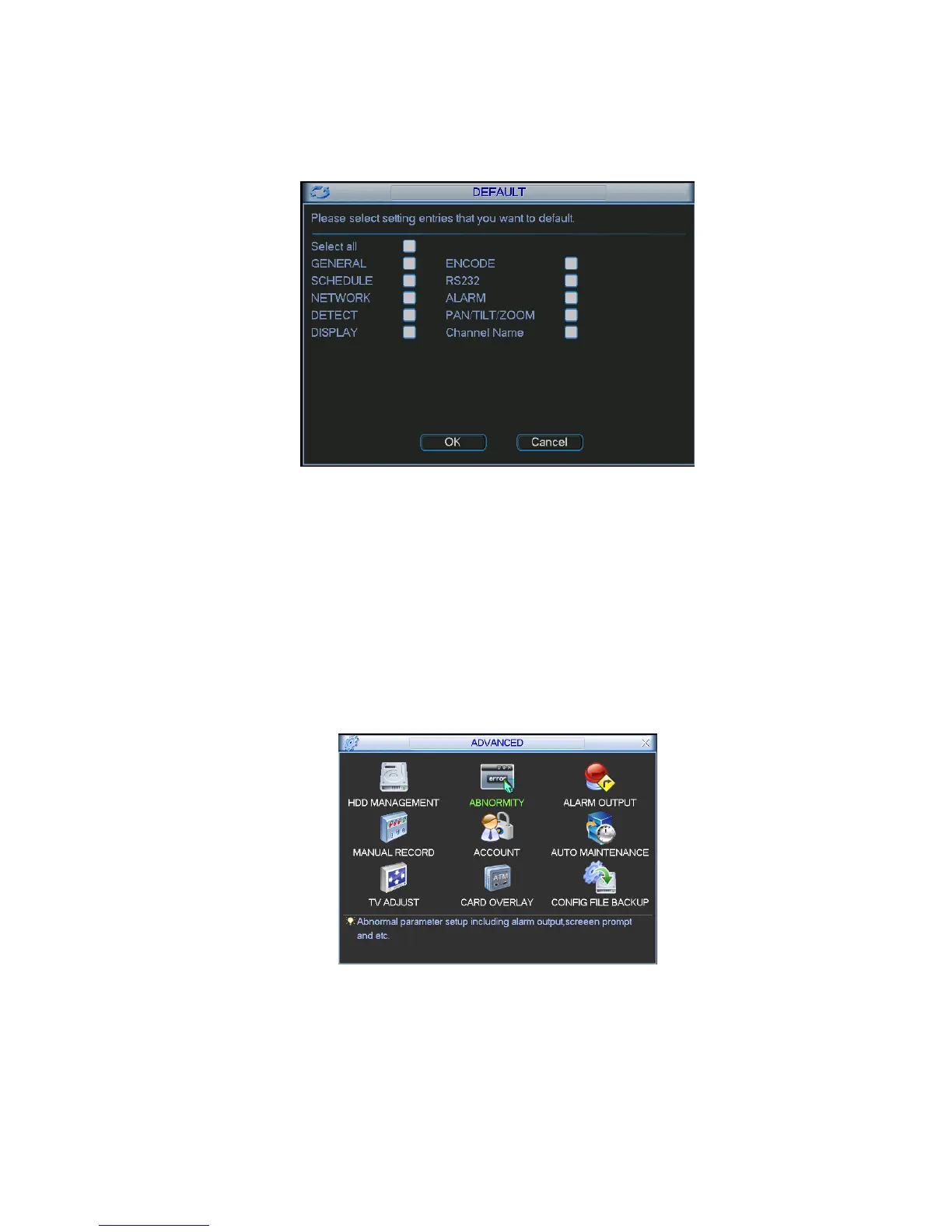

Figure 5-23
5.4 Search
Please refer to chapter 4.3 Search.
5.5 Advanced
Double click advanced icon in the main window, the interface is shown as below. See Figure 5-24.
There are total nine function keys: HDD management, alarm output, abnormity, manual record, account,
auto maintenance, TV adjust, card overlay and config file backup.
Figure 5-24
5.5.1 HDD Management
Here is for you to view and implement hard disk management. See Figure 5-25.
You can see current HDD type, status, capacity and record time. When HDD is working properly,
system is shown as O. When HDD error occurred, system is shown as X.
You can select HDD mode from the dropdown list such as read-only or you can erase all data in the
HDD.
