EFI E-35A - Figure 9: USB Connection between Printer and E-35 A

27 Installation and Service Guide
Installing Hardware
5 Set the switch on the printer interface board to the ON position.

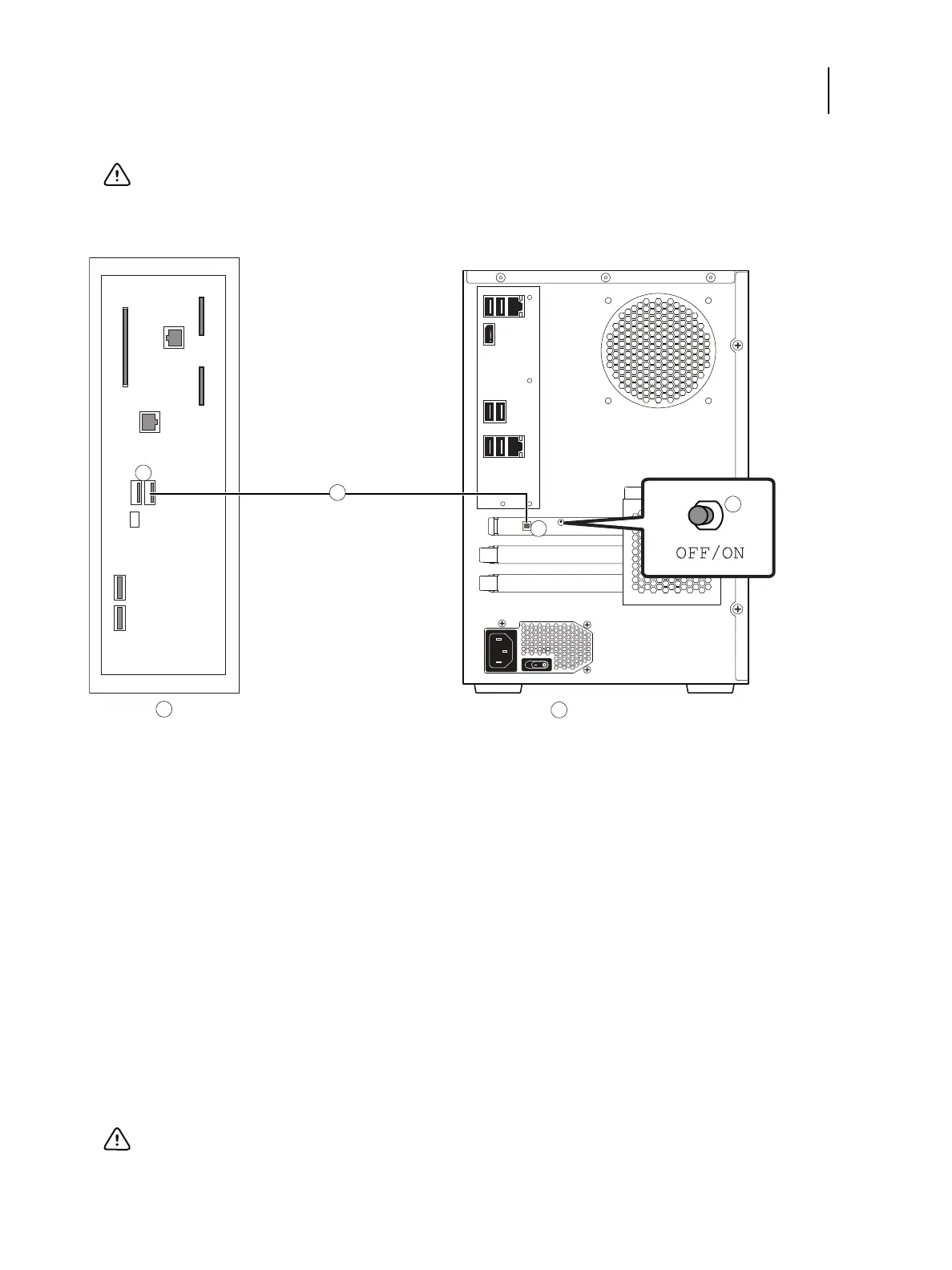

Figure 9: USB connection between printer and E-35A
6 Power on the printer.
The E-35A automatically starts up.
To disable the power synchronization
1 Turn off the printer using the main power switch.
Wait until the E-35A shuts down.
2 Make sure that the power switch on the connector panel of the E-35A is OFF position (|).
3 Set the switch on the printer interface board to the OFF position.
Important: Do not change the switch position when the E-35A is powered on.
A printer connector panel B E-35A connector panel
1 Type A USB ports 3 Type B USB port on the printer interface board
2 USB cable 4 Power synchronization OFF/ON switch on the printer
interface board. Default position is ON.

ON: Right 
OFF: Left
Important: Do not change the switch position when the E-35A is powered on.
A
B
4
2
1
3
