Hardware Overview
Document ID: OMM-00165 Rev. C Pro 32r Operations Guide 26
Each end of the air shaft is inserted into and supported by a chuck.
1. Open the chuck to release or reload the shaft roller, then push the chuck sideways.
2. Close the chuck and put it back into the closed position.
3. Load the media, then fill air into the shaft by inserting the air gun into the air inlet.
4. To release the media, release air by pressing the air outlet (refer to ) for more details).
Figure 3-5

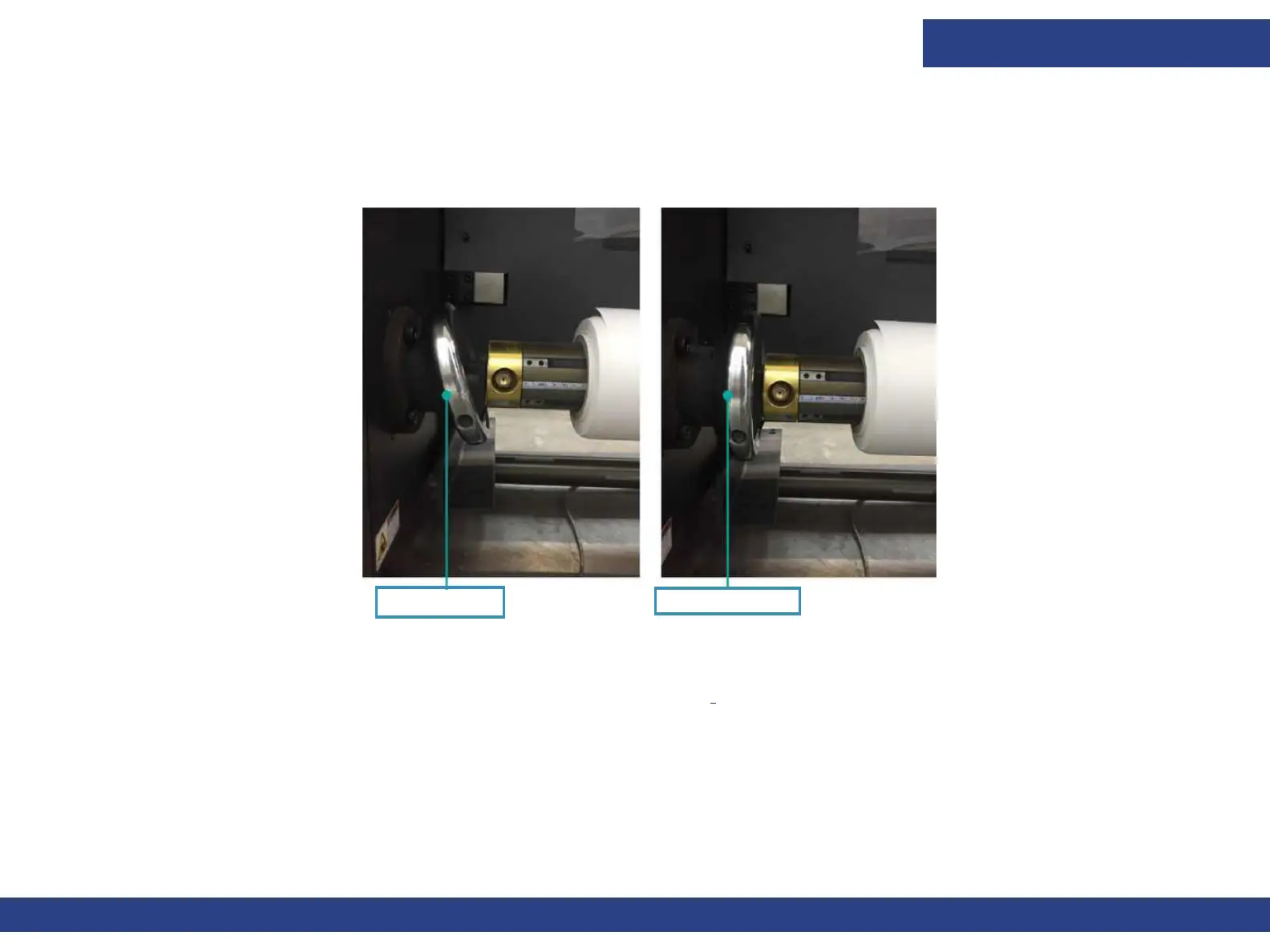

Chuck - Open
Chuck - Closed
