EFI Pro 32r User Manual

Hardware Overview
Document ID: OMM-00165 Rev. C Pro 32r Operations Guide 35

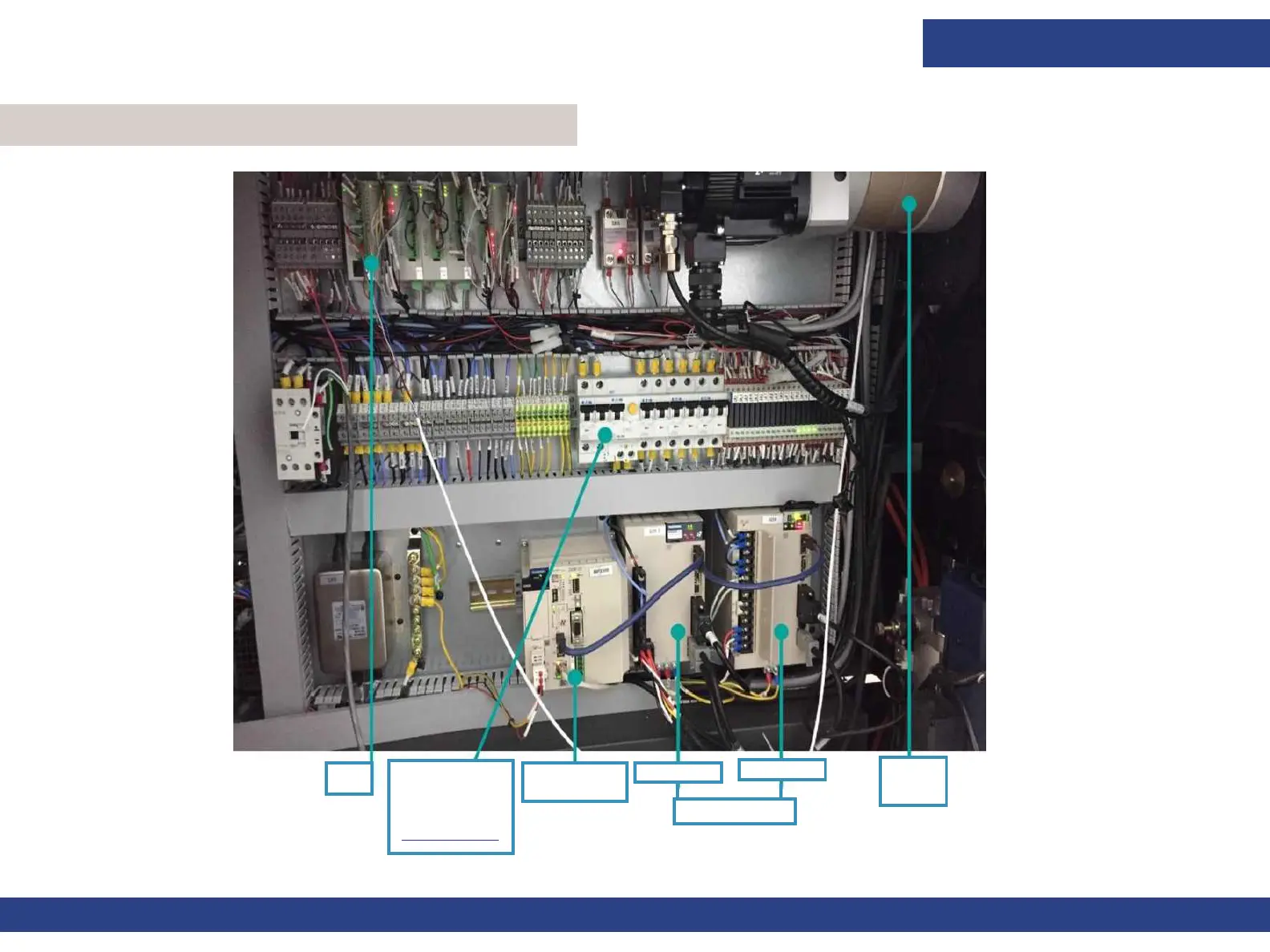

The electric panel is located at the rear left side of the printer.
Figure 3-15
PLC
Driver
Controller
Y&T Axis
X Axis
Y Axis
Motor
Main Power
Circuit Breaker
Switch - See
Figure 3-16
Servo Driver
3.5 Electric/Motion Control Panel

EFI Pro 32r Specifications

General

Resolution	Up to 1200 dpi
Ink Type	EFI ProGraphics UV Inks
Print Width	3.2 meters
Maximum Print Width	3.2 meters
Connectivity	Ethernet
Operating Systems	Windows
Technology	Piezo Drop-on-demand Inkjet
