Hardware Overview
Document ID: OMM-00165 Rev. C Pro 32r Operations Guide 41
The control buttons for the pinch roller, wings, vacuum regulator and lights are located at the front of the workstation.
3.9.1 Vacuum Regulator
Set the Vacuum level according to media:
• Single or Multi roll printing
• Width (wider media = use lower vacuum)
• Weight (heavier media = use lower vacuum)
• Polyethylene (PE): Work with wings UP
See Air Pressure Gauges for recommended vacuum values.
3.9 Front Control Buttons & Vacuum Knob

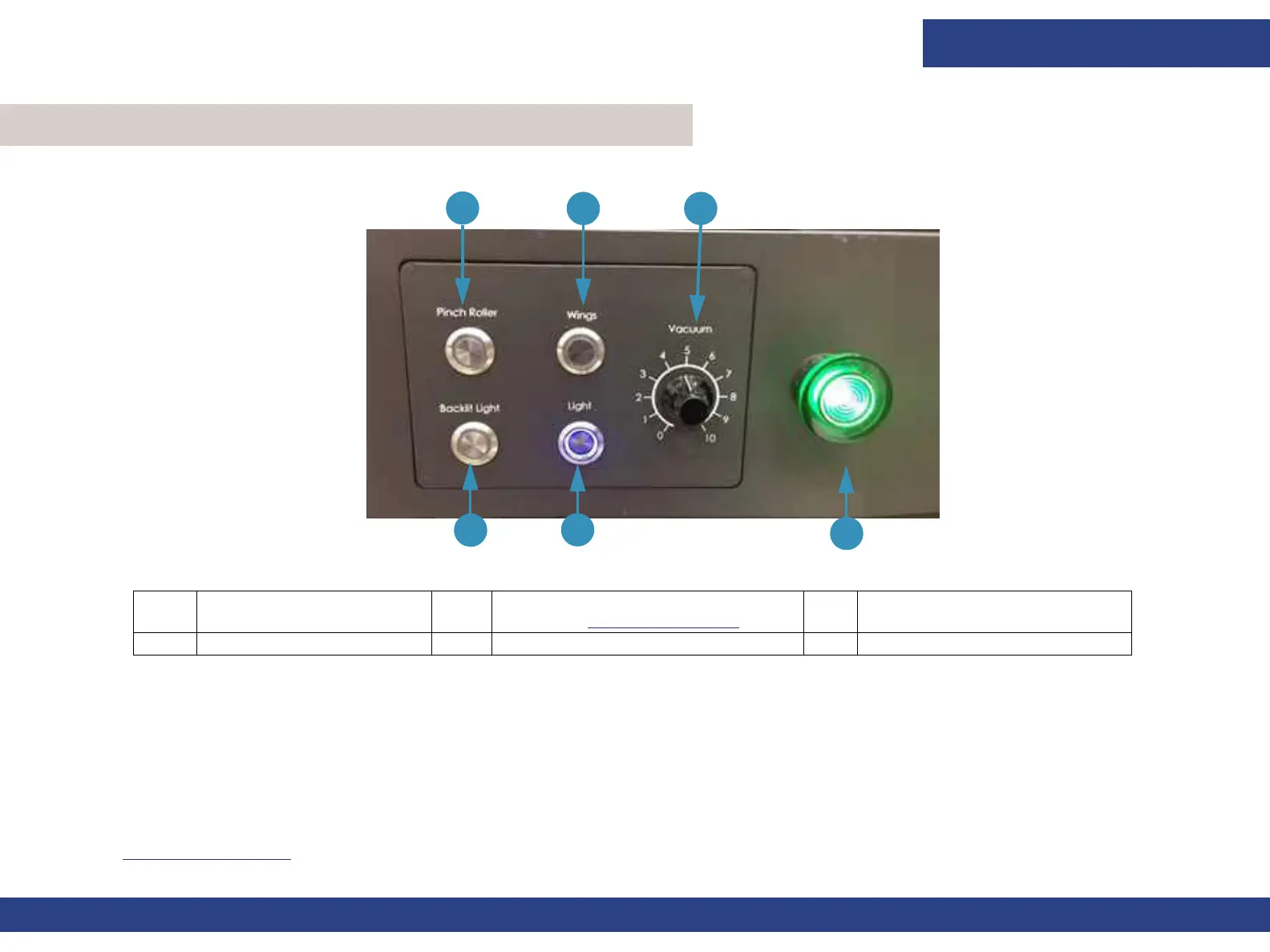

Figure 3-21
1 Open/closes pinch roller 3 Controls vacuum level of the print
table. See Vacuum Regulator
5 Turns light on print table on/off
2 Raise/lowers wings 4 Turns backlight on/off 6 Turns on the printer
1
2
3
4
5
6
