Hardware Overview

Document ID: OMM-00165 Rev. C Pro 32r Operations Guide 25

The Printer comprises a rear set and a front set of the following:

• Air Shaft

• Pinch Roller

• Tension Roller

3.2.1 Air Shaft

• The media is loaded on the rear air shaft and collected on the front air shaft.

• The rubber bladders on the air shaft expand when filled with air in order to hold the loaded media core in place.

• There is a ruler on each end of the air shaft to show the location of the media edge relative to the shaft.

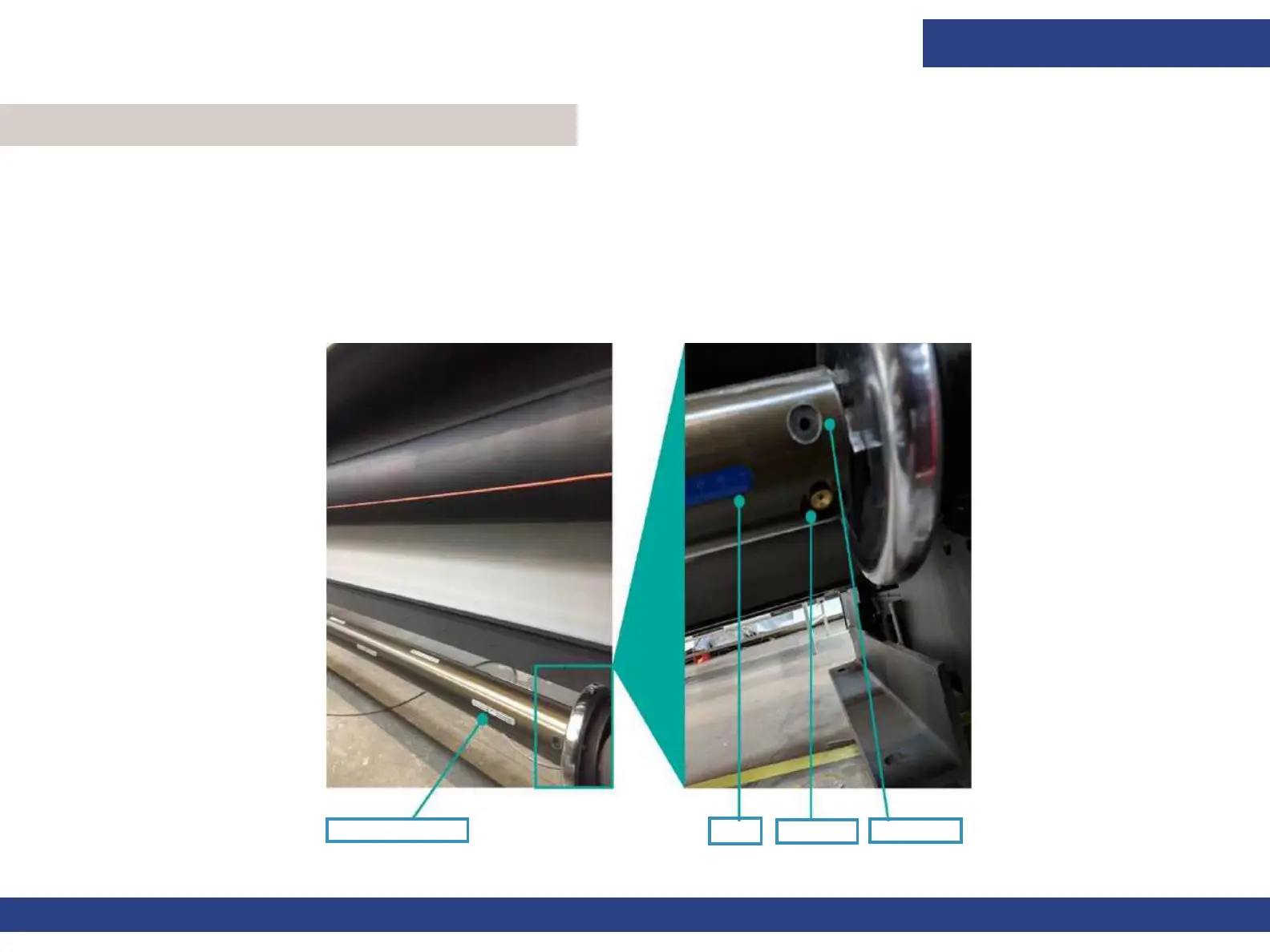

Figure 3-4

Rubber Bladder

Ruler Air Inlet

Air Outlet

3.2 Printer Rollers and Shafts
