Printer Setup
Document ID: OMM-00165 Rev. C Pro 32r Operations Guide 95
For example: If you print 1 cycle in 3PassFine, and you get the following result:
• You can see the marks of the most concentrated part of the pattern in each row.
• In the second row, you can see that the most concentrated part is between 0 to -4, i.e. -2.
• Find the average value in your marks. In this example it is -2 - -3.
• Finding that, you should now subtract 3 from the value in the For 3 Pass Modes field, in the Advance Fine Tuning group.
6. Print the pattern again and make further adjustments if required.
NOTE: During printing, all the pass values are inactive, except for the one being used. You can adjust the fine
tuning during printing.

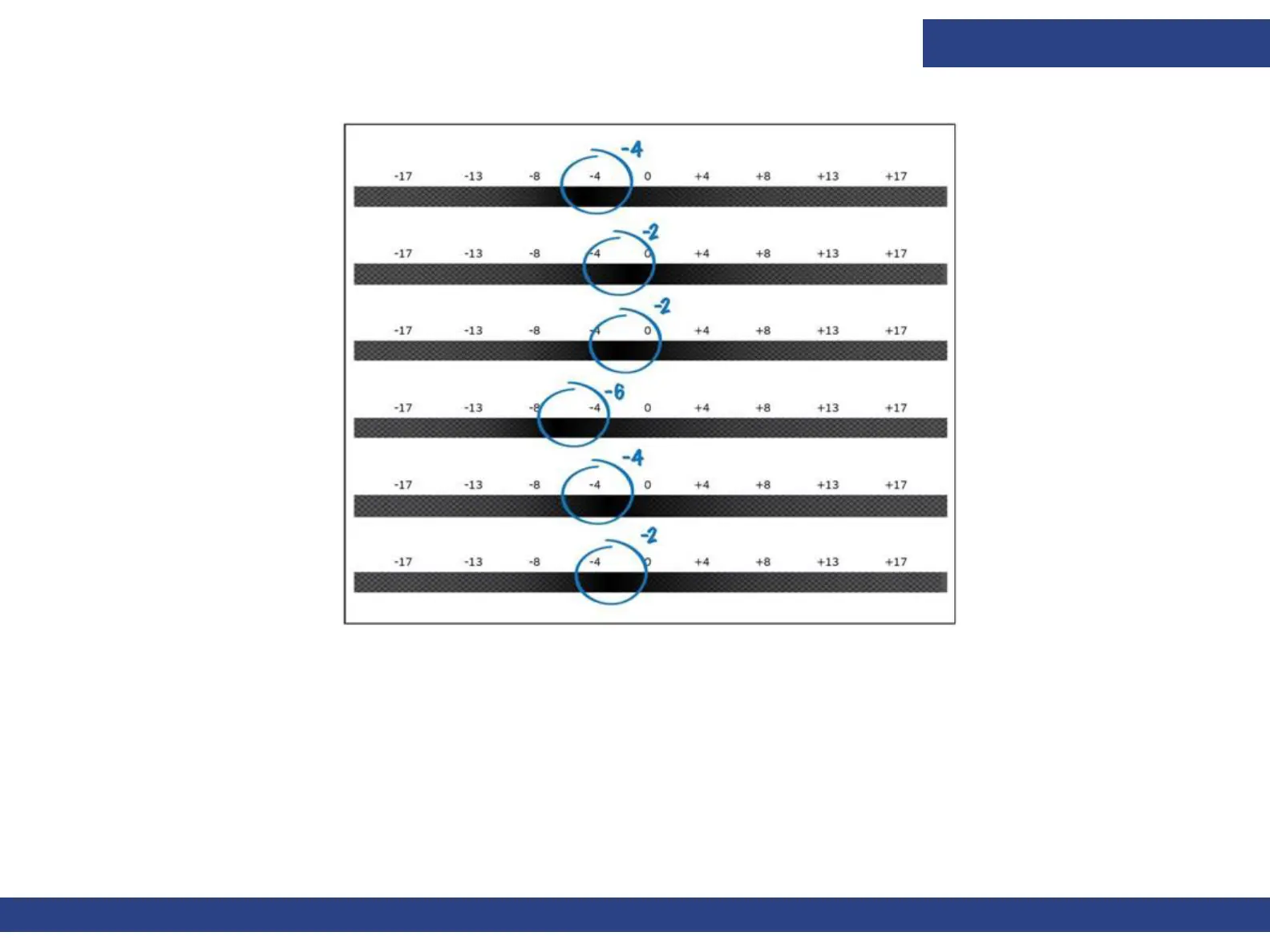

Figure 5-23 : Sample Print 1 cycle in 3PassFine
