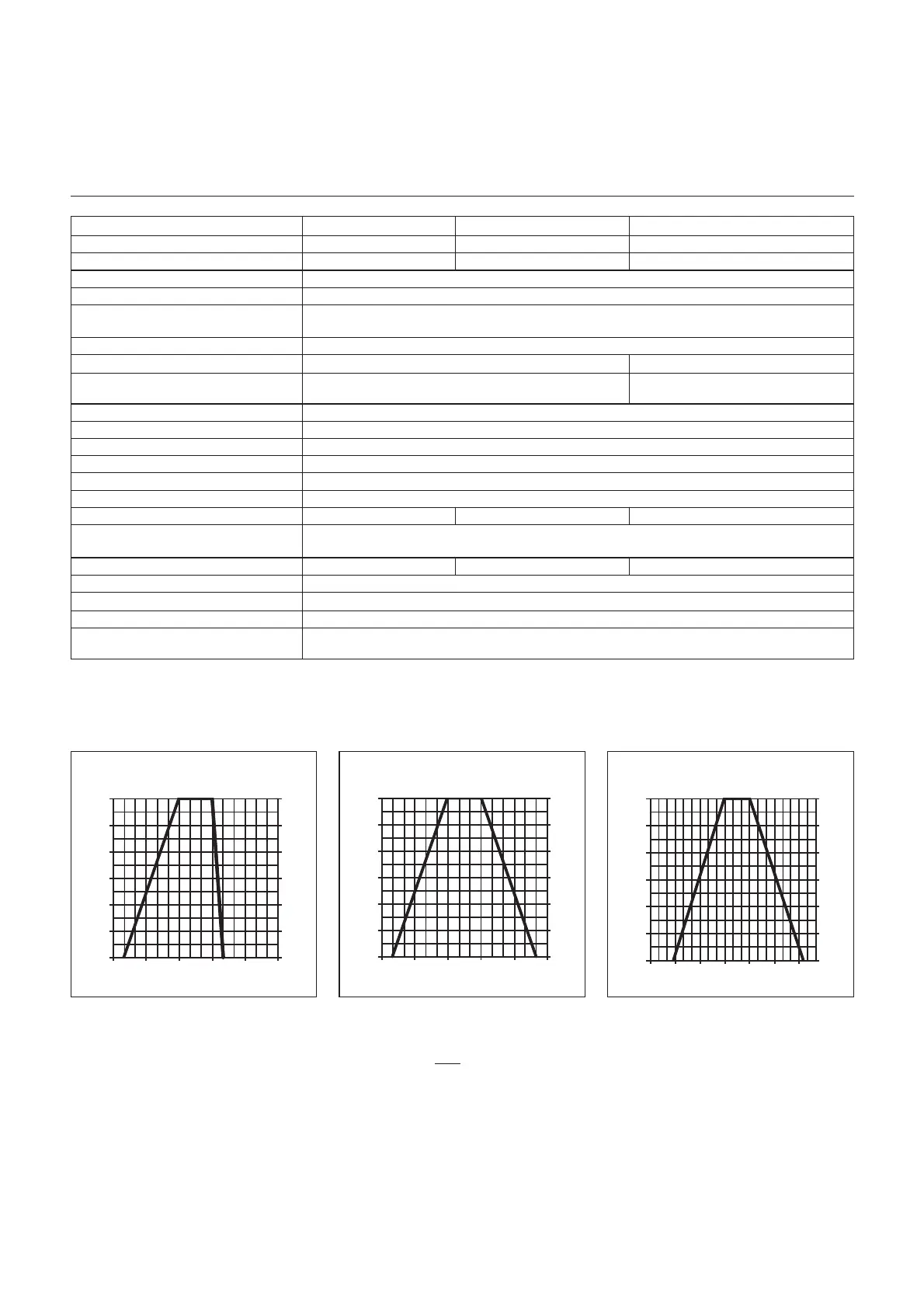

Power graphs
Boiler efficiency should be taken
into consideration when selecting
the burner.
Power graph indicates burner power
dependent on furnace pressure. They
correspond to the maximum EN
676-compliant values, as measured at
the test combustion chamber.
Calculation of burner power:
Q
F
= Burner power (kW)
Q
N
= Boiler rated power (kW)
η = Boiler efficiency (%)
Overview
Technical Data
Power graphs
daPa mbar
kW
300
1600
0
2
4
6
8
10
12
0
20
40
60
80
100
120
200 500 800 1100 1400 1700
VGL 06.1600 DP
daPa mbar
kW
480
2050
0
2
4
6
8
10
12
0
20
40
60
80
100
120
200 500 800 1100 1400 1700 2000
VGL 06.2100 DP
VGL 06.1200 DP VGL 06.1600 DP VGL 06.2100 DP
Burner power min.-max. kW
300 - 1200 300 - 1600 480 - 2050
Regulation range Gas/Oil
1 : 3/1 : 2 * 1 : 3/1 : 2 * 1 : 3/1 : 2 *
Gas flow pressure mbar
20 - 50- 100
Gas valve assembly module
MBVEF 412/MBVEF 420/VGD20 Rp2/VGD40 DN65
/VGD40 DN80
Fuel
Natural gas (LL, E) H
i
= 8.83 - 10.35 kWh/m
3
or propane gas (F) H
i
= 25.89 kWh/m
3
Fuel-oil EL conforming to country regulations
Control and safety unit/flame monitor
LFL 1.333
Burner motor
2800 min
-1
, 230/400 V, 50 Hz, 2.2 kW
2800 min
-1
, 230/400 V, 50 Hz, 2.5
kW
Power consumption
Operation
2840 W 3380 W
Protection level IP54
Ignition transformer EBI-M; 2 x 7.5 kV
Air flap servomotor SQM 50. 481
Air pressure switch LGW 10 A 2
Blast tube diameter x Insertion depth mm
227 x 270 (KN)/370 (KM)/470 (KL)
Weight kg in total 130 kg
CE Mark 1312 BM 3426 1312 BM 3427 1312 BM 3428
Testing
In accordance with EN 676; Emission class 3 for gas operation
In accordance with EN 267; Emission class 1 for oil operation
Sound level conforms to VDI2715 dB(A) 78 79 81
Max. ambient temperature 60° C
Oil pump motor
0.45 kW; 2800 min
-1
; 230 V
Fuel-oil pump AJ6 CC1004 3P; 290l/h
Hose conduits Between system and oil pressure pump: 2 x L1500; M16x1.5 - R1/2
Between oil pressure pump and burner head: 1x L1300; M14x1.5 - M14x1.5
* The control ratio is a medium value and may change according to installation conditions.
Note on type designation:
G = Natural gas
L = Fuel oil EL
06 = Size
1200 = Power rating
DP = modulating operation
KN = Normal burner head length
KM = Medium burner head length
KL = Long burner head length
daPa mbar
kW
300
1200
0
2
4
6
8
10
12
0
20
40
60
80
100
120
200 500 800 1100 1400 1700
VGL 06.1200 DP
Q
N
Q
F
= x100
η
