Overview

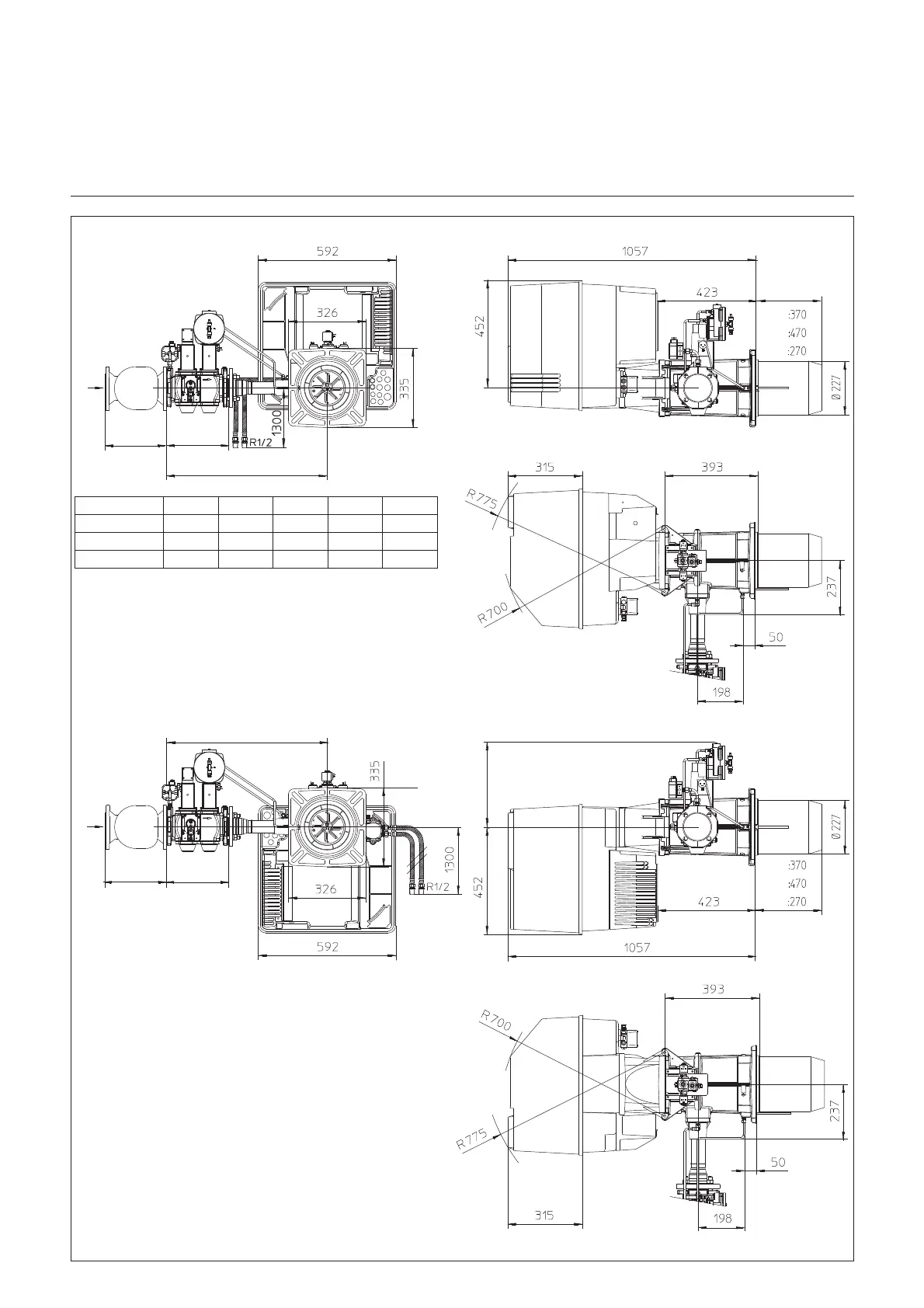

Dimensional drawings and measurements
VGL 06.1200/1600/2100 DP
with gas valve VGD20-Rp2, VGD40-DN65, VGD40-DN80
Space requirements
There should be a space of no less
than 0.8 metre on each side of the
burner for maintenance purposes.
Gas valve assembly
The valve assembly can be fitted on the
left or the right.
DEFGH
VGD20.053 186 292 734 344 Rp2
VGD40.065 290 292 740 365 DN65
VGD40.080 320 312 746 375 DN80
