1.2. EKB2 Keypad Overview

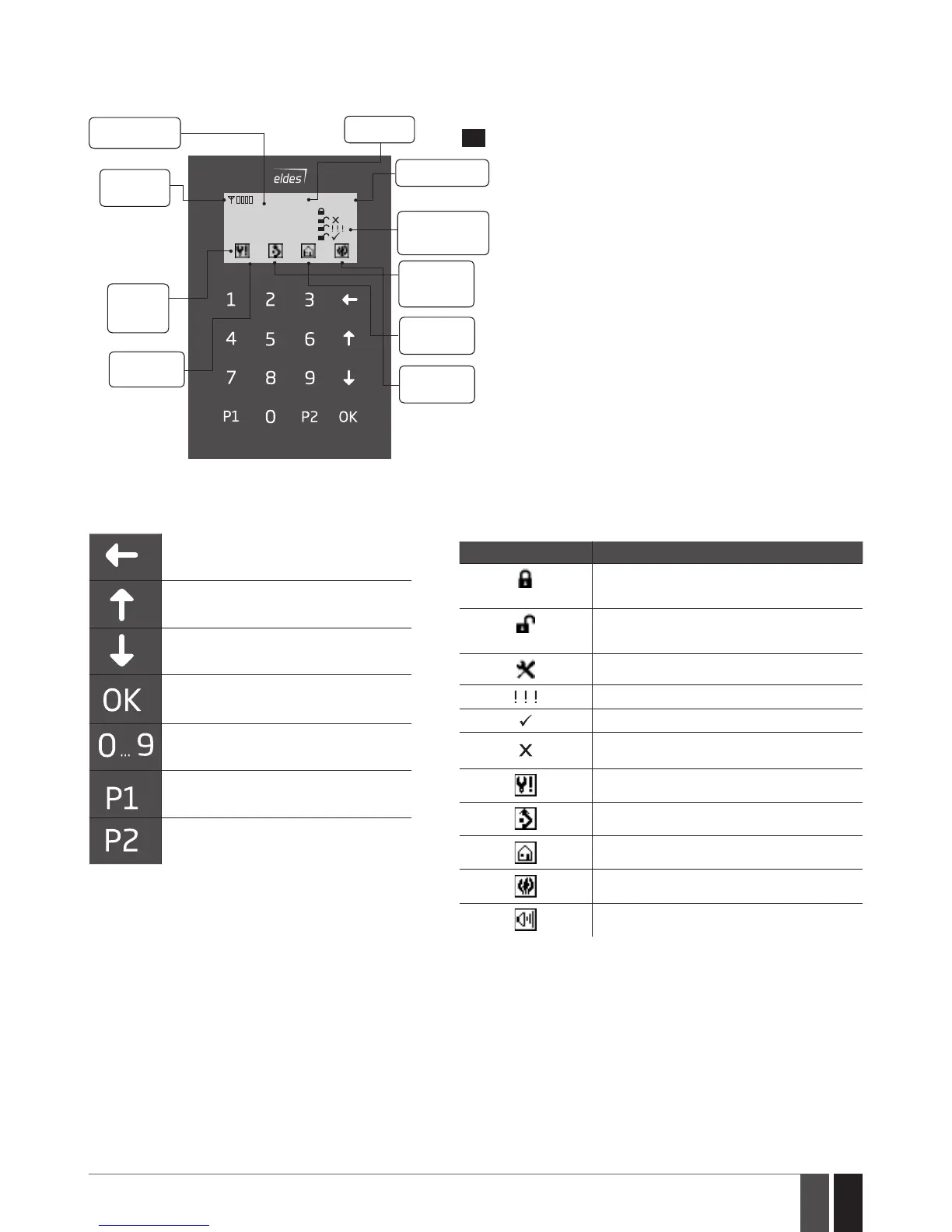

EKB2 is an LCD keypad intended for using with ESIM364 alarm system.
Bypassed
violated zone
(-s)
System
STAY-armed
Fire-type zone
violated
System
fault (-s) is
present
GARAGE
KITCHEN
BEDROOM
CORRIDOR
00:4520,2
0
C
GSM signal
strength
System status
and alarm
indication
Home screen
view
Custom keypad
partition title
Digital clock
Temperature
1
Main Messages & Icons
Icon Description
(by default - disabled)
Partition is armed and menu is locked
(by default - disabled)
Partition is disarmed and menu is unlocked
Conguration mode activated
Zone or tamper alarm in partition
Partition is ready to be armed.
Partition is not ready to be armed – one or
more zones / tampers violated.
One or more system faults present
One or more violated zones bypassed
One or more partitions STAY-armed
One or more Fire-type zones violated
Alarms in alarm log present
One menu level back / cancel
Menu navigation – up
Menu navigation – down
Conrm (enter) value
Value typing
Minus character to enter negative temp.
value
Additional menu / minus character to
enter negative temp. value
Keys Functionality
