EKB2 LCD screen is intended for displaying alarm system status messages and alerts. Icon is displayed on the screen that no zones and/
or tampers are violated and the partition is prepared for arming. Icon shows up in case of zone violation or icon if system faults are
present. The partition cannot be armed until the violated zone (-s) is restored, disabled, bypassed or set up to operate under Force mode or
violated tamper (-s) is restored. By default, the following faults allow partition arming if present:
• mains power is lost.
• low battery.
• battery dead or missing.
• battery failed.
• siren failed.
• date/time not set.
• GSM connection failed.
• GSM/GPRS antenna failed.
• Keypad lost.
Audio Indication
The built-in buzzer uses two types of sound signals – three short beeps and one long beep. Three short beeps stand for successfully carried
out conguration command, one long beep – for invalid conguration command. In addition, the buzzer emits short beeps in case of alarm.
Visual Indication
EKB2 can be used even in dark premises as the LCD screen and keys are illuminated continuously. The illumination level lowers down if 3 min-
utes after the last key-touch expires while the system is disarmed. In case of alarm, the keypad illumination level is boosted and stays in this
state until the system is disarmed.

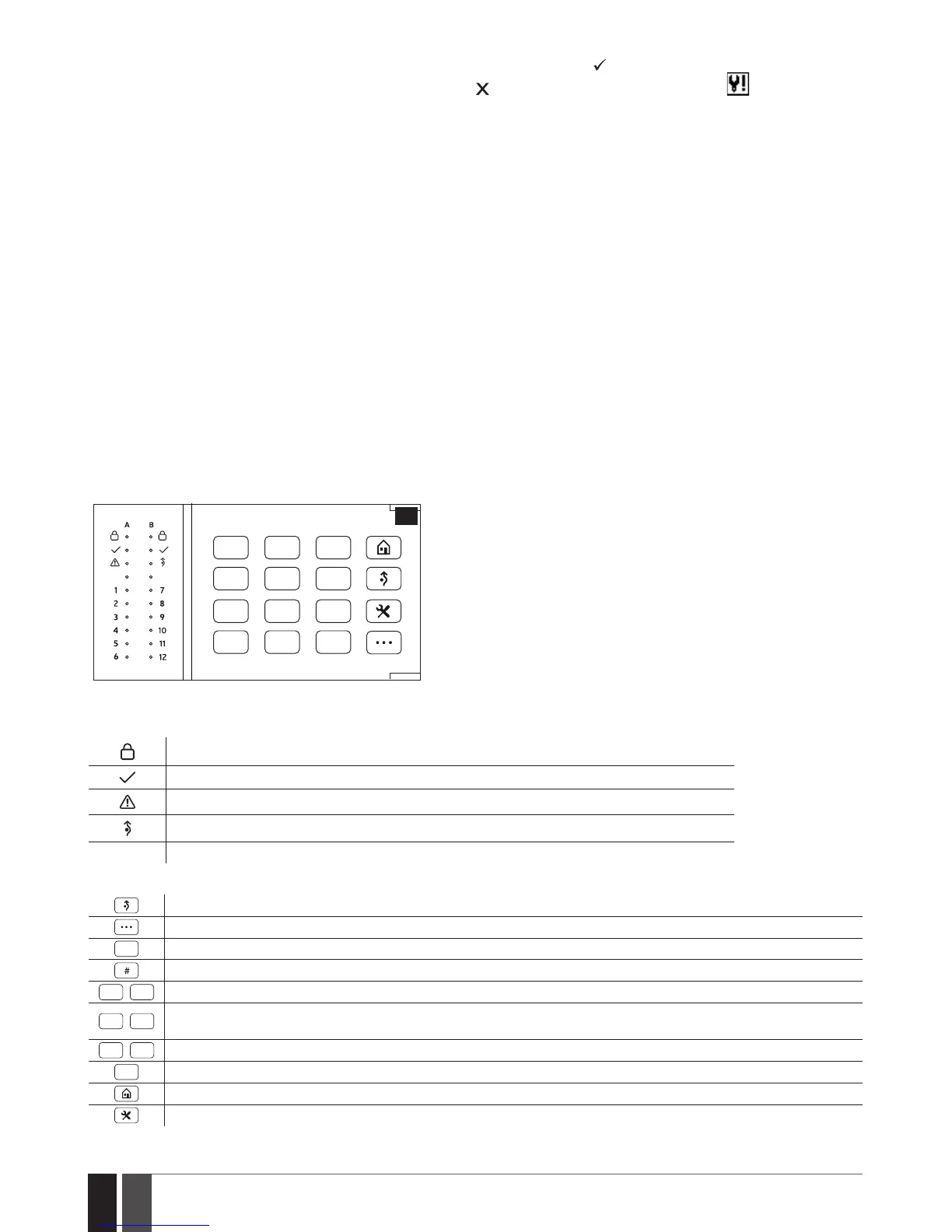

1.3. EKB3/EKB3W Keypad Overview
EKB3/EKB3W is a LED keypad intended for using with ESIM364 alarm system.
1 2 3
4 5 6
7 8 9
*
0 #
2
LED Functionality
Steady ON - alarm system is armed / exit delay in progress; ashing - Conguration mode activated
Steady ON - system is ready – no violated zones and tampers
Steady ON - system faults; ashing - violated high-numbered zones
Steady ON - zone bypass mode
1-12 Steady ON - violated zone
Keys Functionality
Bypass violated zone
System fault list / violated high-numbered zone indication / violated tamper indication
*
Clear typed in characters
Conrm (enter) command
To Next Page
