Electrolux EWF1284EDW - TC3 STYLING; General Characteristics

Technical Support - MDM 18/97 599 76 11-68 Rev. 01
4 TC3 STYLING
4.1 EWM09312 General characteristics
The TC3 styling has a single ON/OFF button, all the other choices/adjustments are made by skimming your
finger over the touch sensors, which replace the buttons used so far.
In the event of problems with the touch sensors (difficulty selecting/adjusting them), clean and dry the display
and do not wear gloves when setting the chosen programme.
The EWM09312 electronic control system consists of two circuit boards plus the motor control (Inverter) for
washing machines, whereas a further board is used in washer dryers for the part dedicated to drying.

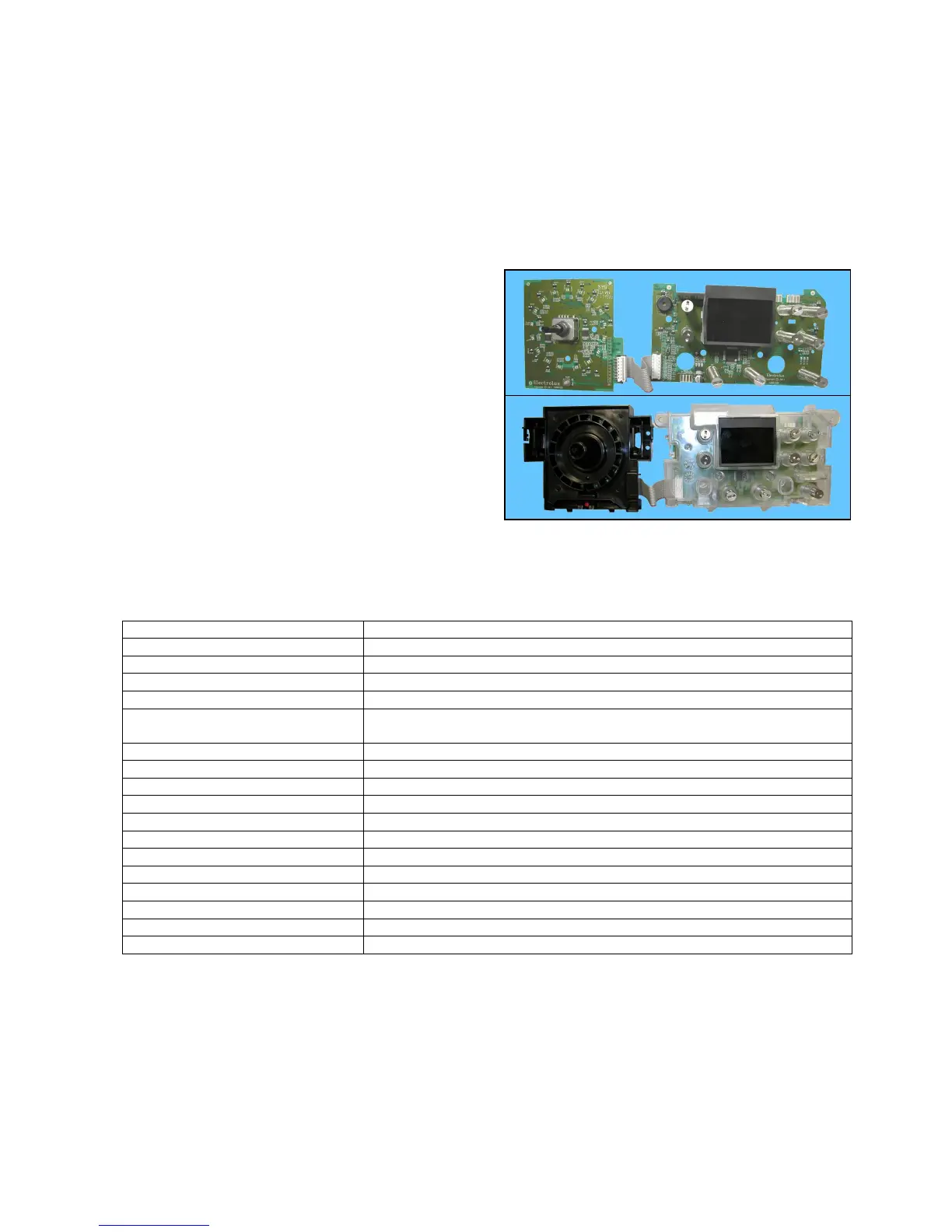

 The control/display circuit board, inserted in a
plastic box, secured to the control panel (the
figure illustrates the display board with the side
socket in which the selector is fixed, connected
together by a flat cable and the display board
assembly).
 The main circuit board is positioned at the rear of the appliance, receives commands from the display
board, and powers the electrical components as well as communicating with the motor control board
(Inverter) in washing machines, while it also communicates with the board which controls the drying
phase in washer dryers.
No. of buttons
 Max 1 (ON/OFF)
No. of sensors
 Maximum 9 (8 options + 1 start/pause)
No. LEDs
 Maximum 22 + LCD
Programme selector
 14 positions (incorporated in the circuit board)
Serial port
 DAAS-EAP communication protocol up to 115,200 baud
Power supply voltage
 220/240 V
 50/60 Hz (configurable)
Washing type
 Traditional with “Eco-ball”
Rinsing system
 Traditional with “Eco-ball”
Motor
 Collector, with tachometric generator (Universal)
Spin speed
 400 ÷ 1,400 rpm
Anti-unbalancing system
 AGS
Cold water fill
 1 solenoid valve with 1 inlet – 2 outlets
Detergent dispenser
 3 compartments: pre-wash, wash, conditioners
Control of water level in the tub
 Electronic/analogue pressure switch
Door safety interlock
 Traditional
Heating element heat output
 1,950 W with thermal fuses incorporated
Temperature check
 NTC probe incorporated in the heating element
Buzzer
 Traditional incorporated in the PCB
