Technical Support - MDM 80/97 599 76 11-68 Rev. 01

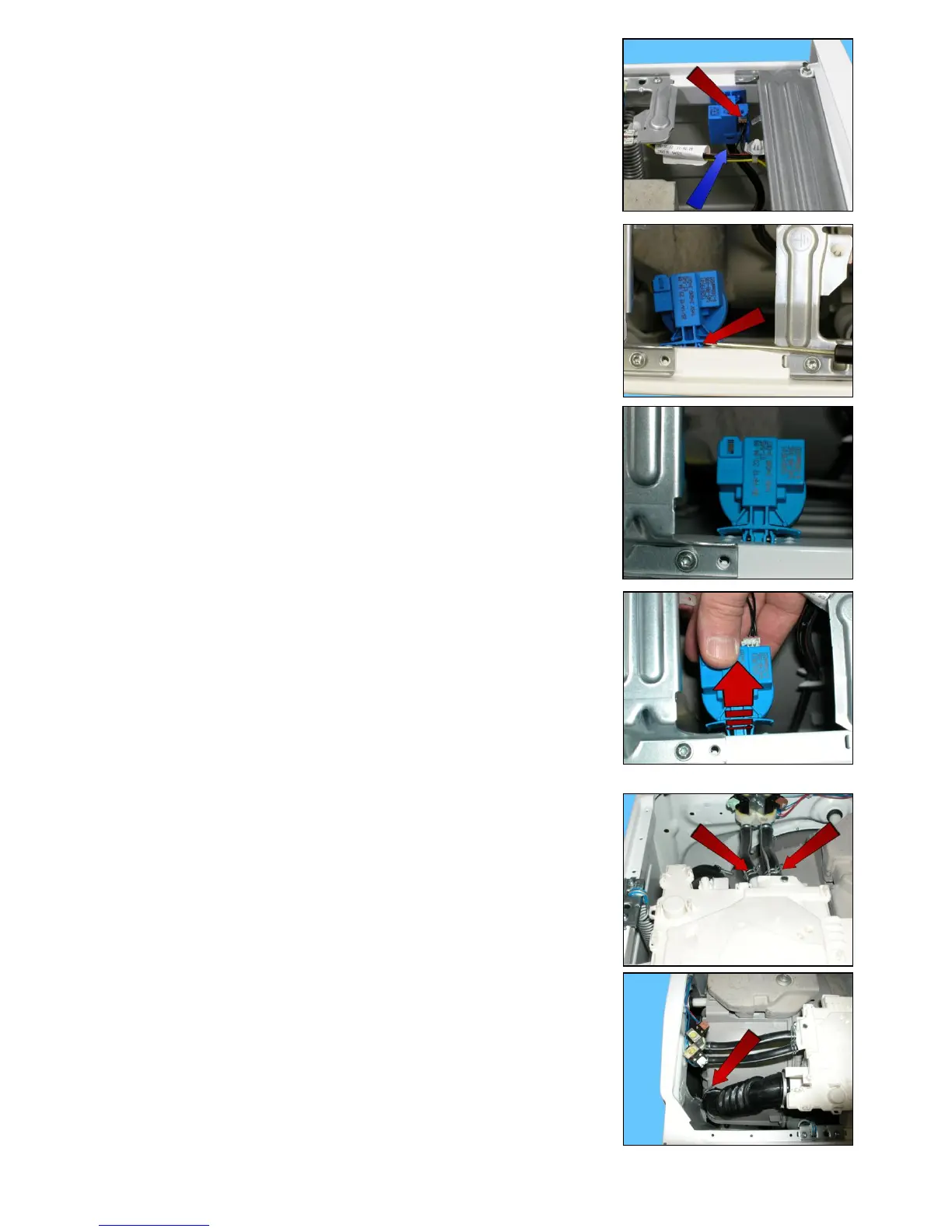

14.2.6 Analogue pressure switch
Remove the worktop (see relevant paragraph).
Remove the connector (red arrow)
Pull out the small pipe which connects it to the pressure chamber (blue arrow).
Tighten the tabs which secure it to the cabinet, first on one side,
then on the other.
Take it out.
14.2.7 Short detergent dispenser
Remove the worktop (see relevant paragraph).
Remove the pipes that connect it to the solenoid valve.
Unfasten the screw in the clamp that fixes the detergent loading pipe
to the tray, and remove it from its housing.
Extract the detergent dispenser.
