Electrolux EWF1284EDW - Phases of the Diagnostics Test

Technical Support - MDM 29/97 599 76 11-68 Rev. 01
6.4 Phases of the diagnostics test
Irrespective of the type of circuit board and the configuration of the selector, after entering the diagnostic mode,
turn the programme selector dial clockwise to perform the diagnostic cycle for the operation of the various
components and to read any alarms.
Concurrently, a selector control code is shown on the LCD display, which indicates for two seconds the
description in the last column of the table below.
(All alarms are enabled in the diagnostic cycle.)

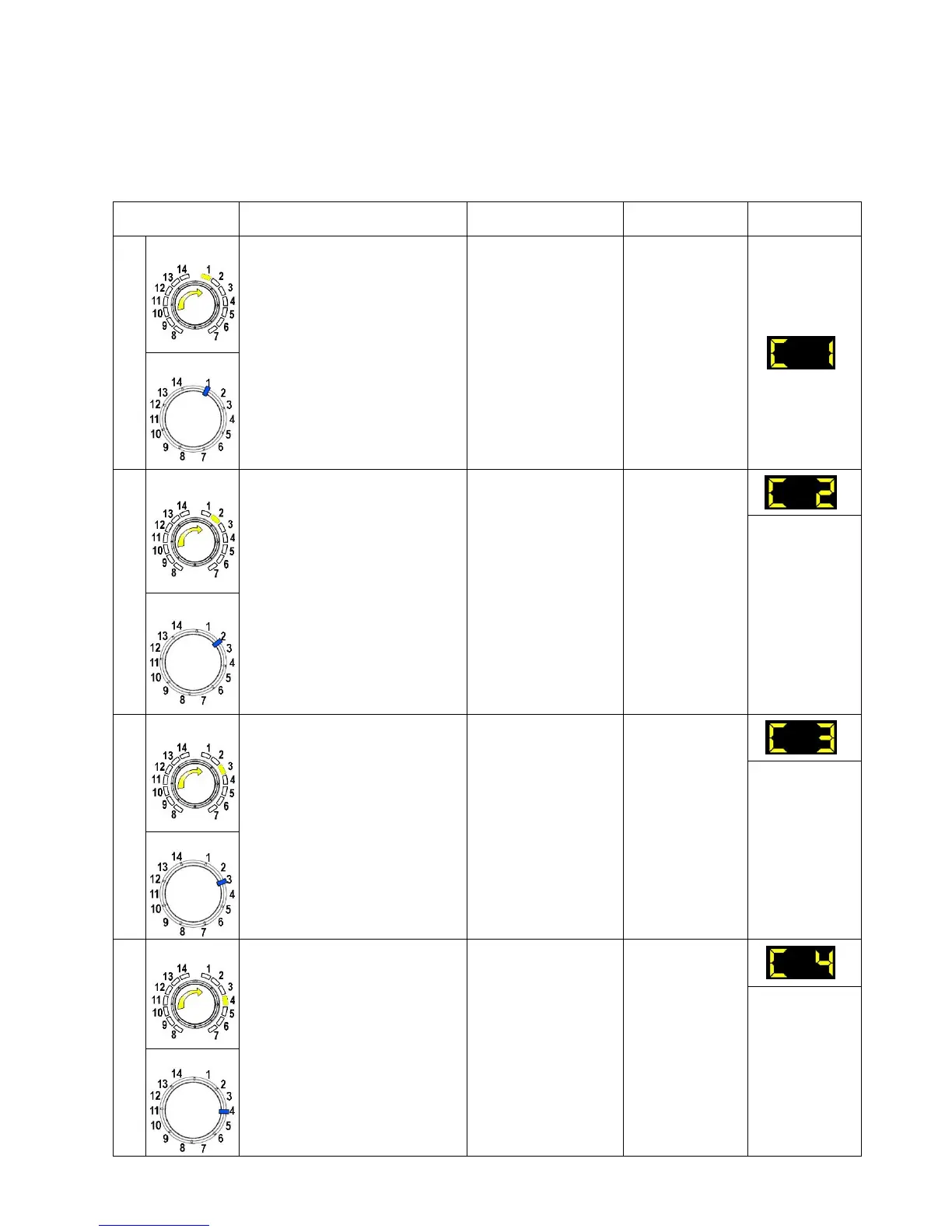

Selector
position
Components activated
Working conditions
Function tested
LCD display
1
TC3
- The LEDs, groups of symbols
in the LCD screen and the
backlight of the display are
turned on in sequence
- Touch a sensor to turn on
the group of icons in the LCD
screen or the corresponding
LED and the buzzer sounds
at the same time
Always active
User interface
functioning
TC4
2
TC3
- Door safety interlock
- Wash solenoid valve
Door closed
Water level below
anti-flooding level
Maximum time 5 min.
Water fill to wash
compartment
Water level in
the tub (mm)
TC4
3
TC3
- Door safety interlock
- Pre-wash solenoid valve
Door closed
Water level below
anti-flooding level
Maximum time 5 min.
Water fill to
pre-wash
compartment
Water level in
the tub (mm)
TC4
4
TC3
- Door safety interlock
- Solenoid valve pre-wash
and wash
Door closed
Water level below
anti-flooding level
Maximum time 5 min.
Water fill to
conditioner
compartment
Water level in
the tub (mm)
TC4
