Electrolux EWF1284EDW - TECHNICAL CHARACTERISTICS; Construction and Components

Technical Support - MDM 40/97 599 76 11-68 Rev. 01
10 TECHNICAL CHARACTERISTICS

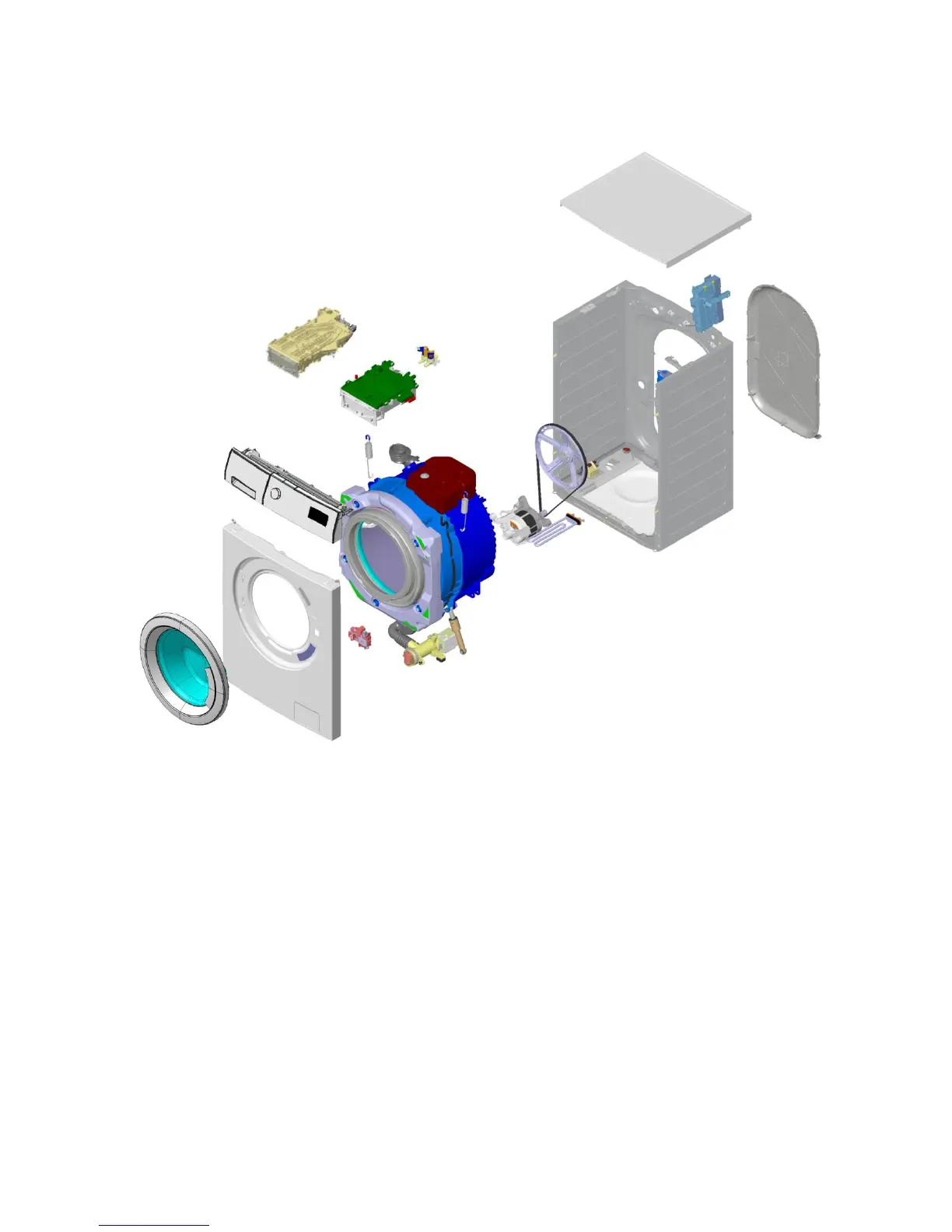

10.1 TC3/TC4 construction characteristics
1. Door
2. Front panel
3. Door Lock
4. Control panels
5. Drain pump and filter unit
6. Shock absorbers
7. Short Detergent dispenser
8. Long detergent dispenser
9. Washing unit suspension springs
10. Front counterweight
11. Solenoid valves
12. Washing unit
13. Top counterweight
14. Analogue pressure switch
15. Resistance
16. Pulley
17. Motor
18. Belt
19. Back unit casing
20. Main electronic circuit board
21. Worktop
22. Back panel
