Technical Support - MDM 82/97 599 76 11-68 Rev. 01

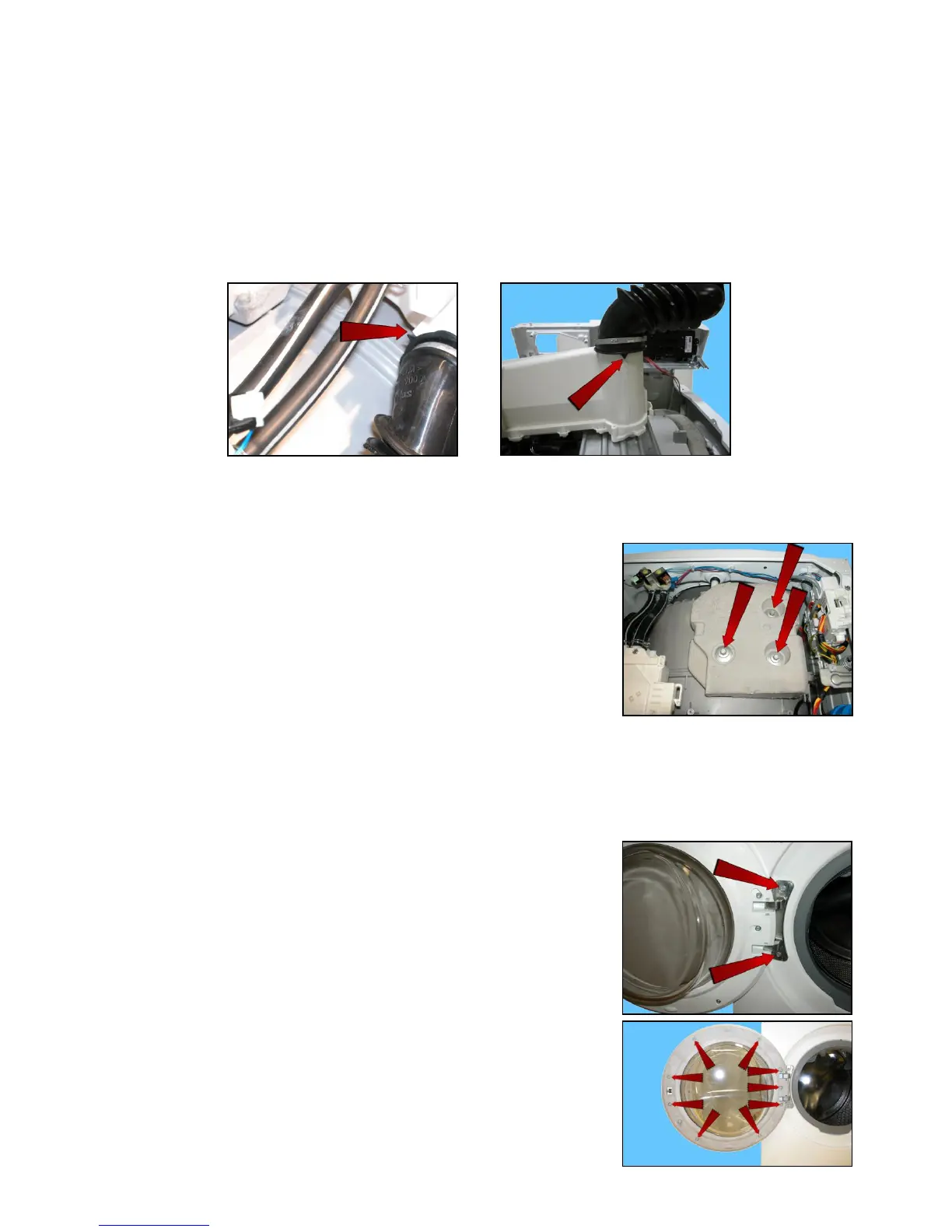

14.2.9 Detergent fill pipe
Remove the worktop (see relevant paragraph).
Remove the detergent tray (see relevant paragraph).
Pull out the pipe from the detergent dispenser after breaking/loosening the
clamp between the detergent dispenser and the detergent loading pipe.
When reassembling, use a new clamp with the same characteristics.
The size of the clamp to use is 65.5 mm.
When introducing the pipe into the dispenser, make sure the two
references are aligned.
Short dispenser Long dispenser
14.2.10 Top counterweight
Remove the worktop (see relevant paragraph).
Remove the three screws that secure it to the welded tub.
When reassembling:
If the tub assembly is new, tighten the screws at a torque of 20 Nm.
If the tub assembly is not new, tighten the screws at a torque of 15 Nm.
14.3 Accessing the front part
1. Door and Door Hinge
2. Door safety interlock
3. Bellow seal
4. Blade
5. Front panel
14.3.1 Door hinge - Door
To replace the hinge, loosen the screws securing it to the cabinet.
To access the door, loosen the screws joining the two front and rear door
frames together.
