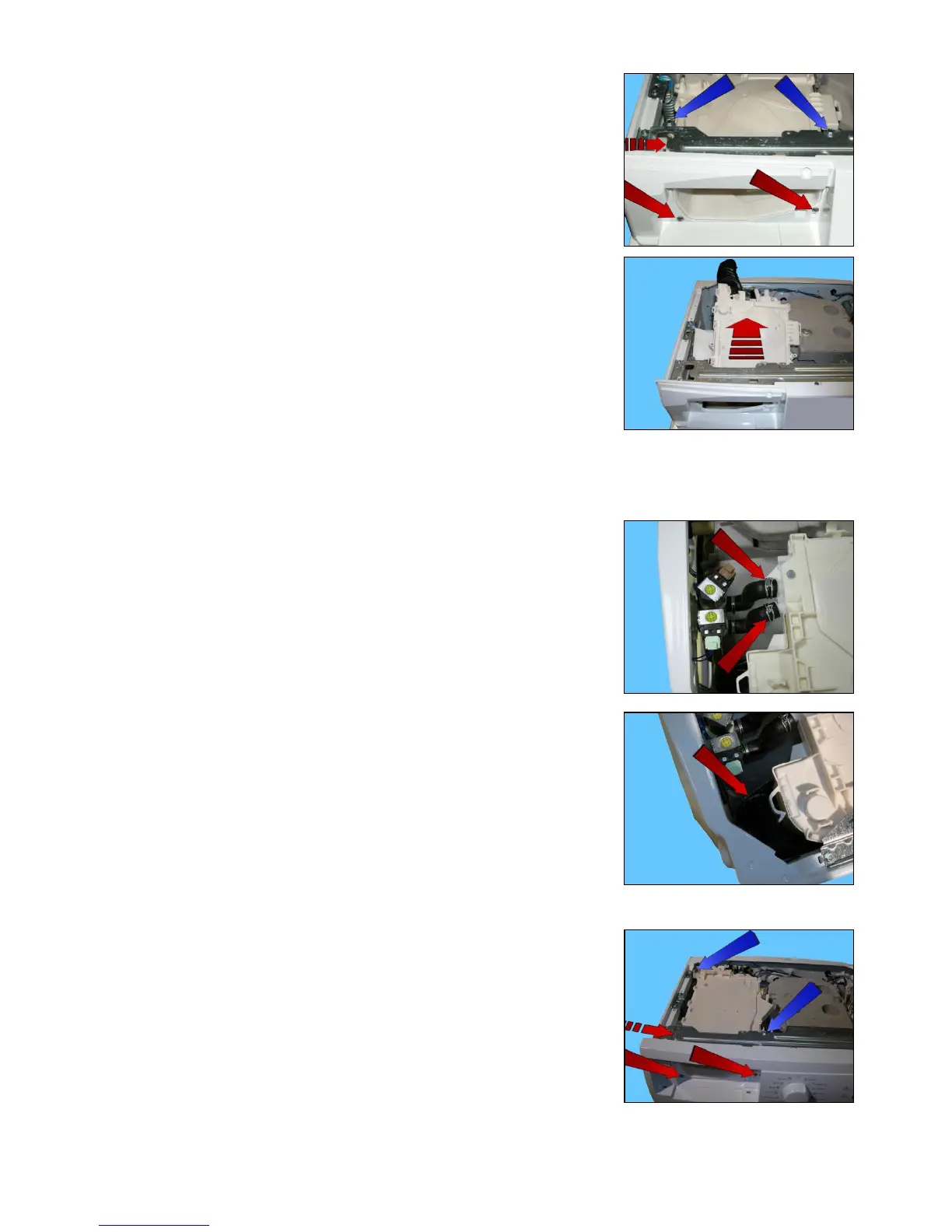

Remove the two screws securing it to the control panel (red arrows).
Remove the two screws securing it to the controls crossbar (light blue arrows).
Release the anchor tab which secures the detergent dispenser to the
crosspiece (dotted arrow).
Remove the detergent dispenser.
14.2.8 Long detergent dispenser
Remove the worktop (see relevant paragraph).
Remove the pipes that connect it to the solenoid valve.
Remove the solenoid valve if necessary - see relevant chapter.
Unfasten the screw in the clamp that fixes the detergent loading pipe
to the tray, and remove it from its housing.
Extract the detergent dispenser.
Remove the two screws securing it to the control panel (red arrows).
Remove the two screws securing it to the controls crossbar (light blue arrows).
Release the anchor tab which secures the detergent dispenser to the
crosspiece (dotted arrow).
