Electrolux EWF1284EDW - EWX13611 General Characteristics

Technical Support - MDM 9/97 599 76 11-68 Rev. 01
3.2 EWX13611 General characteristics
The EWX13611 electronic control system consists of two circuit boards.
In the event of problems with the touch sensors (difficulty selecting/adjusting them), clean and dry the display
and do not wear gloves when setting the chosen programme.

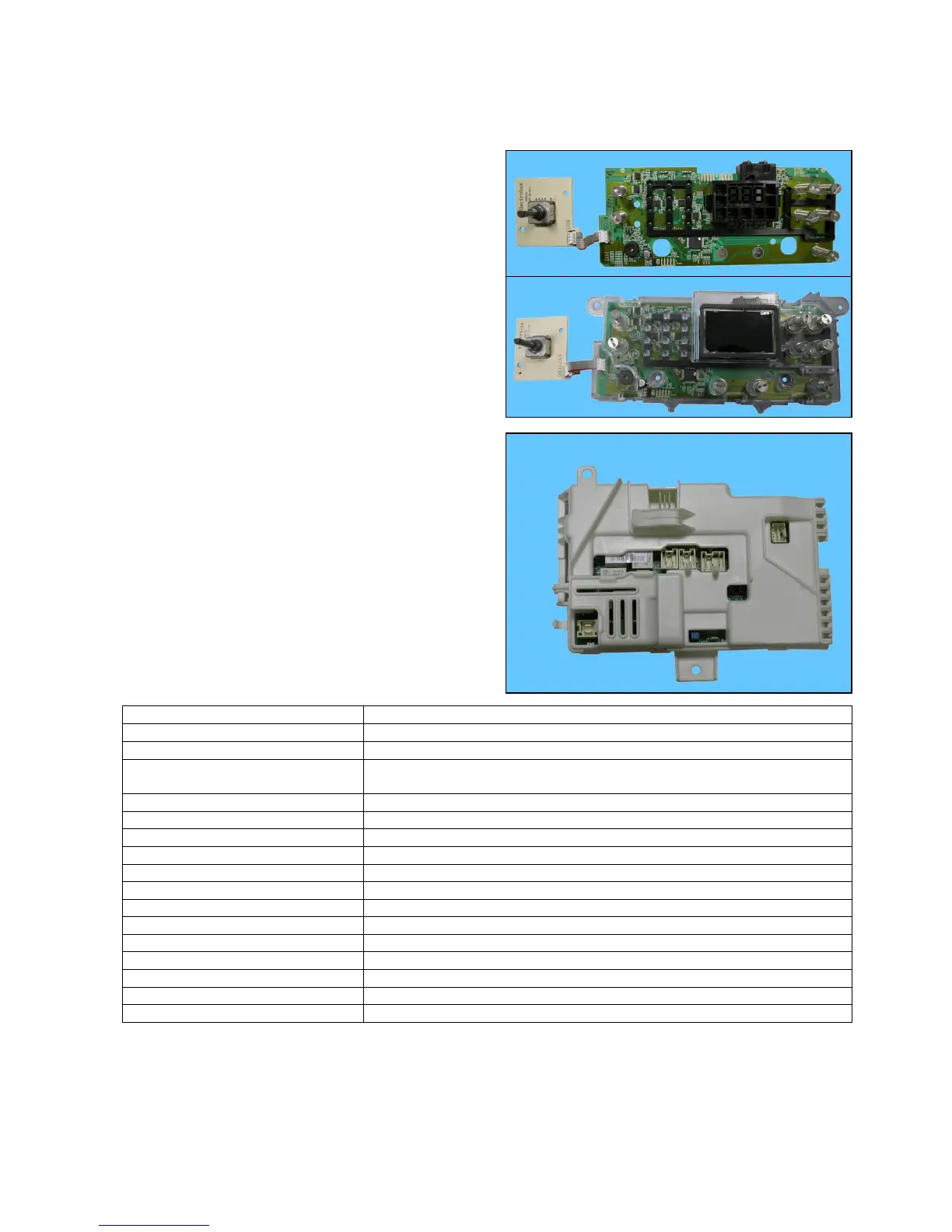

 The control/display circuit board, inserted in a
plastic box, secured to the control panel (the figure
illustrates: the display board with the side socket in
which the selector is fixed, connected together by
a flat cable, and the display board assembly).
 Main board, positioned at the rear of the appliance. It
powers the electrical components and receives
commands from the display board.
No. of touch-sensitive keys
 Maximum 9 (8 options + start/pause)
No. LEDs
 Maximum 27 yellow + 1 red LED + Digit (made up of 22 LEDs)
Programme selector
 15 positions (incorporated in the circuit board)
Power supply voltage
 220/240 V
 50/60 Hz (configurable)
Washing type
 Traditional with “Eco-ball”
Rinsing system
 Traditional with “Eco-ball”
Motor
 Collector, with tachometric generator (Universal)
Spin speed
 1,000 ÷ 1,400 rpm
Anti-unbalancing system
 AGS
Cold water fill
 1 solenoid valve with 1 inlet – 2 outlets
Detergent dispenser
 3 compartments: pre-wash, wash, conditioners
Control of water level in the tub
 Electronic/analogue pressure switch
Door safety interlock
 Traditional (with PTC)
Heating element heat output
 1,950 W with thermal fuses incorporated
Temperature check
 NTC probe incorporated in the heating element
Buzzer
 Traditional incorporated in the PCB
Sensors
 Flowmeter
