Technical Support - MDM 52/97 599 76 11-68 Rev. 01

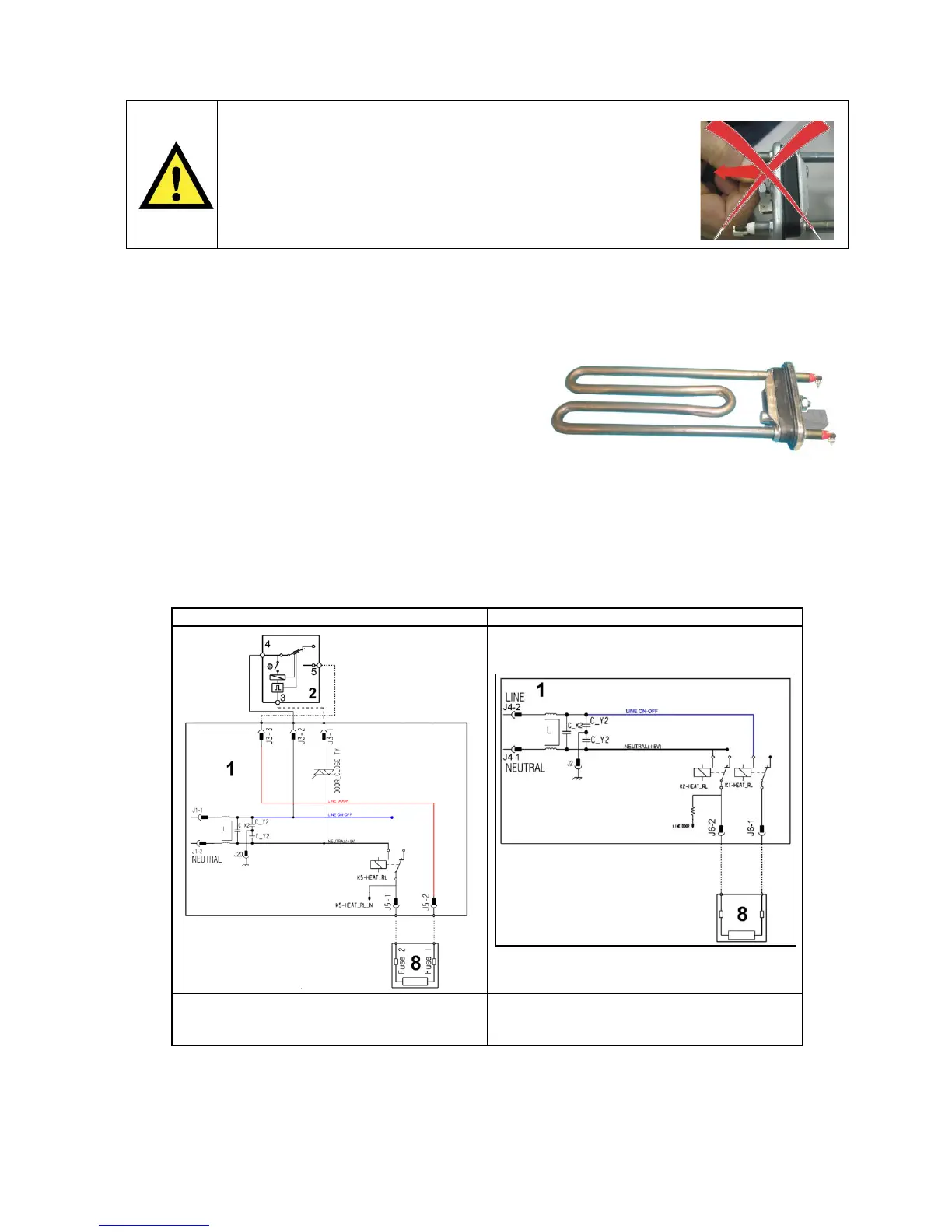

11.4 Heating element
When replacing the heating element, please refer to the code
shown in the list of spare parts relating to the appliance.
It is strictly forbidden to tamper with the heating element in
any way!!!
(e.g. replace the NTC probe, etc...)
11.4.1 General characteristics
1. NTC probe
2. Heating element
The heating element of the washing water is armoured, i.e. it is inserted in sealed tubular stainless steel casing.
It is powered by the relays located on the circuit board. It is fitted with two thermal fuses which trip if the
temperature of the heating element exceeds the values for which they were calibrated.
(In the event of a fault an alarm will be displayed - see table of alarms).
1. Main electronic circuit board
2. Door safety interlock
8. Heating element
1. Main electronic circuit board
8. Heating element
