Technical Support - MDM 89/97 599 76 11-68 Rev. 01

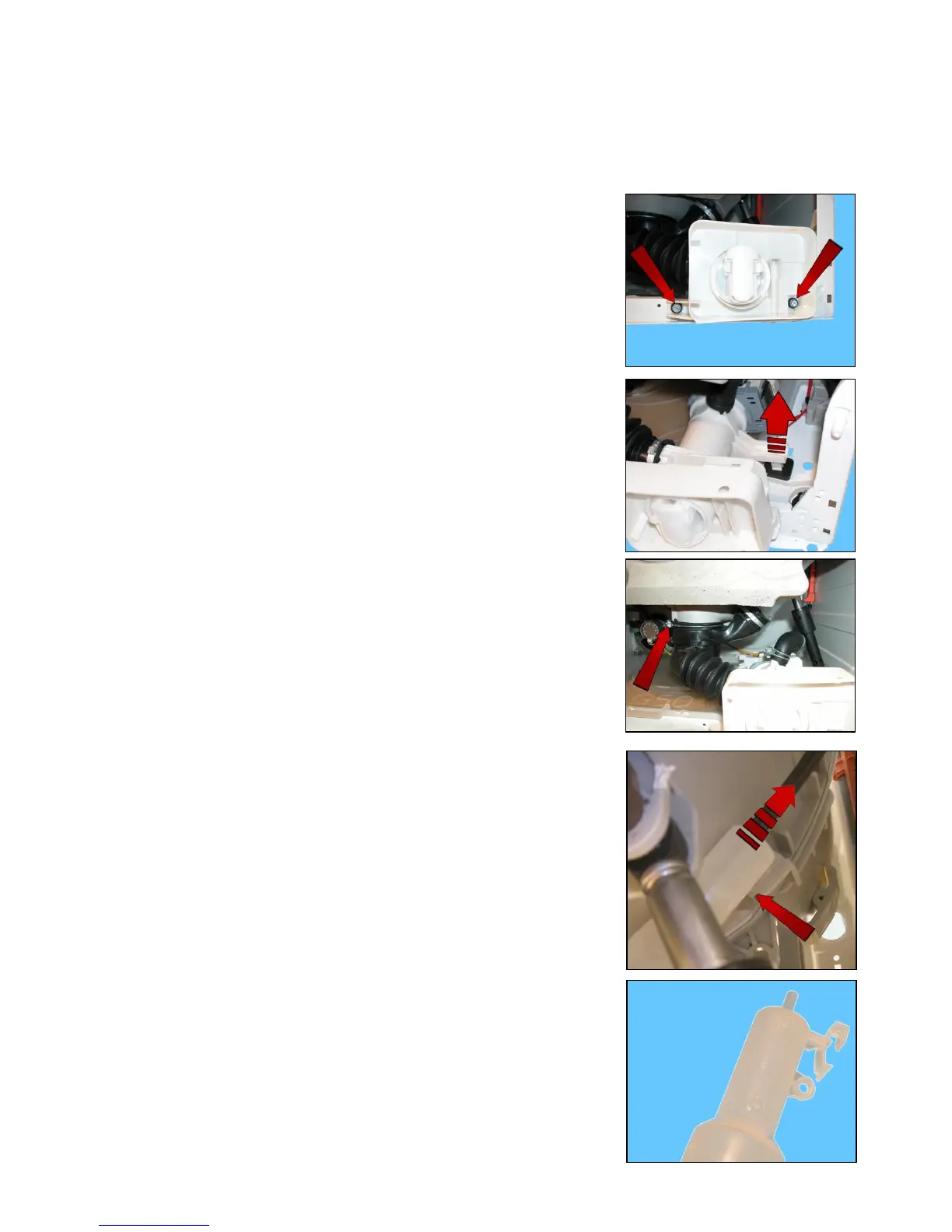

14.4.3.2 Filter body
Remove the worktop (see relevant paragraph).
Remove the control panel (see relevant paragraph).
Remove the iron ring securing the bellow seal to the front panel.
Unfasten the screws securing the door safety interlock (see related paragraph).
Remove the front panel (see relevant paragraph).
Loosen the screws securing it to the front crossbar.
Lift the filter body to extract the support inserted on the side crossbar.
Unfasten the screw in the clamp that fixes the tub drain pipe to the welded
tub and remove it from its position, pulling it out.
Pressure chamber
Pull out the pipe from the analogue pressure switch connecting the
pressure chamber.
Push the hook (1) while at the same time lifting the chamber (2) from
the support securing it to the tub.
Detail of the pressure chamber to be fixed to the welded tub.
If the hook securing the chamber to the welded tub is broken
make use of the eyelet.
Use a screw code 405 50 33-52/8 (AF/2P 5x16 TE/SP must have a
maximum length of 16 mm and without a tip to avoid perforating the tub),
secure the chamber to the tub as shown by the arrow in the photo.
