Electrolux EWF1284EDW - Flowmeter (Where Featured); General Characteristics

Technical Support - MDM 60/97 599 76 11-68 Rev. 01

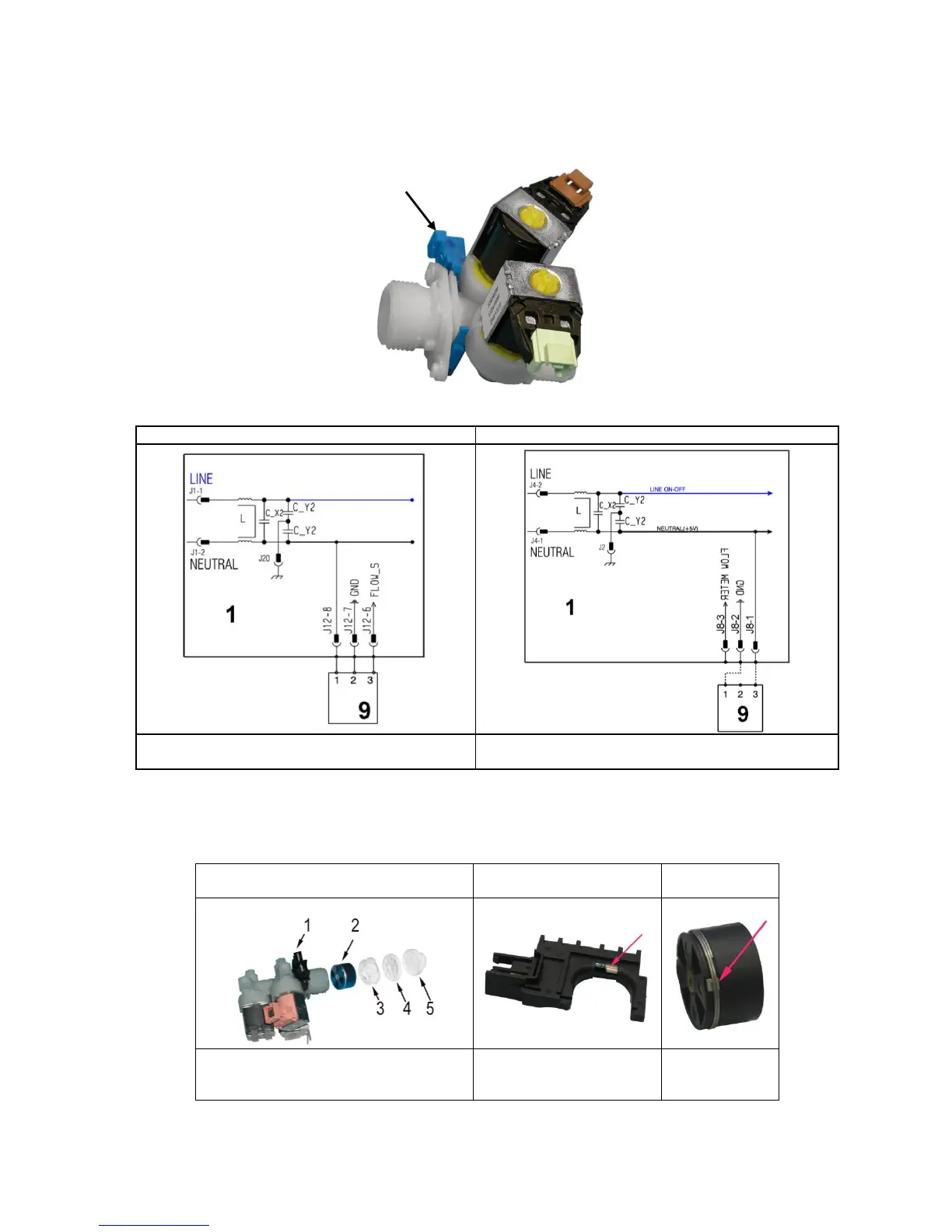

11.10 Flowmeter (where featured)
11.10.1 General characteristics
EWX13611 Diagram
EWM09312 Diagram
1. Main electronic circuit board
9. Flow sensor
1. Main electronic circuit board
9. Flow sensor
Some models of solenoid valves have a built-in flow sensor, which measures the quantity of water in litres
that is loaded into the appliance.
In the event of a sensor failure, the water level is controlled by the analogue pressure switch.
Electronically controlled valve,
exploded view
PCB
Turbine
1-PCB 4-Diffuser
2-Turbine 5-Double filter
3-Deflector
6-Reed contact
7-Magnet
Flowmeter
