14.2.3 Solenoid valve
Remove the worktop (see relevant paragraph).

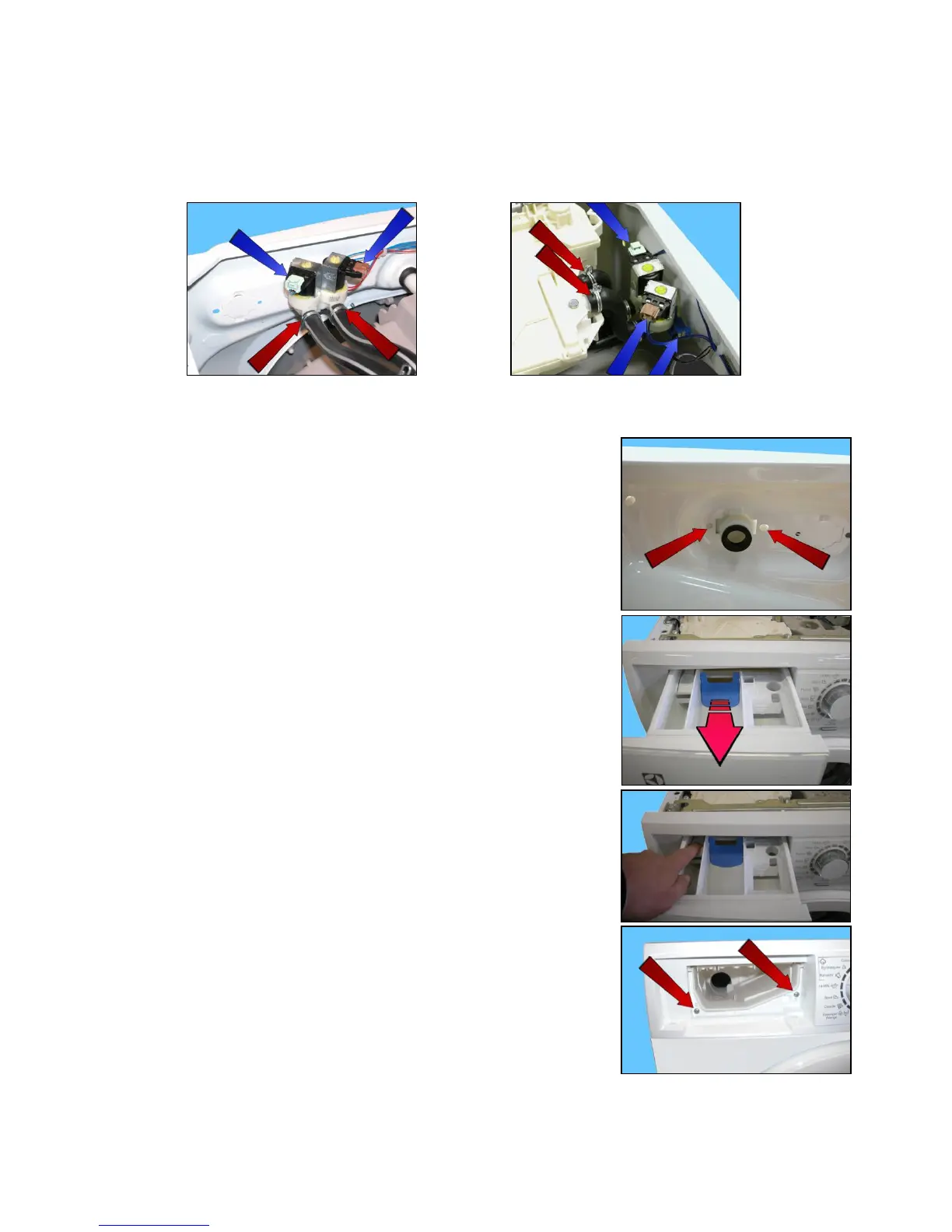

Detach the connectors indicated by the blue arrows.
Pull out the pipes indicated by the red arrows, which connect the solenoid
valve to the detergent dispenser.
Short dispenser Long dispenser
Unscrew the water fill pipe from the solenoid valve.
Push the two retainers indicated by the arrows towards the inside
of the appliance.
At the same time, turn the solenoid valve clockwise to remove it.
14.2.4 Control panel
Remove the worktop (see relevant paragraph).
Pull the detergent dispenser out and at the same time press the stop locking
it in place.
Loosen the screws that attach the control panel to the detergent tray.
