10.2 Short detergent dispenser

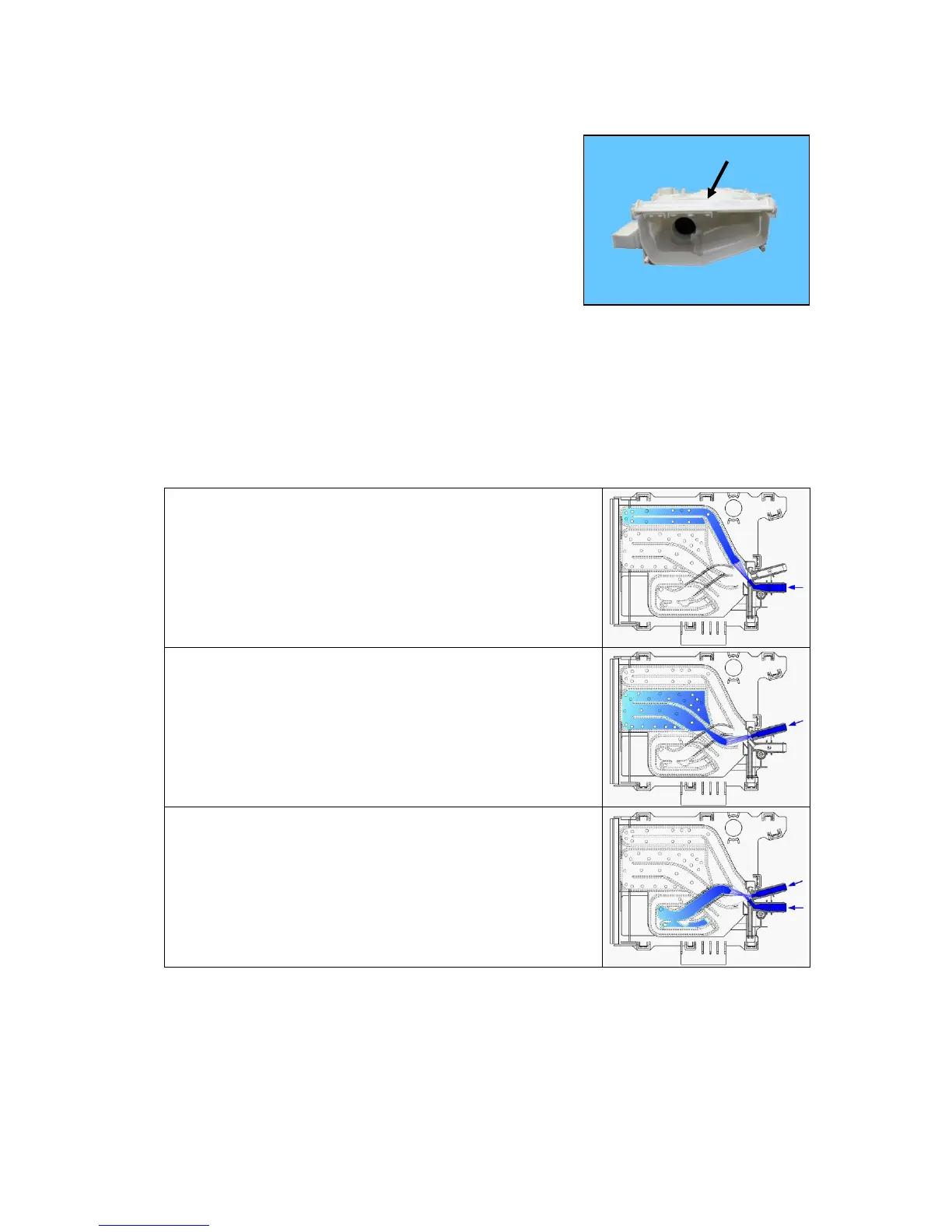

Operating principle.
Water fill to pre-wash compartment
(pre-wash solenoid)
This solution is used with the three compartment tray: the
detergent in compartment “a” is loaded at the start of the
pre-wash phase.
Alternatively, in some models with the “stains” option,
compartment “a” can be used for the stain remover, which
is loaded during the wash phase.
Water fill to wash compartment
(wash solenoid)
In all models: compartment “b” is used to contain the
detergent, which is loaded at the start of the wash cycle.
Water fill to conditioner compartment
(pre-wash and wash solenoid valves)
In all models: compartment “c” is used for the conditioner,
which is loaded at the start of the final rinse: the pre-wash
and wash solenoids are activated simultaneously.
