14.6 Accessing the rear part
14.6.1 Back panel

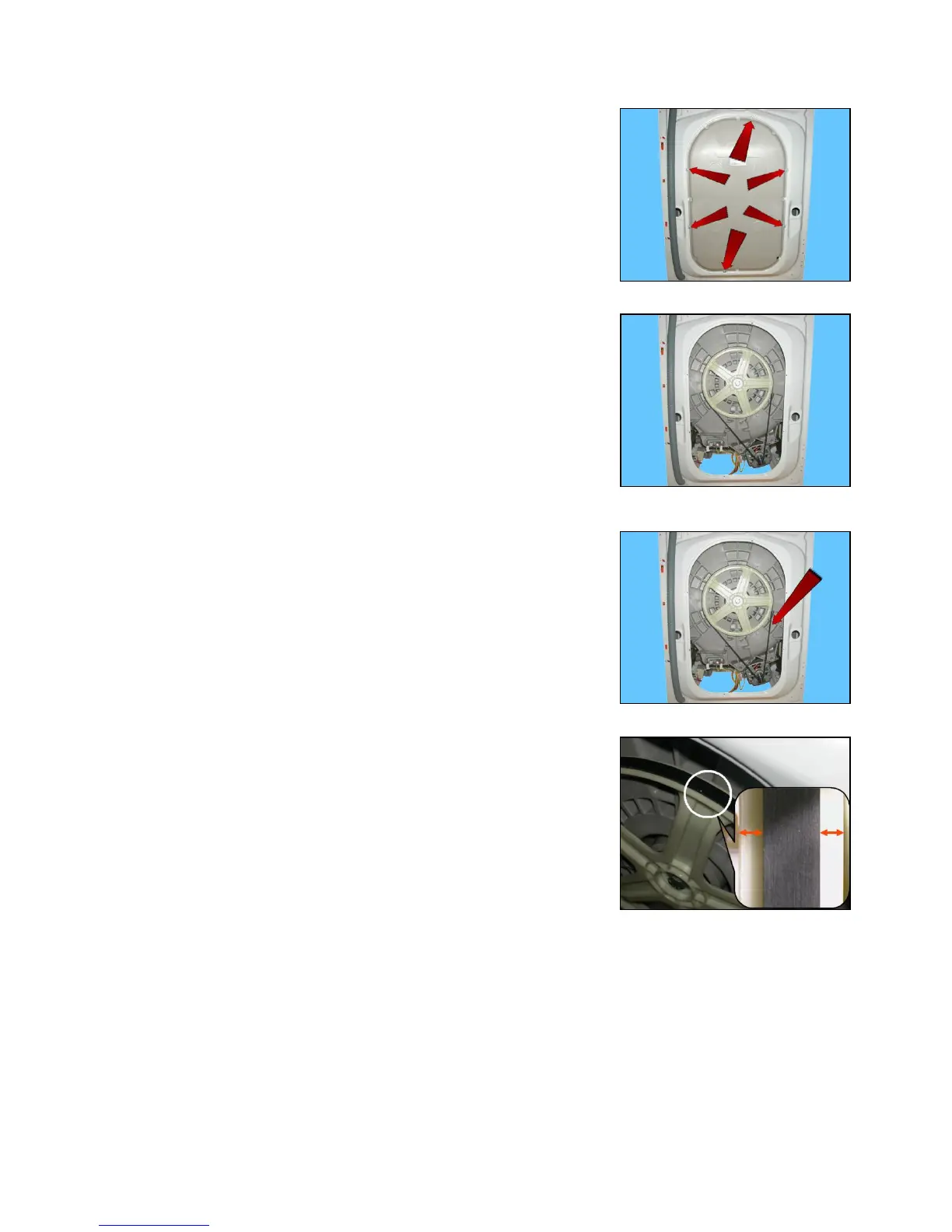

Loosen the screws that fix it to the cabinet.
14.7 From the back panel, you can access
1. Belt
2. Plastic pulley ( 273 mm)
3. Motor
4. Resistance
5. Shock absorber
14.7.1 Belt
Remove the back panel (see relevant chapter).
Hold the belt, and by turning the pulley, remove it.
When reassembling:
Position the belt and align it with the centre of the pulley ( 273 mm)
as shown in the figure.
Turning the pulley, check that the belt positions itself and remains in
the central part of the pulley.
