Technical Support - MDM 94/97 599 76 11-68 Rev. 01

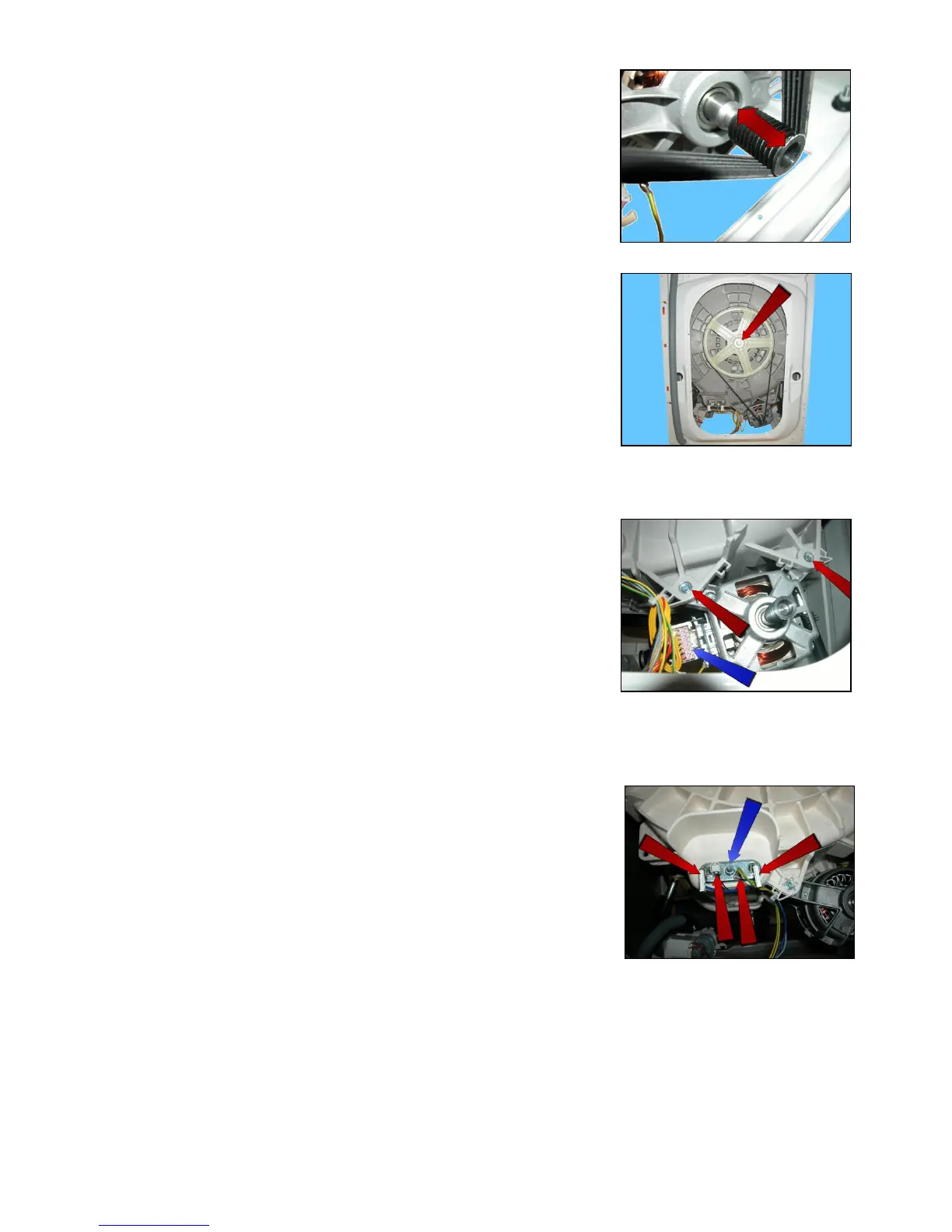

If necessary, adjust the position of the belt on the drive pulley, so that
it is correctly positioned.
14.7.2 Plastic pulley ( 273 mm)
Remove the back panel (see relevant chapter).
Remove the belt (see relevant paragraph).
Insert a retainer to secure the pulley in place.
Unfasten the screw securing the pulley to the drum shaft.
Tighten the screw at a torque of 60 Nm.
14.7.3 Motor
Remove the back panel (see relevant chapter).
Remove the belt (see relevant paragraph).
Loosen the two front fastening screws (1) and the rear ones (not visible
in the figure).
Disconnect the connectors (2): for the power supply and earthing.
When reassembling, restore the connections.
If the clamp securing the wiring to the motor breaks, replace it with a new one.
Tighten the screws at a torque of 5 Nm.
14.7.4 Resistance
Remove the back panel (see relevant chapter).
Disconnect the connectors of the heating element (1), NTC probe (2) and
earth (3) red arrows.
Unscrew the nut (blue arrow) and remove the heating element from its seat.
Tighten the nut at a torque of 4 Nm.
