Technical Support - MDM 95/97 599 76 11-68 Rev. 01

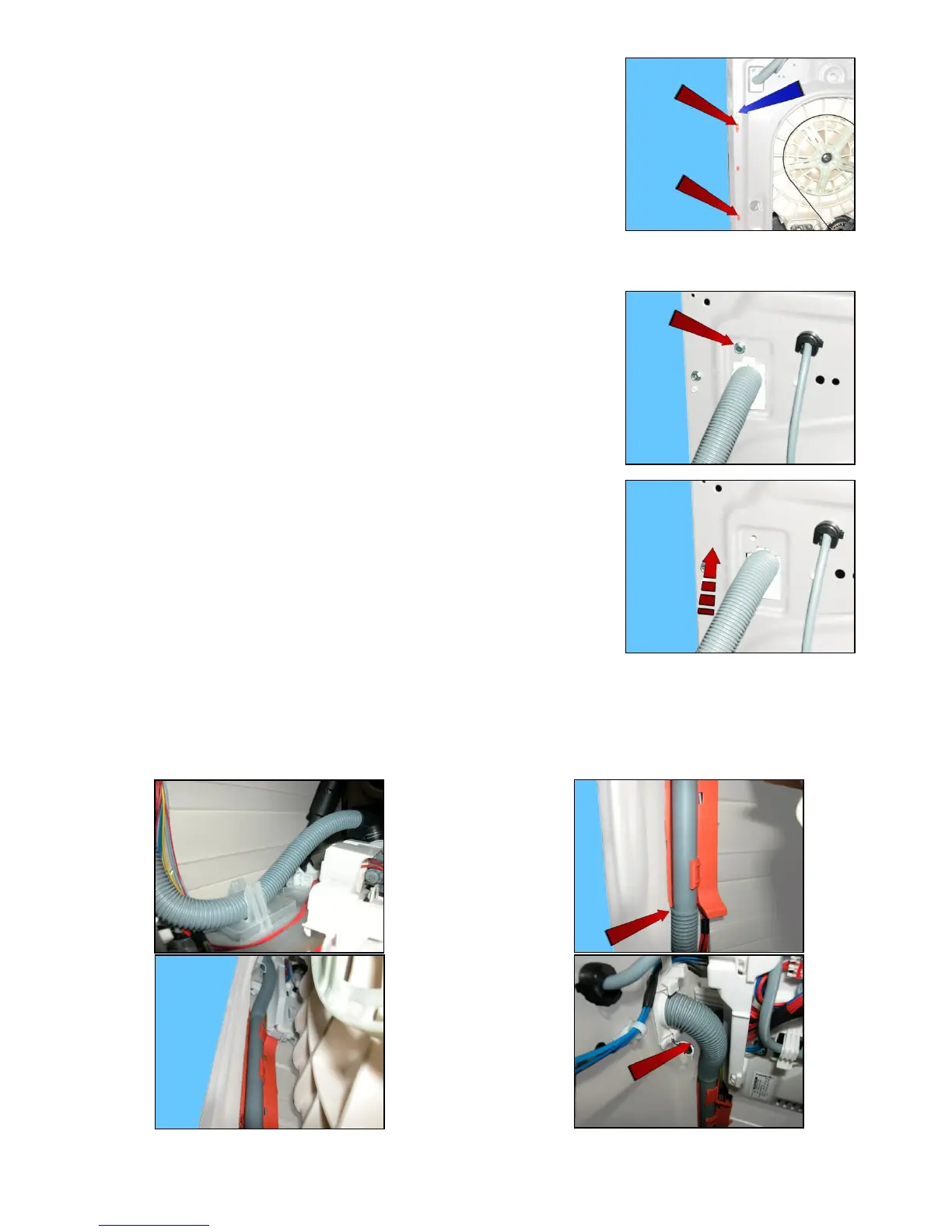

14.7.5 Drain pipe/wiring support
When fixing the drain pipe/wiring support make sure that the two stops
(indicated by the red arrows) fit into their housings, locking the support
to the unit.
If the fixing is not stable and there is a risk of it coming out of its position,
fasten the support to the unit with a screw (3.5x6.5 mm) screwed into the
hole indicated by the blue arrow.
14.7.6 Drain pipe fastener
Loosen the screw that secures it to the cabinet.
Push it towards the inside while lifting it.
14.7.7 Main drain pipe
Arrange the drain pipe as shown in the figures.
