Electrolux EWF1284EDW - Page 30

Technical Support - MDM 30/97 599 76 11-68 Rev. 01

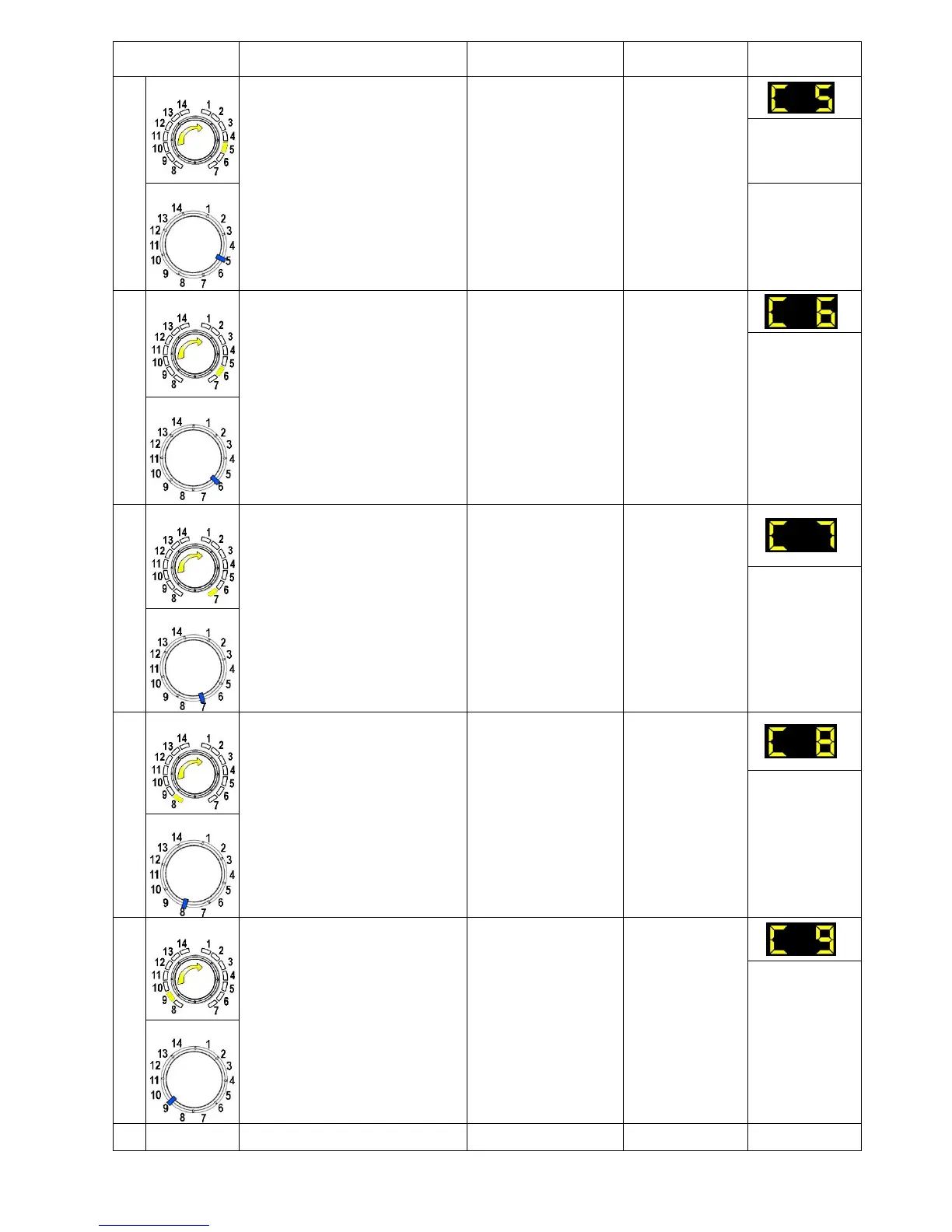

Selector
position
Components activated
Working conditions
Function tested
LCD display
5
TC3
- Door safety interlock
- Third solenoid valve
Door closed
Water level below
anti-flooding level
Maximum time 5 min.
Water fill to third
solenoid valve
compartment
Water level in
the tub is
displayed (mm)
TC4
6
TC3
- Door safety interlock
- Fourth solenoid valve
(hot water where featured)
Door closed
Water level below
anti-flooding level
Maximum time 5 min.
Water fill to fourth
solenoid valve
compartment
Water level in
the tub is
displayed (mm)
TC4
7
TC3
- Door safety interlock
- Wash solenoid, if the water in
the tub is not enough to cover
the heating element
- Heating element
- Weight sensor (if there is one,
an extra litre of water is loaded)
- Recirculation pump
Door closed
Water level above
the heating element
Maximum time 10 min.
up to 90°C (*)
Heating
Circulation
Temperature in
°C measured
using the NTC
probe
TC4
8
TC3
- Door safety interlock
- Wash solenoid, if the water in
the tub is not enough to cover
the heating element
- Motor (55 rpm clockwise,
55 rpm anti-clockwise,
250 rpm pulse)
Door closed
Water level above
the heating element
Check for leaks
from the tub
Drum speed
in rpm/10
TC4
9
TC3
- Door safety interlock
- Drain pump
- Motor up to 650 rpm then
at maximum spin speed (**)
Door closed
Water level lower
than anti-boiling level
for spinning.
Drain, calibration
of analogue
pressure switch
and spin
Drum speed
in rpm/10
TC4
10
-----
-----
-----
-----
-----
