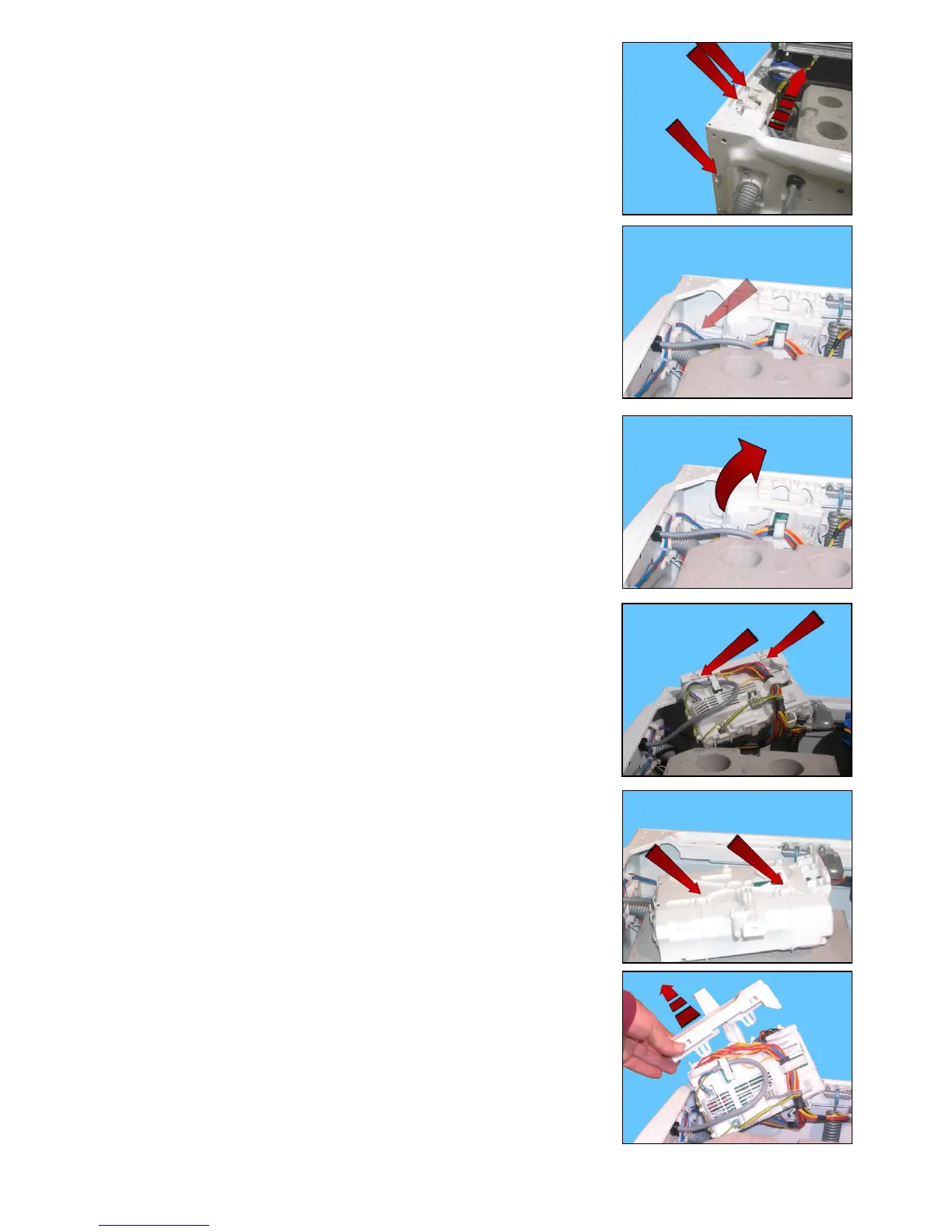

Unfasten the three screws securing it to the cabinet.
Move it in the direction of the dotted arrow.
Place the wiring in front of the hook securing the board to the back panel.
Lift the board assembly as shown by the arrow in the figure.
Disconnect the hooks fixing the connector protection on one side,
then the other.
Remove the connector protection.
