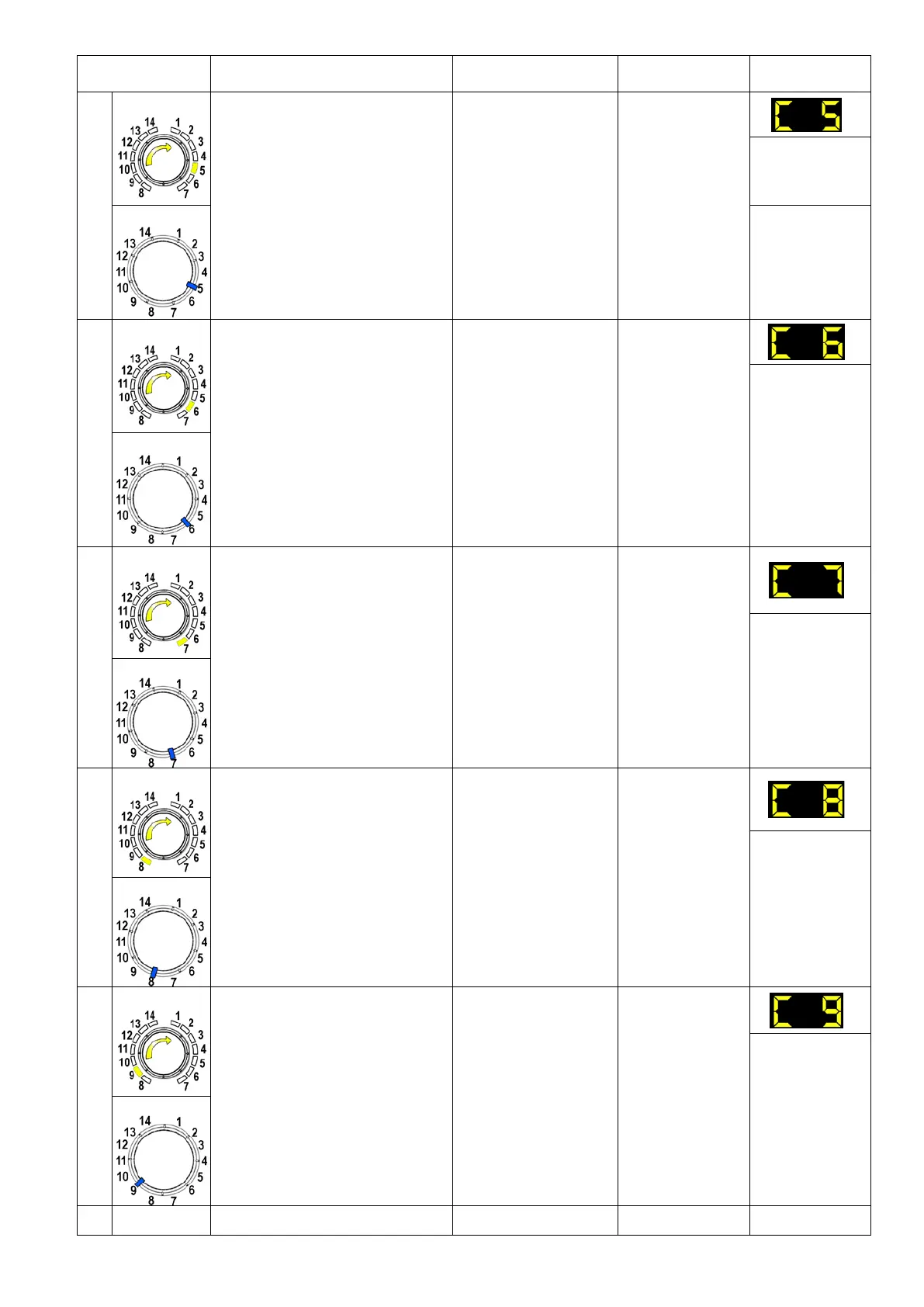

Electrolux EWX13611 - Page 36

Selector
position
Components activated Working conditions Function tested LCD display
5
TC 3-2
- Door safety interlock
- Third solenoid valve
Door closed
Water level below
anti-flooding level
Maximum time 5 min.
Water fill to third
solenoid valve
compartment
Water level
in the tub is
displayed (mm)
TC 4
6
TC 3-2
- Door safety interlock
- Fourth solenoid valve
(hot water where featured)
Door closed
Water level below
anti-flooding level
Maximum time 5 min.
Water fill to fourth
solenoid valve
compartment
Water level
in the tub is
displayed (mm)
TC 4
7
TC 3-2
- Door safety interlock
- Wash solenoid valve, if the
water in the tub is not enough
to cover the heating element
- Heating element
- Weight sensor (if there is one,
an extra litre of water is
loaded)
- Circulation pump
Door closed
Water level above
the heating element
Maximum time
10 min. up to 90°C (*)
Reheating
Circulation
Temperature
in °C measured
using the NTC
probe
TC 4
8
TC 3-2
- Door safety interlock
- Wash solenoid valve, if the
water in the tub is not enough
to cover the heating element
- Motor (55 rpm clockwise,
55 rpm anti-clockwise,
250 rpm pulse)
Door closed
Water level above
the heating element
Check for leaks
from the tub
Drum speed
in rpm/10
TC 4
9
TC 3-2
- Door safety interlock
- Drain pump
- Motor up to 650 rpm then at
maximum spin speed (**)
Door closed
Water level lower
than anti-boiling level
for spinning
Drain, calibration
of analogue
pressure switch
and spin
Drum speed
in rpm/10
TC 4
10
----- ----- ----- ----- -----
Technical Support - DMM 36/124 599 75 58-67 Rev.04
